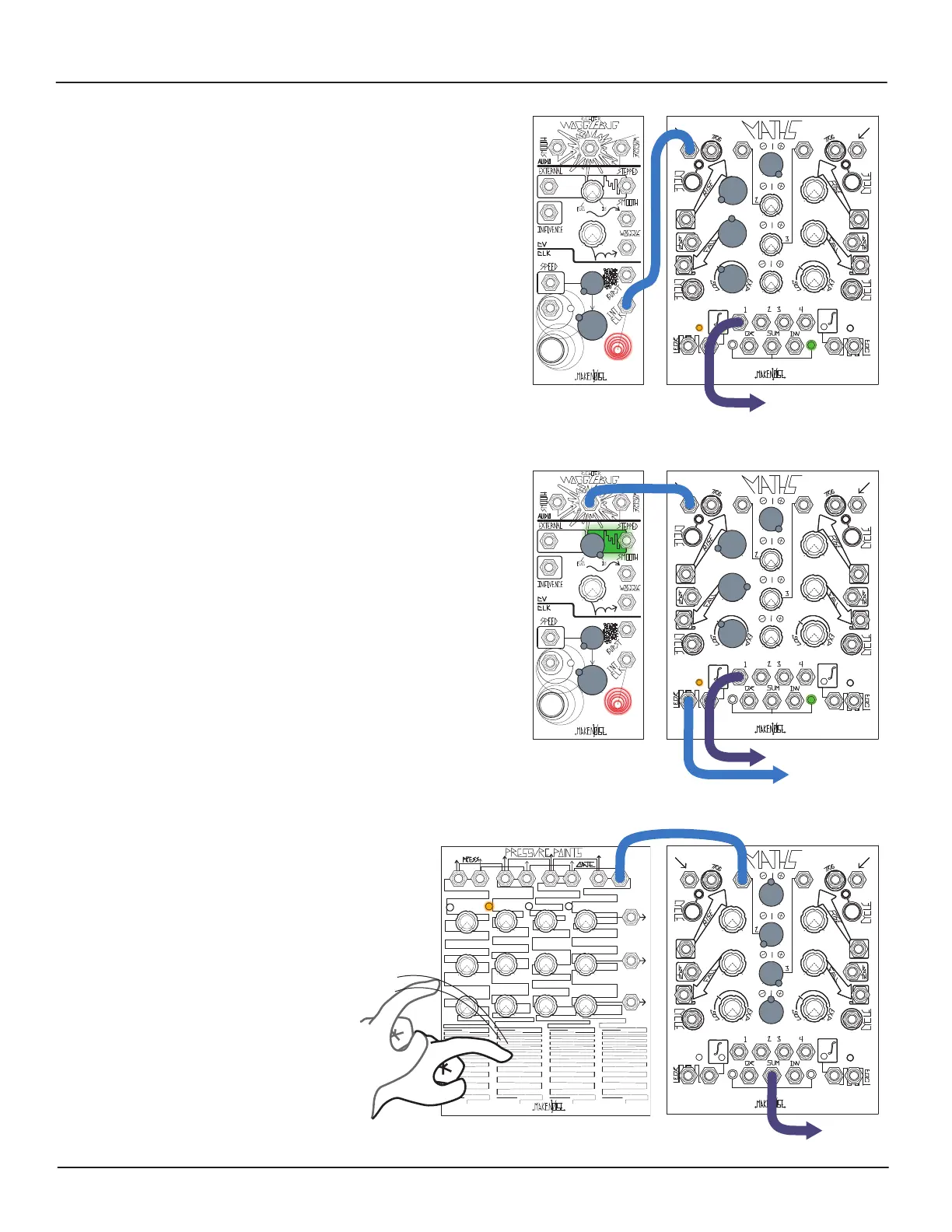

Voltage Controlled Sustained Function Generator (A/S/R EG)
A gate applied to the Signal Input of CH. 1 or 4 starts the function
which Rises from 0V to the level of the applied Gate, at a rate
determined by the Rise parameter, Sustains at that level until the
Gate signal ends, and then falls from that level to 0V at a rate
determined by the Fall parameter. Rise and Fall are independently
voltage controllable, with variable response as set by the
Vari-Response panel Control. The resulting function may be further
processed with attenuation and/ or inversion by the Attenuverter.
Peak Detector
Patch signal to be detected to CH. 1 Signal Input. Set Rise and Fall to
3:00. Take output from Signal Output. Gate Output from EOR Output.
Voltage Mirror
Apply Control Signal to be mirrored To CH. 2 Signal
Input. Set CH. 2 Attenuverter to Full CCW. With nothing
inserted at CH. 3 Signal Input (so as to generate an
oset), set CH. 3 Attenuverter to full CW. Take output
from SUM Output.
Patch Ideas: Analog Signal Processing, Voltage MATHS!
17
