Panel Controls

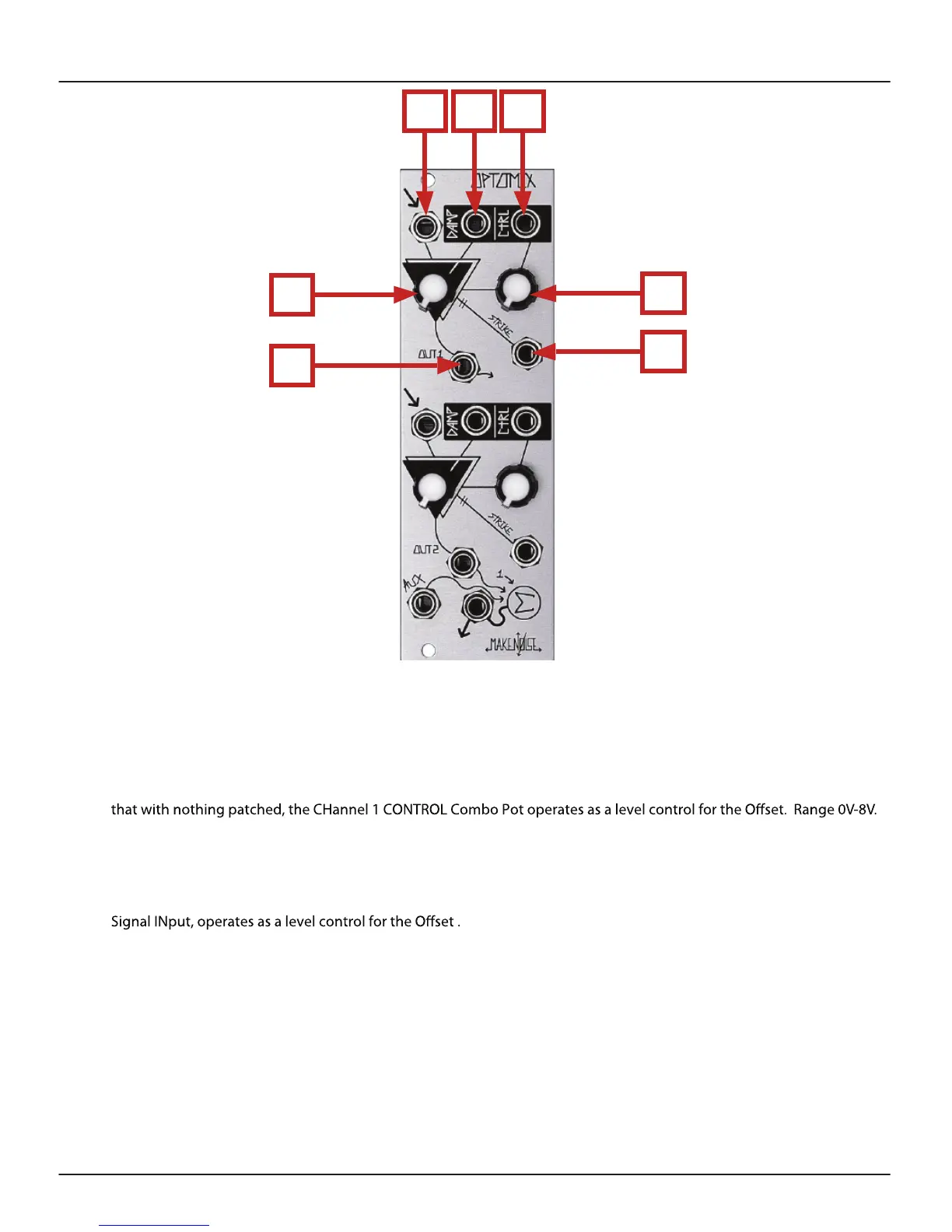

1. CHannel 1 Signal INput: Direct-coupled signal input capable of accepting audio or control signals. Range of up to 10Vpp.
2. CHannel 1 DAMP CV INput: CV input for the CHannel’s DAMPing parameter, now capable of accepting audio or control
signals. Normalized to +8V so that with nothing patched, the CHannel 1 DAMP Combo Pot operates as a manual control
for the parameter. Range 0V-8V.
3. CHannel 1 CONTROL INput: Direct coupled, highly-sensitive CV input for the CHannel’s vactrol VCA. Normalized to +8V so
4. CHannel 1 DAMP Combo Pot: Unipolar attenuator for DAMP CV INput. With nothing patched to the DAMP CV INput,
operates as a manual control for the DAMP parameter.
5. CHannel 1 Combo Pot: Unipolar attenuator for CONTROL Signal INput. With nothing patched to the CHannel 1 Control
6. CHannel 1 Signal OUT: Output of the signal applied to the CHannel 2 input, as processed by the LPG. 10Vpp (depending
upon settings and source material).
7. CHannel 1 STRIKE INput: Gate INput for striking or plucking the vactrol. Expects 8V Gate.
