Technical Specifications of the Select Bus
// ************ SELECT BUS MESSAGES: *********************************
// 0xC0 followed by a single State # 0 thru 63. This is "State Select" message.
// 0xF4 followed by a single State # 0 thru 63. This is "State Save" message.
// 0xF4 - 0x40 This is "Save All" message.
// note: 0xF0 is start-of-message marker.
// note: 0xF7 is end-of-message marker.
// note: 0x00 0x02 0x2D is MakeNoise Select Bus ID
// note: 0xST is State number.
// 0xF0 0x00 0x02 0x2D 0x00 0xST 0xF7 where 0 <= ST <= 0x3F. This is "MESH OFF"
// 0xF0 0x00 0x02 0x2D 0x01 0xST 0xF7 where 0 <= ST <= 0x3F. This is "MESH ON"
// 0xF0 0x00 0x02 0x2D 0x02 0xF7 This is "DEFLOAD"
// 0xF0 0x00 0x02 0x2D 0x03 0xF7 This is "REVERT"
//

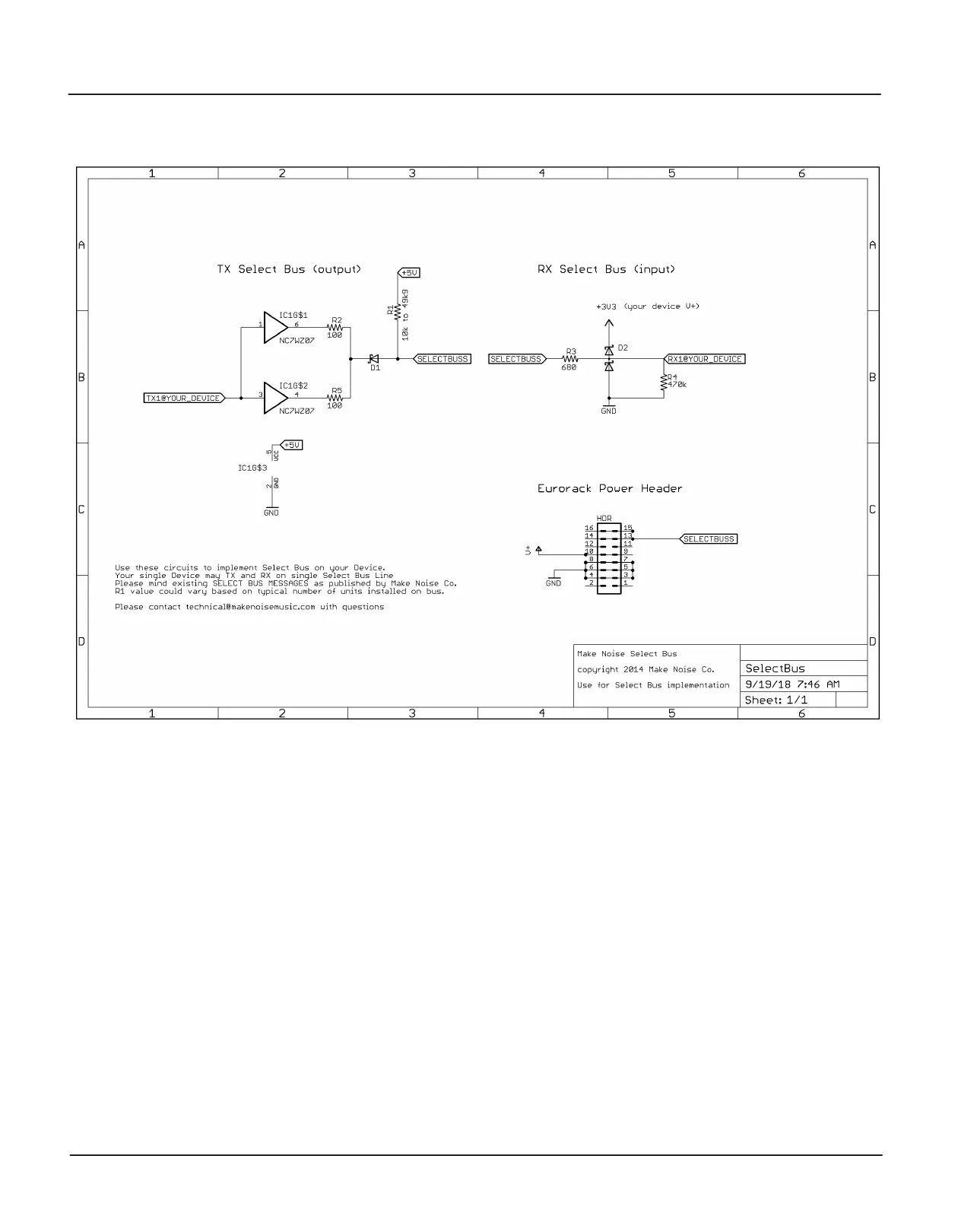

// Select Bus is ACTIVE LOW! Refer to published schematic for proper circuit and load.
// Baud Rate 31250 bps
// ************ END OF SELECT BUS MESSAGES. **************************************
