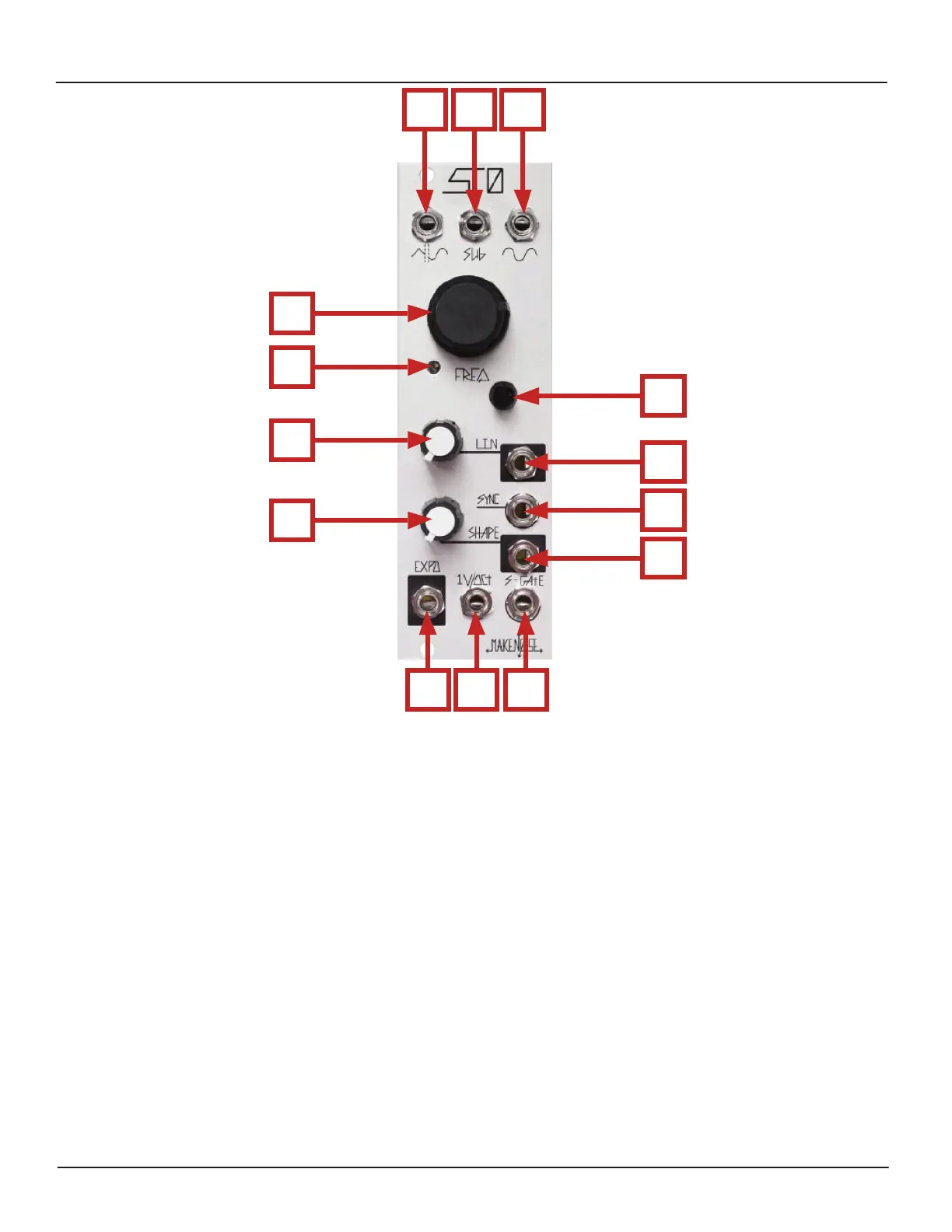

STO Panel Controls
1. Variable Shape Waveform Output: 10Vpp
2. Sub-Oscillator Output: 12Vpp
3. Sine Waveform Output: 10Vpp
4. Coarse Tune panel control: 9 octave range 8hz-4khz
5. 1V/Octave Scale Trimmer (Calibration Use Only))
6. Fine Tune panel control: +/-2.5 semi-tone range
7. Linear FM Level: uni-polar attenuator for Linear FM input
8. Linear FM Input: AC coupled, 10V range
9. Variable Shape: Ripples Even and Odd harmonics. With nothing patched to Variable Shape CV Input, works as standard panel
control. With Signal Patched to Variable Shape CV Input, works as an attenuatr for that signal.
10. Variable Shape CV Input: Direct Coupled uni-polar control signal input, range 0V to +8V
11. Expo Input: Exponential frequency control input. Bi-polar, 10V range
12. 1V/Octave control Input: bi-polar pitch control, optimal range +/-5V
13. S-Gate: Resets and turns Sub-Oscillator ON at Gate High, turns O at Gate Low. Just about any signal that exceeds 1V
work here.
14 SYNC: Resets Oscillator Core. Just about any 10Vpp audio rate signal works here.
