18
M2 ASSEMBLY GUIDE
STEP 1

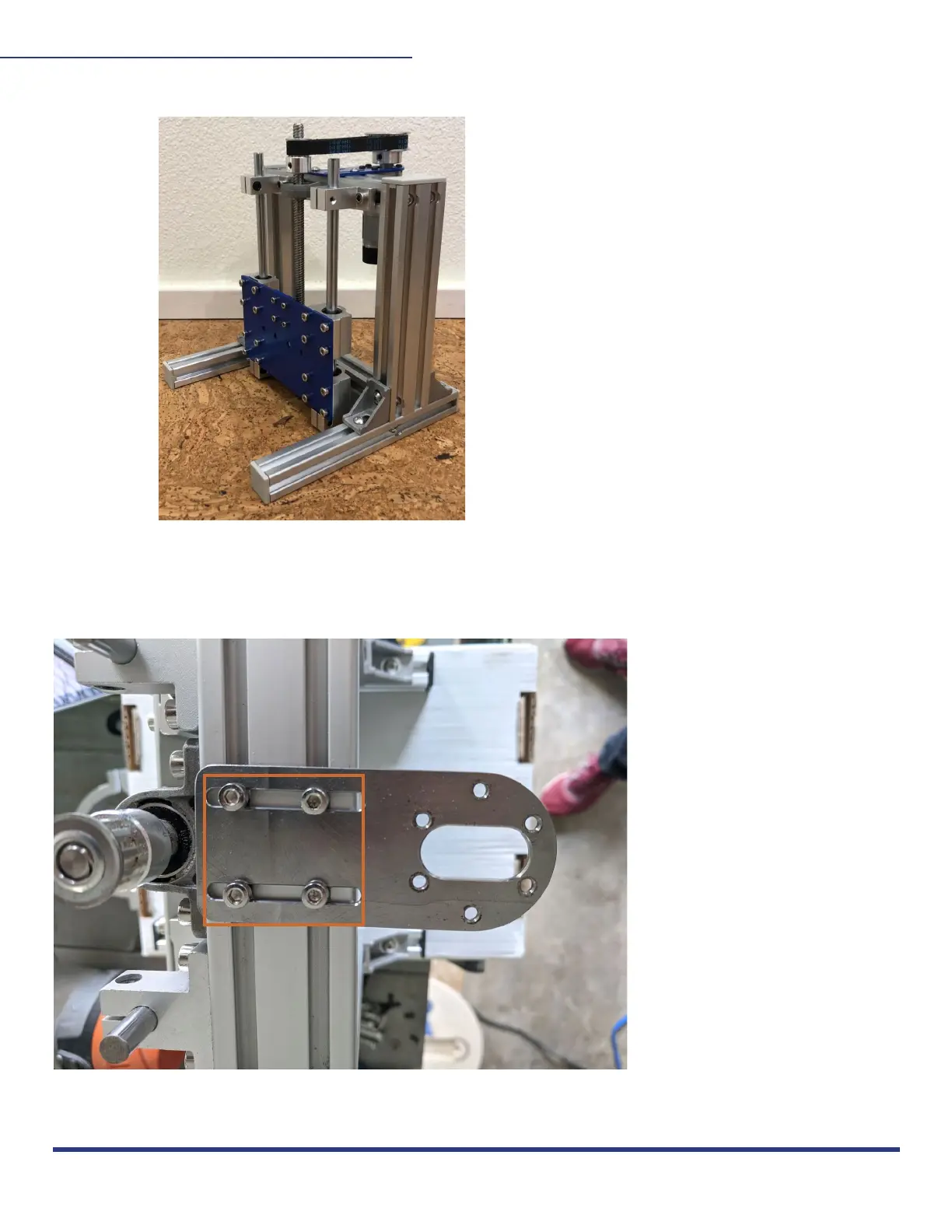

Attach Z-Axis Motor Bracket, but don’t fully tighten (will tighten fully when belt is attached).
The photo shows socket heads, but the ACTUAL screw is a button head.
1. FINISH Z AXIS ASSEMBLY
Button Head Screw
M4-0.7x16mm
In this photo is a fully assembled Z-axis
assembly. Follow the instructions to
complete on your own.
Bag H
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
