19
M2 ASSEMBLY GUIDE

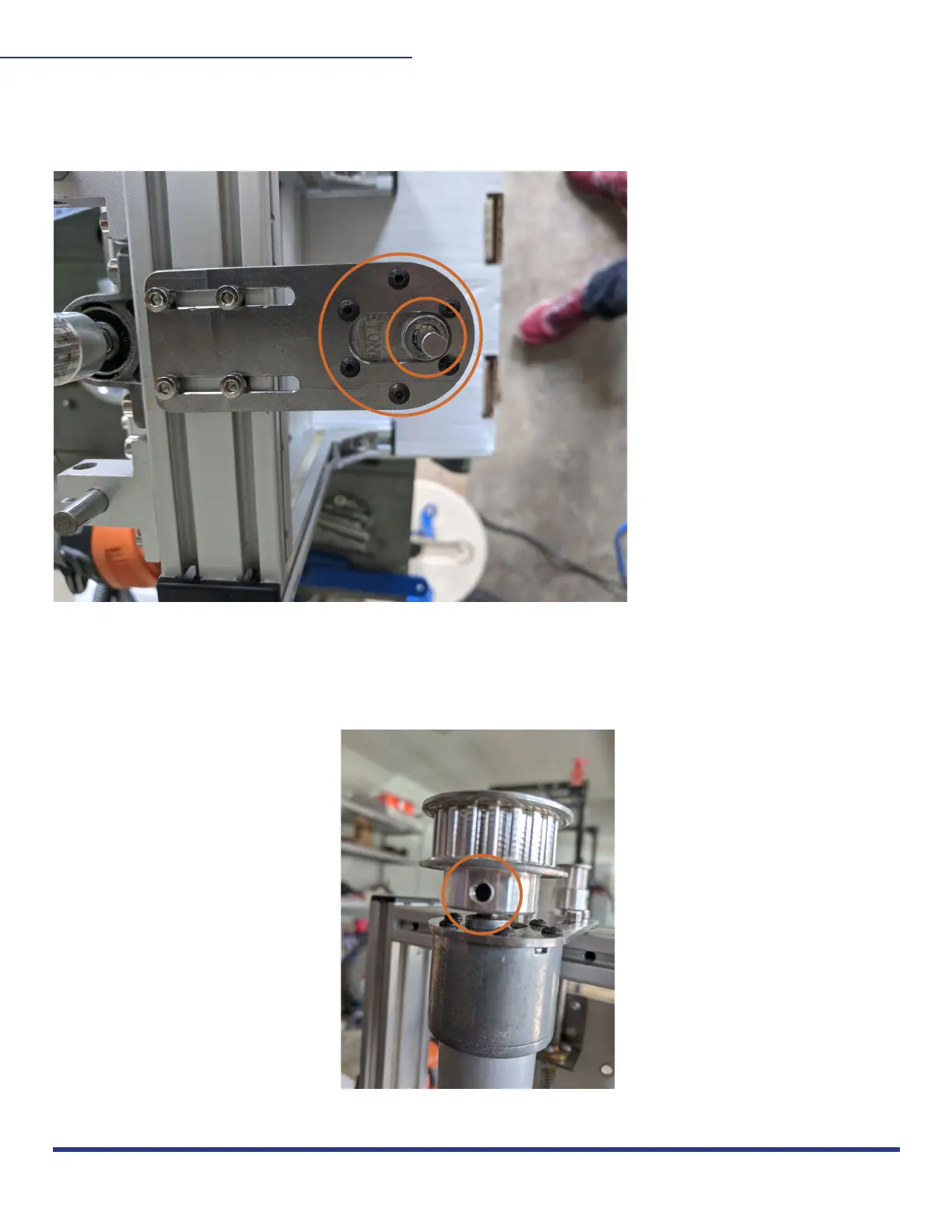

STEP 2
Attach Z Motor to bracket. Note which side of the slot the motor is on. Make sure to mount on
the right side as shown.
Button Head Screw
M5-0.8x8mm
Bag with Belt
STEP 3
Attach gear to motor, ensure one grub screw is on flat side of motor shaft. Make sure to use 2
grub screws when mounting.
Grub Screw (Set Screw)
M5-0.8x8mm
Bag with Belt
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
