20
M2 ASSEMBLY GUIDE
STEP 4

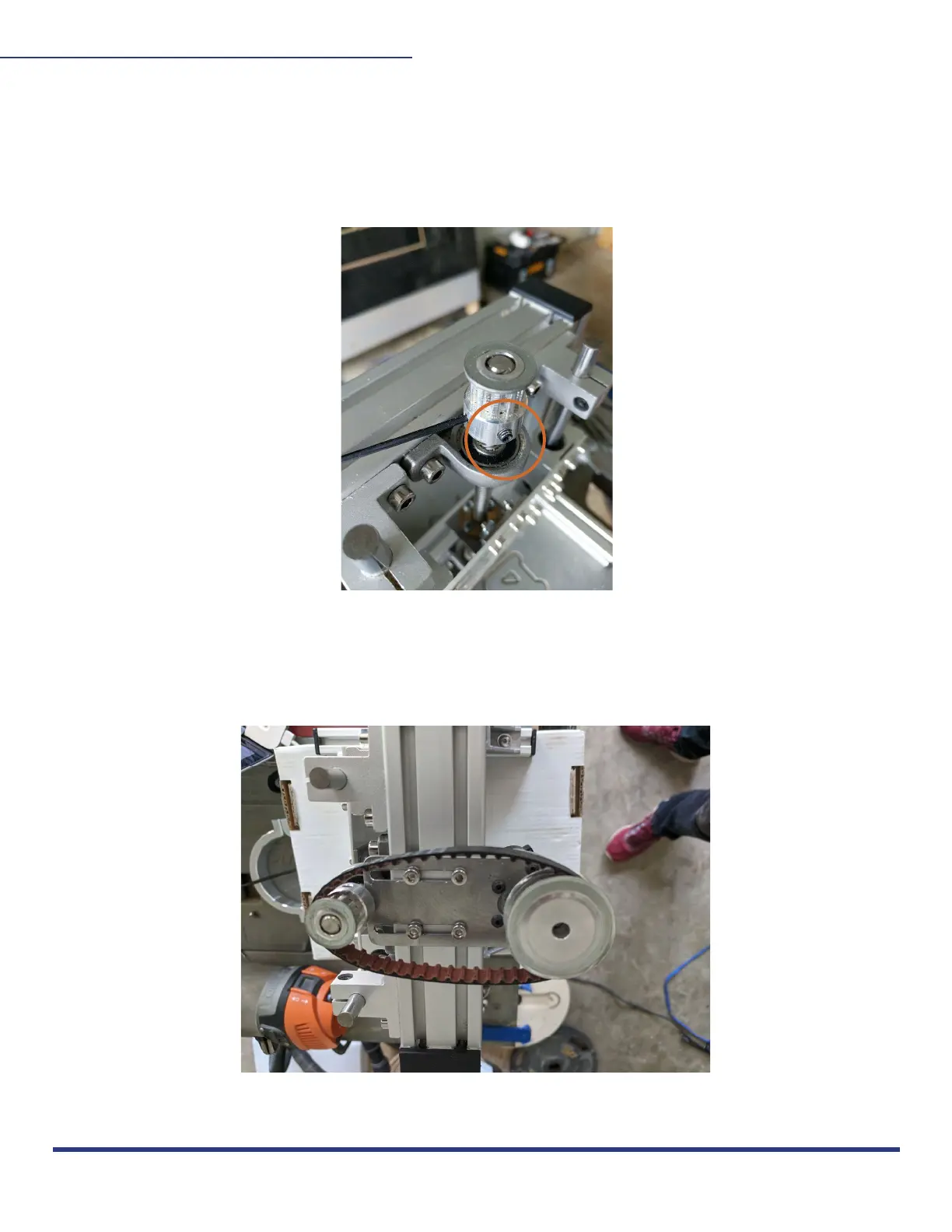

Attach Z axis gear on top of lead screw, ensure grub screw is tightened on flat side and gear
is flush with top of screw and lined up with Z motor gear you just installed. Make sure to use 2
grub screws when mounting.
Grub Screw (Set Screw)
M4-0.7x5mm
STEP 5
Loop belt around gears
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
