M2 ASSEMBLY GUIDE

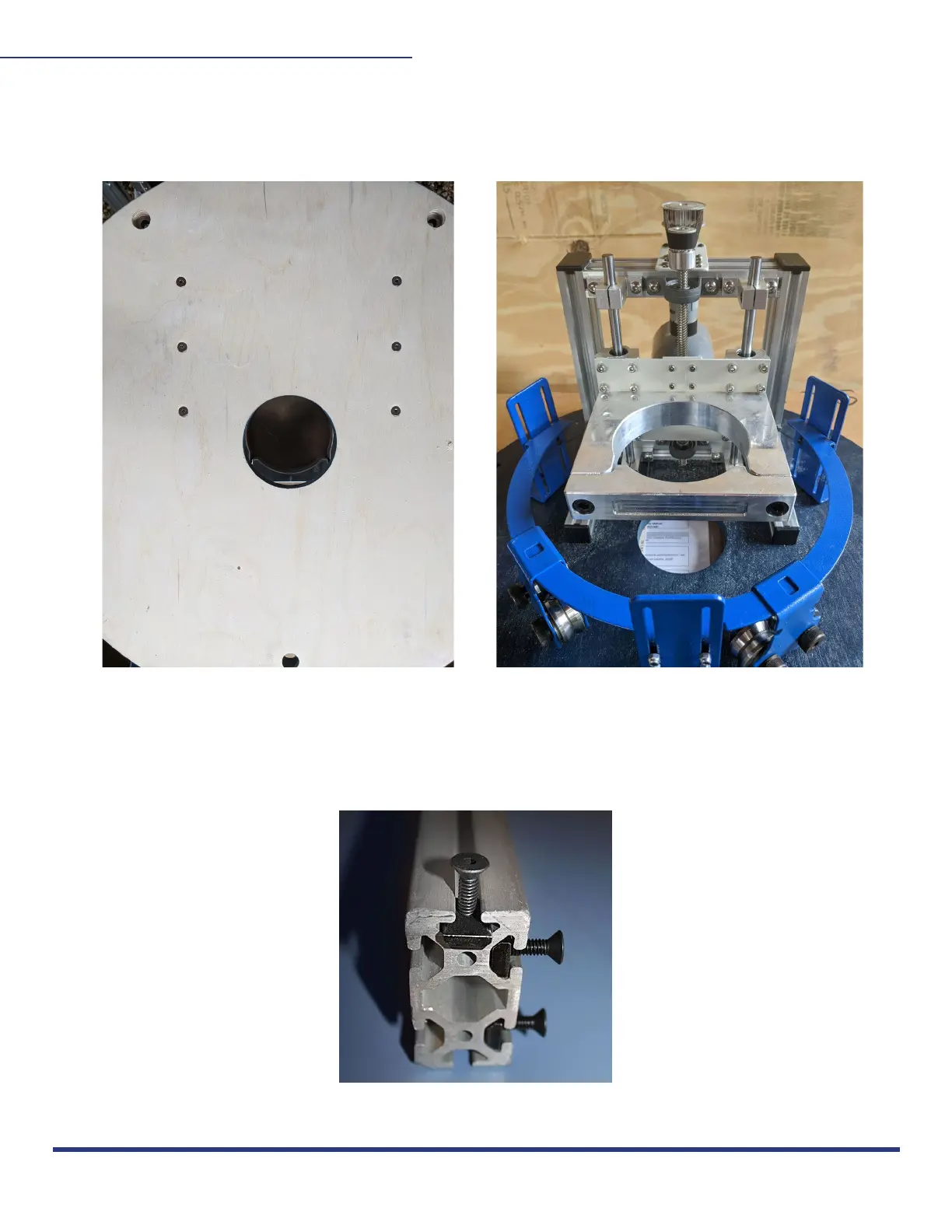

STEP 6:
Attach Z-axis Assembly to sled using 6pcs M4 x 20mm Flathead Screws from Bag Z inserted
through bottom, don’t tighten fully until router is centered
Note: These bolts fasten with a T-nut. A T-nut works by being specially designed to turn
sideways when being tightened. This fastens parts to aluminum extrusions, as seen in this
image.
