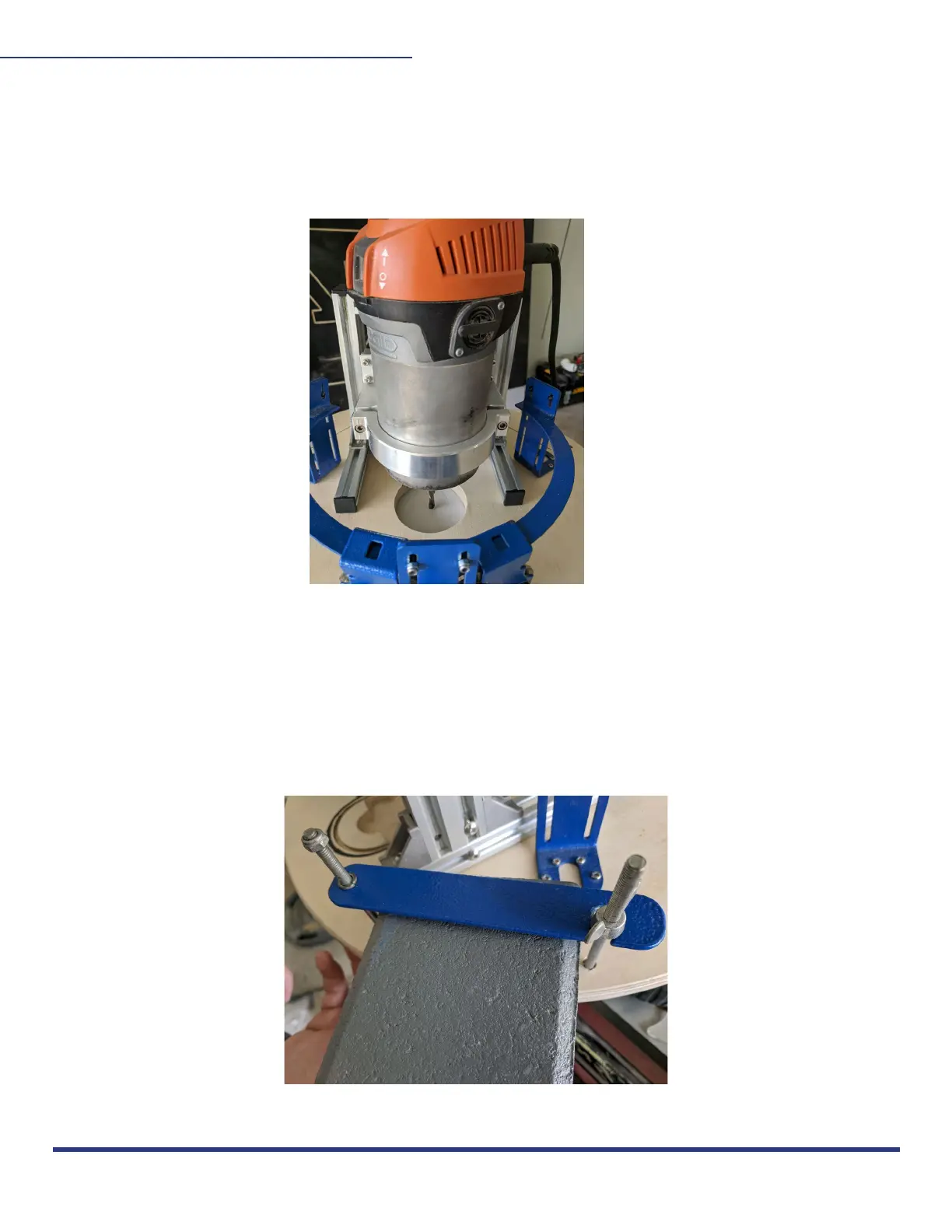

M2 ASSEMBLY GUIDE
STEP 1:
Attach bit to router, insert into router clamp, and tighten clamp.
3. ATTACH AND CENTER YOUR ROUTER
STEP 2:
Center the router by moving the Z-Axis Assembly back and forth until bit is in center. Tighten
T-nuts and ensure Assembly is tightly attached to the frame.
STEP 3:
Mount bricks to sled to keep sled flush with its cutting surface. Insert bolts through pre-
drilled holes from bottom of sled through to the top. Place bricks between bolts and place
metal brick retainers over bolts, secure with wingnuts.
Bag C
