M2 ASSEMBLY GUIDE
Warning: We recommend a friend help connect the spring and each person wear
safety goggles during stretching. The chain can snap back causing damage to self and
surroundings.
The M2 moves in the X and Y position by the use of chains connected to the motors. The
following instructions are to install the chains on a 4’x8’ frame.

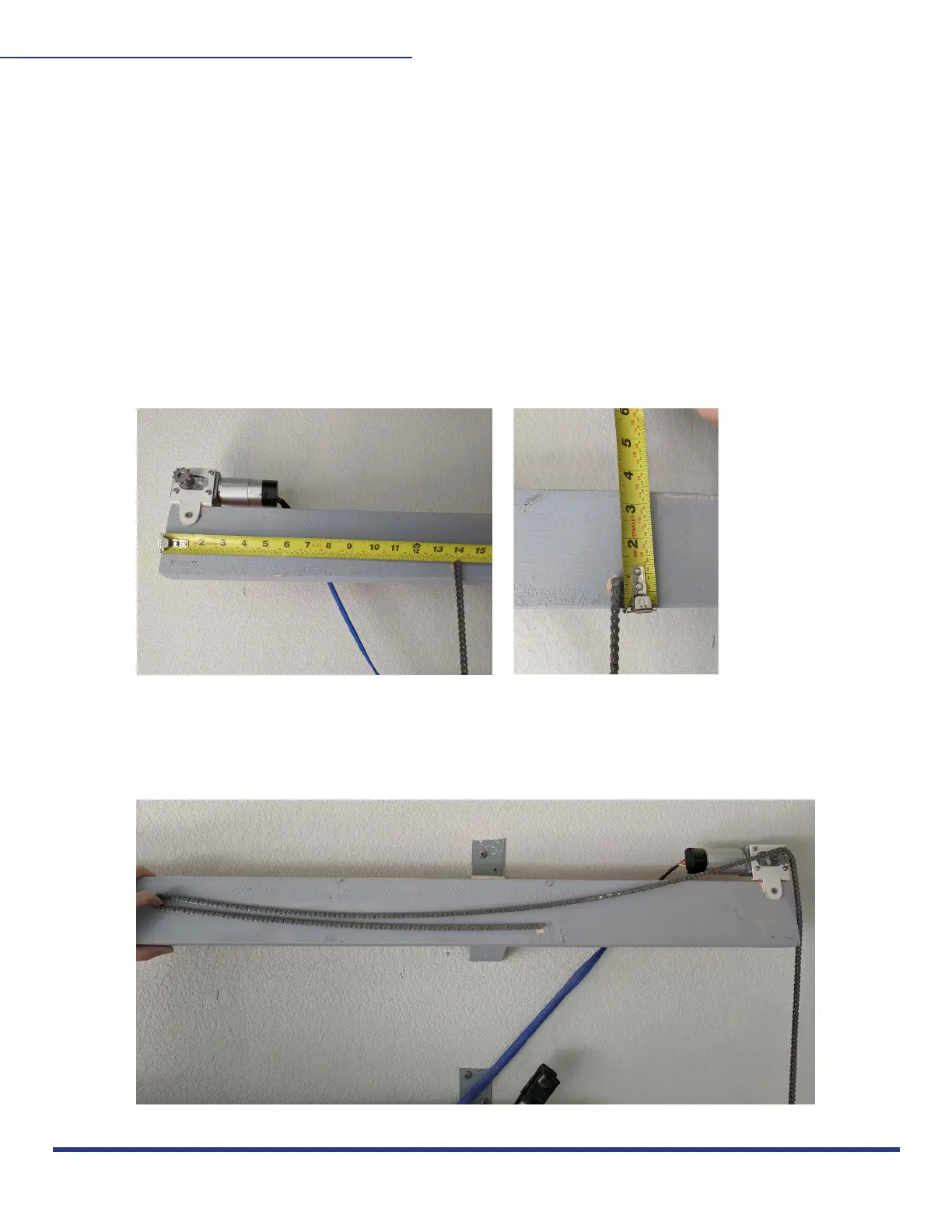

STEP 1:
Use enclosed nails to attach end of chains to Top Beam: On each side of top beam, measure
14” (35cm) in and 1” (2.5cm) up from bottom and attach one of the chains
4. MOUNT CHAINS
STEP 2:
Drape chains over top of sprockets, so they can loop toward the center
Bag A
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
