M2 ASSEMBLY GUIDE

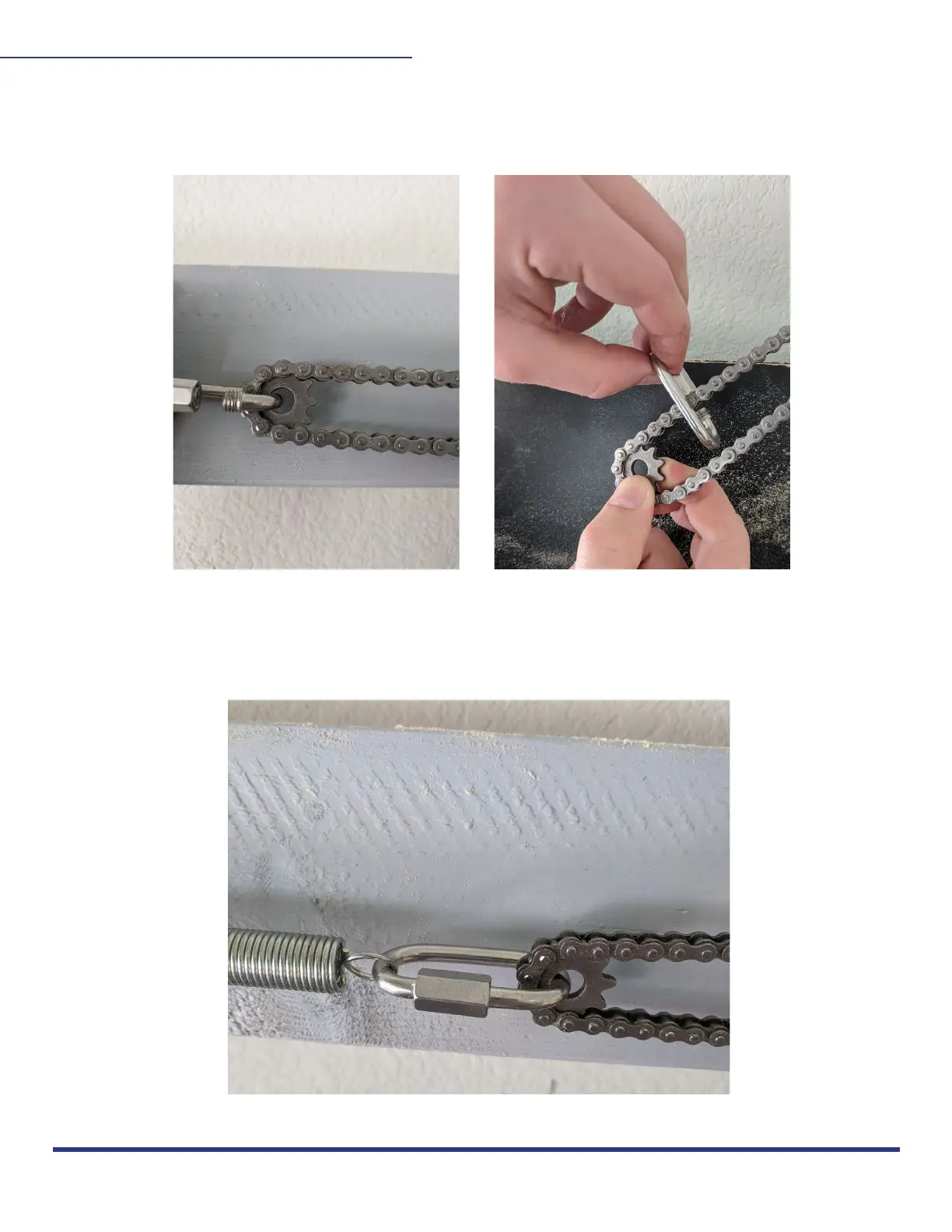

STEP 3:
Measure 31” (78cm) of one chain from nail toward center of Top Beam, place Motor Sprocket
for Chain in loop, and attach Quick Link
STEP 4:
Attach spring and tighten quick link, with link nut facing away from beam
Bag A
Bag B
