30
M2 ASSEMBLY GUIDE

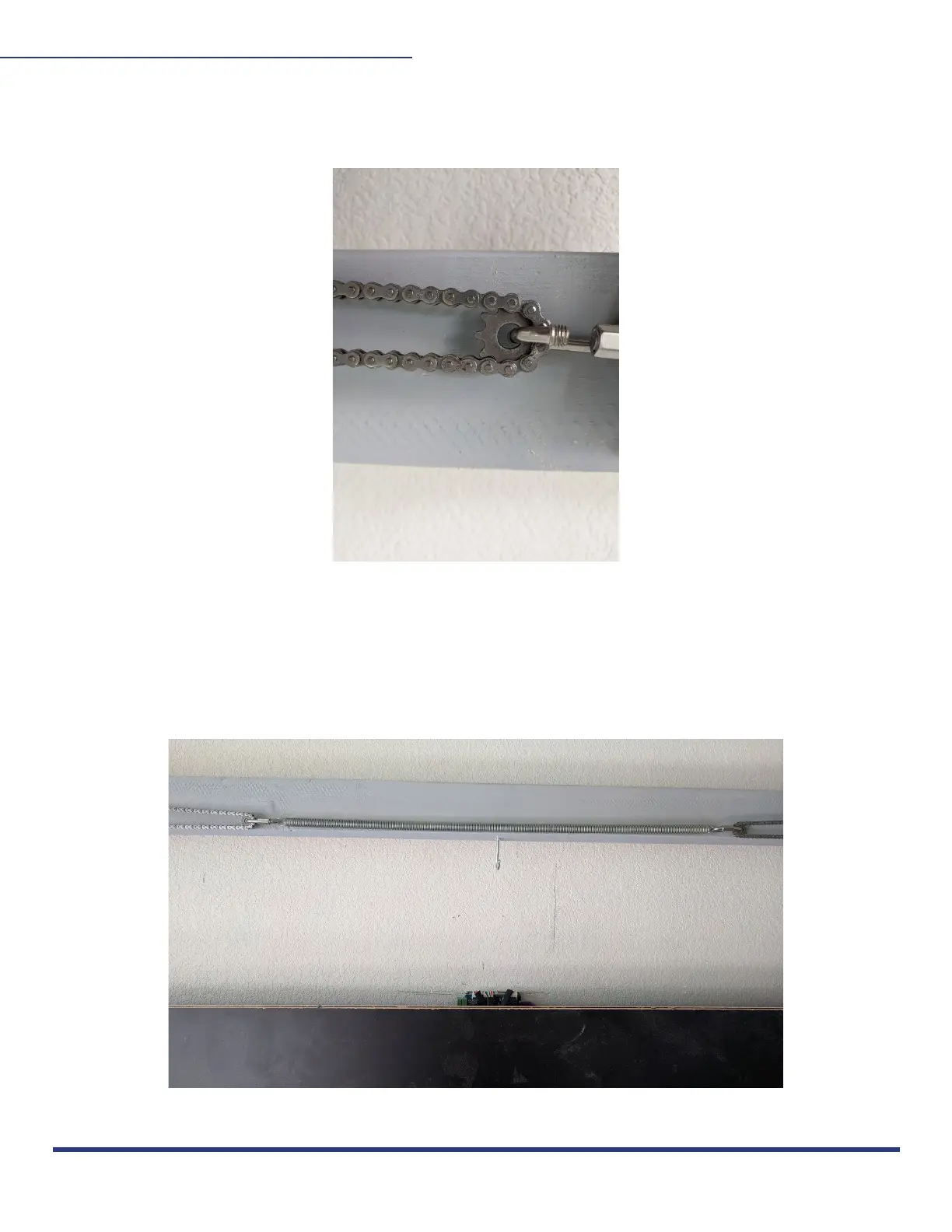

STEP 5:
Measure 31” (78cm) of opposite chain, place sprocket, and attach quick link, do not tighten
STEP 6:
Stretch out spring and attach end to open quick link, tighten quick link
Warning: Be careful when handling chains, they can snap back causing damage to self and
surroundings.
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
