P 2/ 7

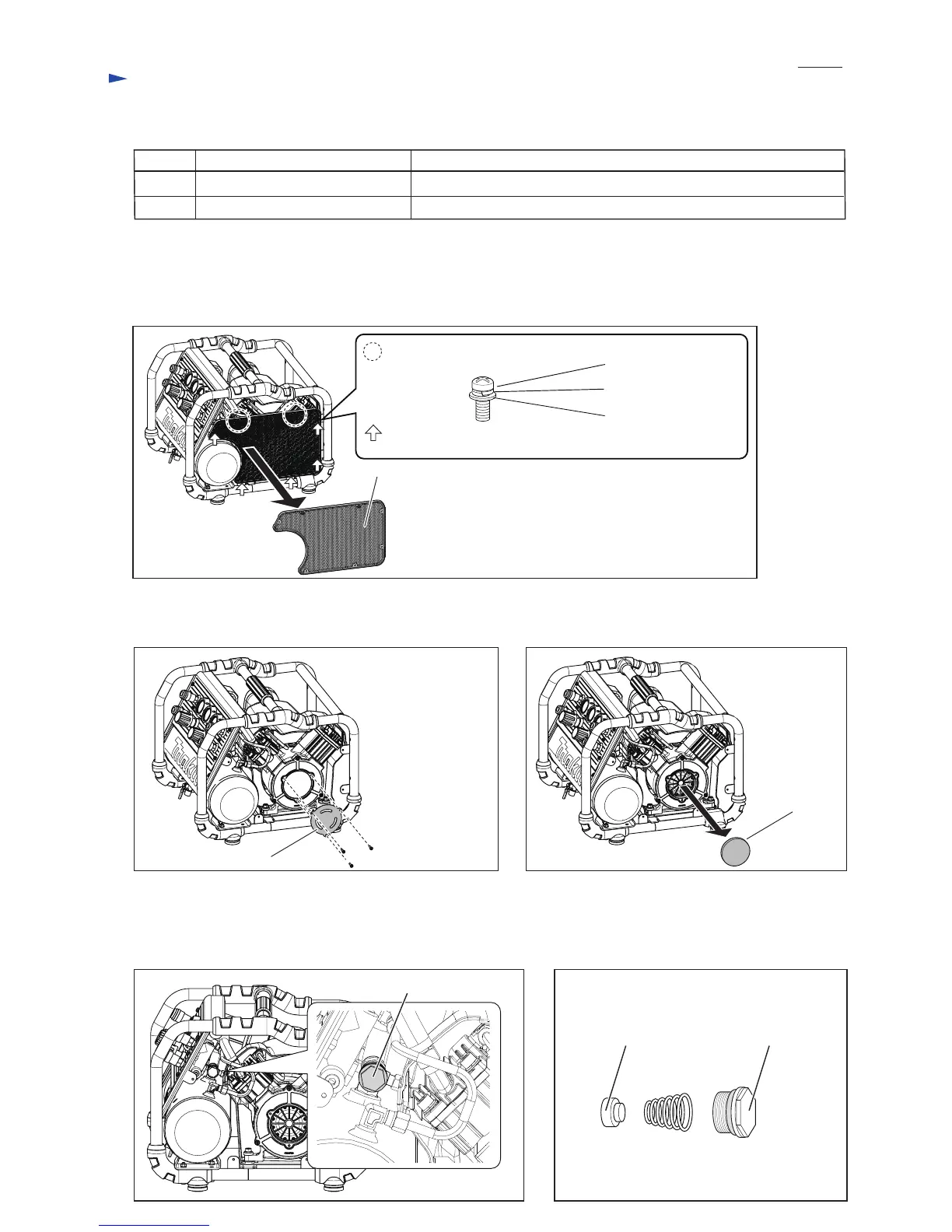

Repair

CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.

[1] NECESSARY REPAIRING TOOLS

[2] REPLACING

[2]-1. Filter

[2]-2. Filter

Fig. 1

Fig. 2

Fig. 4 Fig. 5

Fig. 3

Code No. Description Use for

1R230 1/4" Hex. shank bit for M6 Removing M6 Hex socket head bolt

1R231 1/4" Hex. shank bit for M8 Removing M8 Hex socket head bolt

1) Loosen five M5x10 Pan head screws, then remove Side panel with Side panel cover.

2) Loosen three 4x18 Tapping screws, then remove Filter cover. (Fig. 2)

Filter can be removed as illustrated in Fig. 3.

After removing Side panel with Side panel cover, loosen Cover of Check valve section with box wrench 19. (Fig. 4)

Check valve can be removed. (Fig. 5)

Remove five M5x10 Pan head screws

designated with arrows.

Side panel with Side panel cover

4x18 Tapping screw

(3pcs.)

Filter cover

Filter

Note: Do not loosen two M5x10

Pan head screws in two circles.

Cover of Check valve section

Cover of

Check valve sectionCheck valve

M5x10 Pan head screw

Spring washer 5

Flat washer 5
