Makita AC310H Technical Information

P 7/ 7

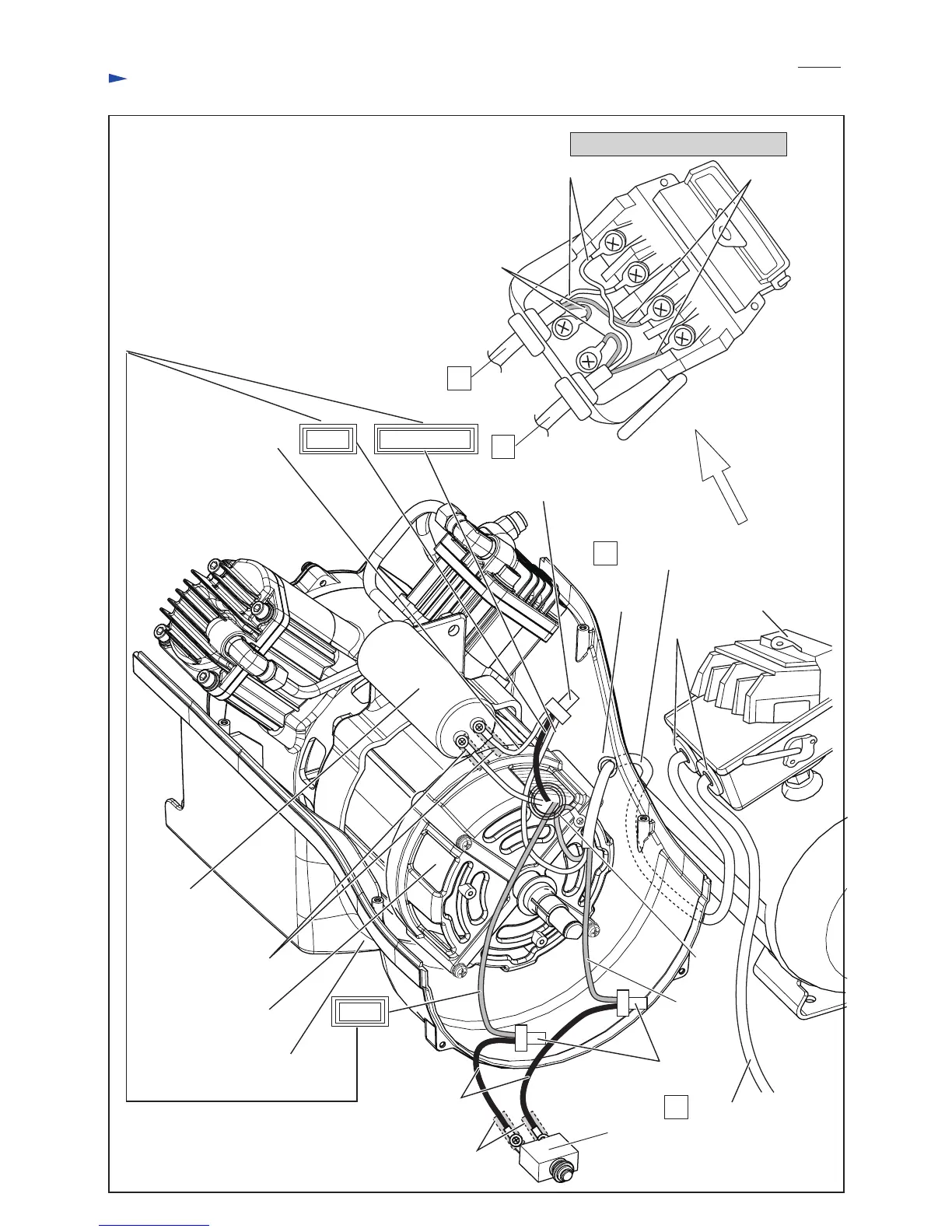

Wiring diaphragm
D-1
Note: Fix Lead wires in Motor cover with Band
so as not to sag and interfere with Fan 195.
White or blue Black or brown
Switch assemblyBushing
Cord between Switch assembly
and Motor section
Cord clamp
Overhead view of Switch assembly
Green
A
A
B
B
Power supply cord
Thermal circuit breaker
Polyolefin tube
ø5 Connector
Polyolefin tube
Capacitor
Motor cover
Motor section
Black
Red
Black or
brown
Green
ø6 Connector
White or blue
Three lead wires from Motor section
Black
White
