Repair
Comparison of products
P 3 / 4

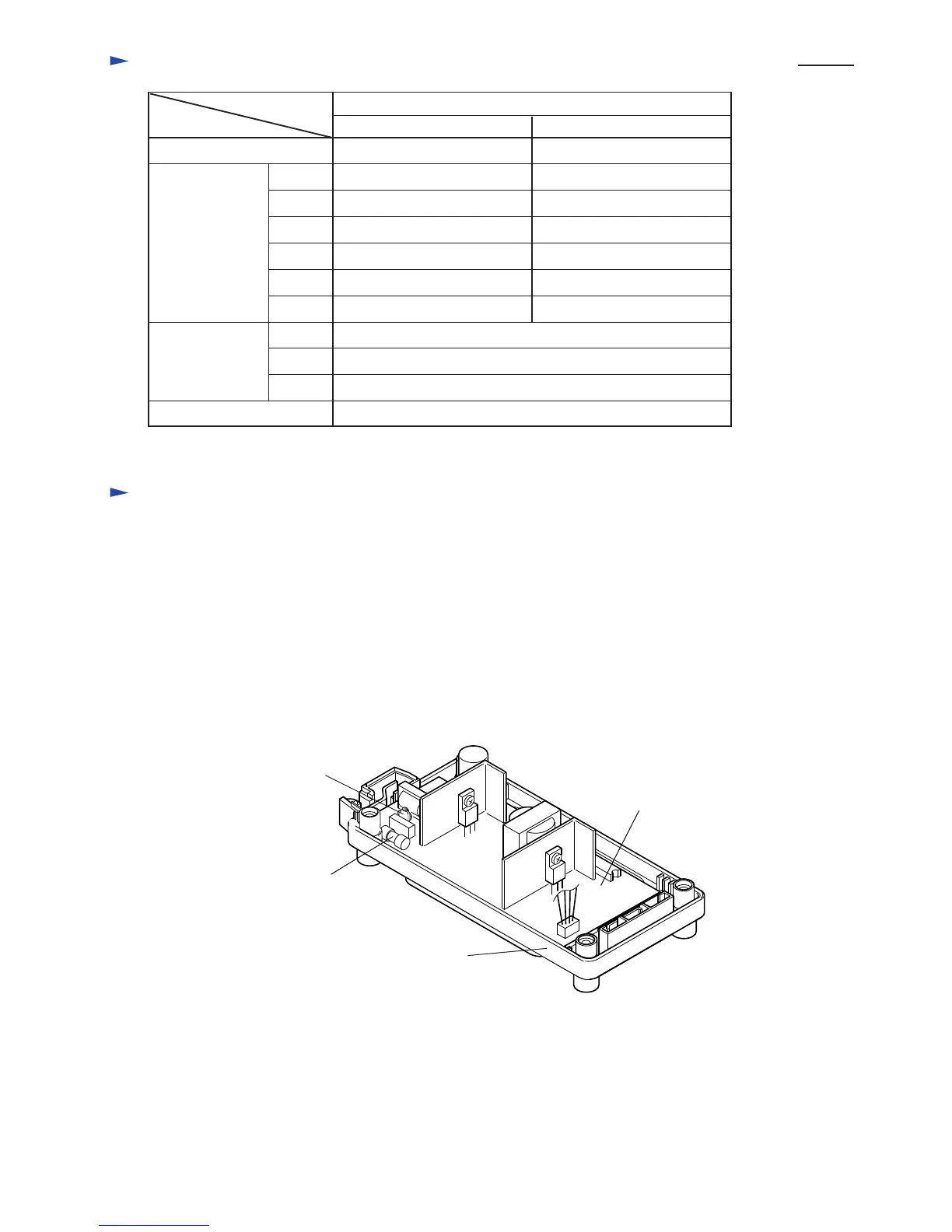

Specifications
Model No.
Chargeable battery voltage
* Charging
time : min.
Dimensions
: mm ( " )
Length
Width
Height
Net weight : Kg (lbs)
MAKITA
DC1413 DC1411
7.2V - 14.4V 7.2V - 14.4V
1.3Ah
1.7Ah
2.0Ah
2.2Ah
2.6Ah
3.0Ah
Approx. 30 min.
Approx. 40 min.
Approx. 50 min.
Approx. 60 min.
Approx. 70 min.
Approx. 45 min.
Approx. 40 min.
Approx. 50 min.
Approx. 65 min.
Approx. 75 min.
Approx. 90 min.
Approx. 60 min.
193 (7-5/8)
92 (3-5/8)
78 (3-1/16)
0.41 (0.9)
<Note> The charging time can be different from conditions to conditions of batteries and room temperature.
<1> The circuit board can not be repaired, because the circuit itself are molded on the board .
It has to be replaced as a set with new one.
<2> In case of damaged varistor or fuse, they can be repaired according to the following procedure without
replacing the circuit board.
(1) How to find broken varistor
a. In case that the surface of varistor (ref. to the following illustration) has broken or has become black, and
fuse has been cut, the varistor has been damaged.
b. Varistor can be damaged easily, if the charger is plugged in a double voltage of the rating one.
c. It is considered that the varistor has been broken for other reasons, if the fuse is broken while the surface
of varistor is not damaged. In this case circuit board has to be replaced.
Fuse
Varistor
Circuit board
Charger case set
