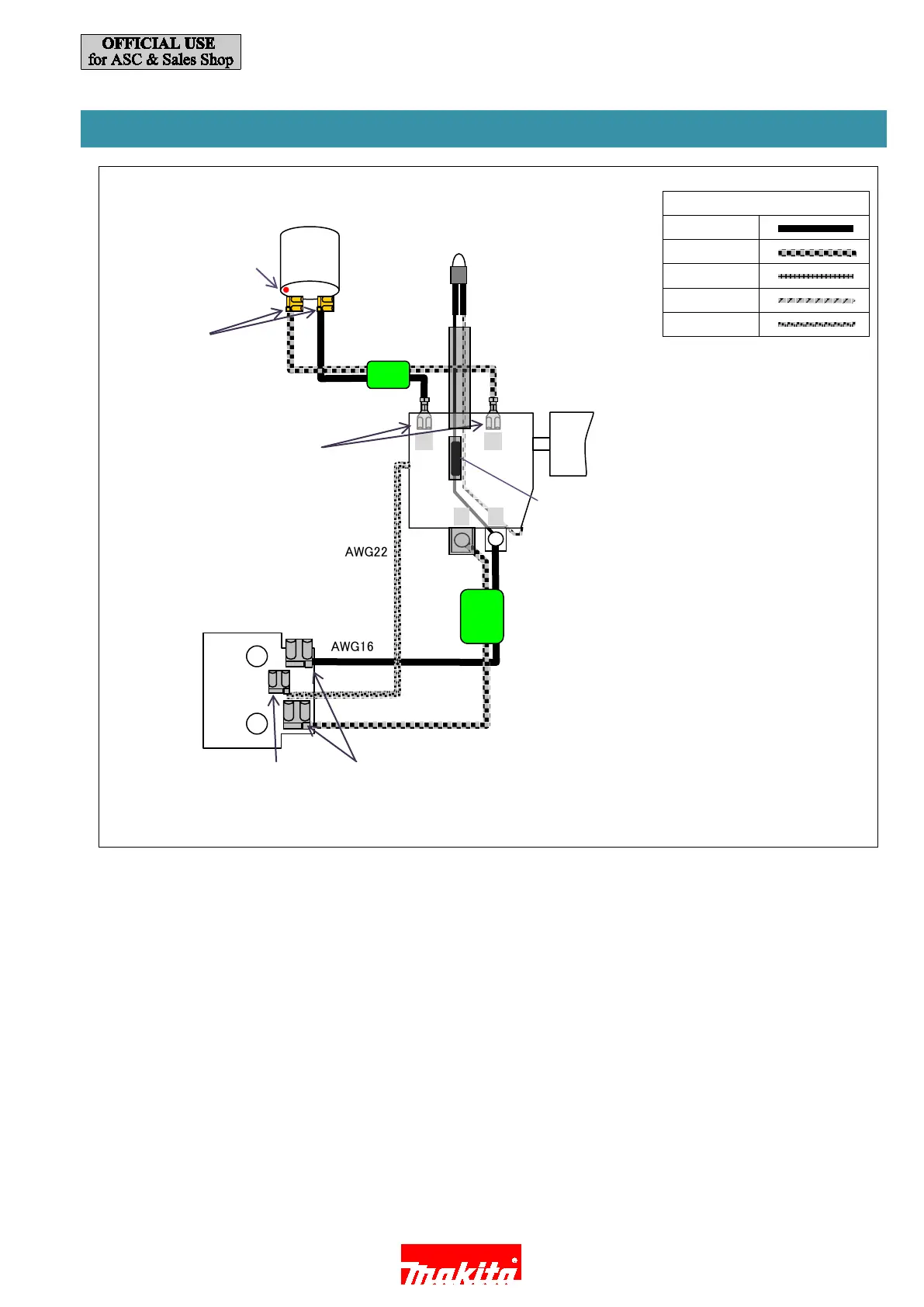

3. CIRCUIT DIAGRAM
Color index of lead wires' sheath
Black
Red
Blue
White
Yellow
Figure 22
16AWG
16AWG
Line filter
B
φ
10-20mm
(if used)
DC Motor
Red mark
Resistor
B- B+
M2
M1
Terminal
Line filter
A
φ
10-11mm
(if used)
T terminal
24
AWG, UL1685
AWG
16
AWG
22
16AWG
Straight receptacles
W
ith lock
(#
187, t=0.8)
LED
circuit
Flag receptacle
s
w/o lock
(#
187, t=0.5)
Flag receptacle
W
ith lock
(#
250, t=0.8)
Flag receptacle
W
ith lock
(#
187, t=0.8)
＋
－
AWG: American wire gauge
16 / 18
