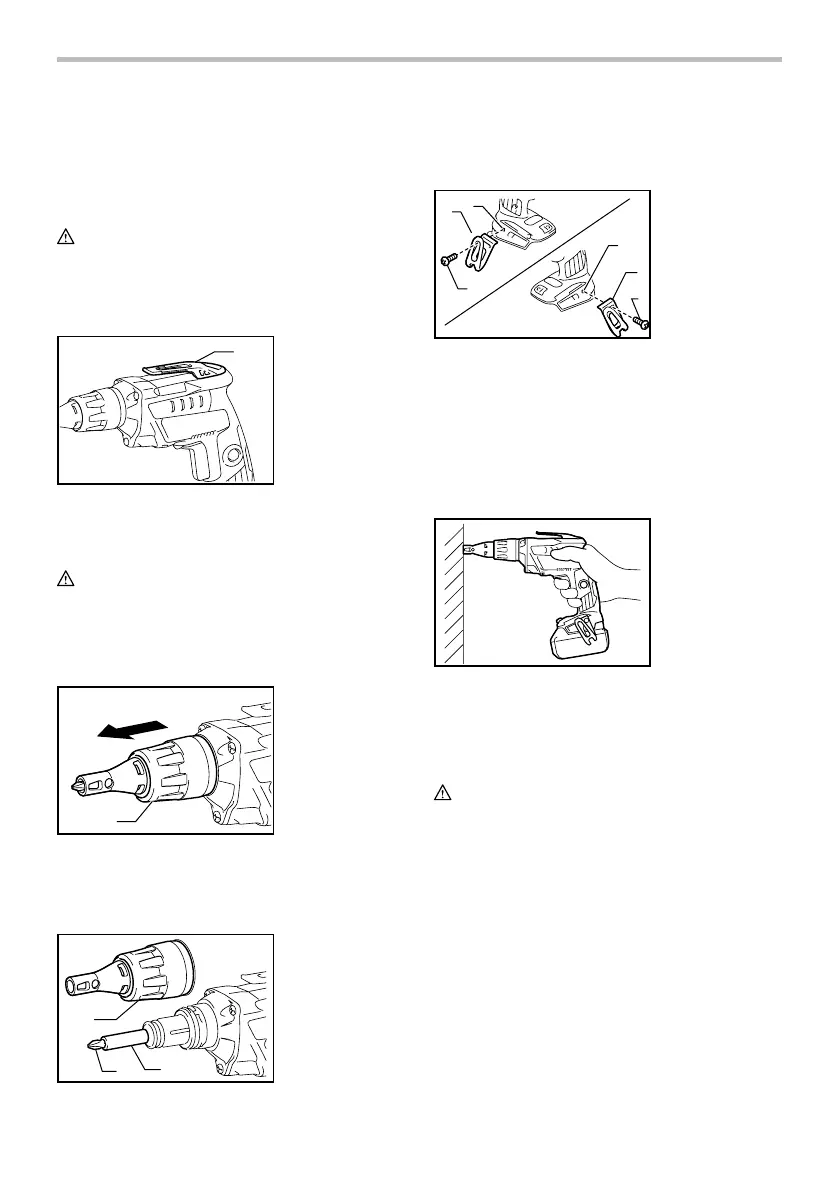

8
as shown in the figures. Drive a trial screw into your
material or a piece of duplicate material. If the depth is
still not suitable for the screw, continue adjusting until
you obtain the proper depth setting.
Hook
CAUTION:
• Always remove the battery when hanging the tool
with the hook.
• Never hook the tool at high location or on
potentially unstable surface.
1
015170
The hook is convenient for temporarily hanging the tool.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
Installing or removing the bit
1
015166
To remove the bit, pull the locator. Then grasp the bit
with a pair of pliers and pull the bit out of the magnetic
bit holder. Sometimes, it helps to wiggle the bit with the
pliers as you pull.
1
2
3
015167
To install the bit, push it firmly into the magnetic bit
holder. Then install the locator by pushing it firmly back.
Hook
2
1
1
3
2
3
015168
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool.
To install the hook, insert it into a groove in the tool
housing on either side and then secure it with a screw.
To remove, loosen the screw and then take it out.
OPERATION
Screwdriving operation
015169
Fit the screw on the point of the bit and place the point
of the screw on the surface of the workpiece to be
fastened. Apply pressure to the tool and start it.
Withdraw the tool as soon as the clutch cuts in. Then
release the switch trigger.
CAUTION:
• When fitting the screw onto the point of the bit, be
careful not to push in on the screw. If the screw is
pushed in, the clutch will engage and the screw
will rotate suddenly. This could damage a
workpiece or cause an injury.
• Make sure that the bit is inserted straight in the
screw head, or the screw and/or bit may be
damaged.
1. Groove
2. Hook
3. Screw
1. Locator
2. Bit
3. Magnetic bit
holder
1. Locator
1. Hook
