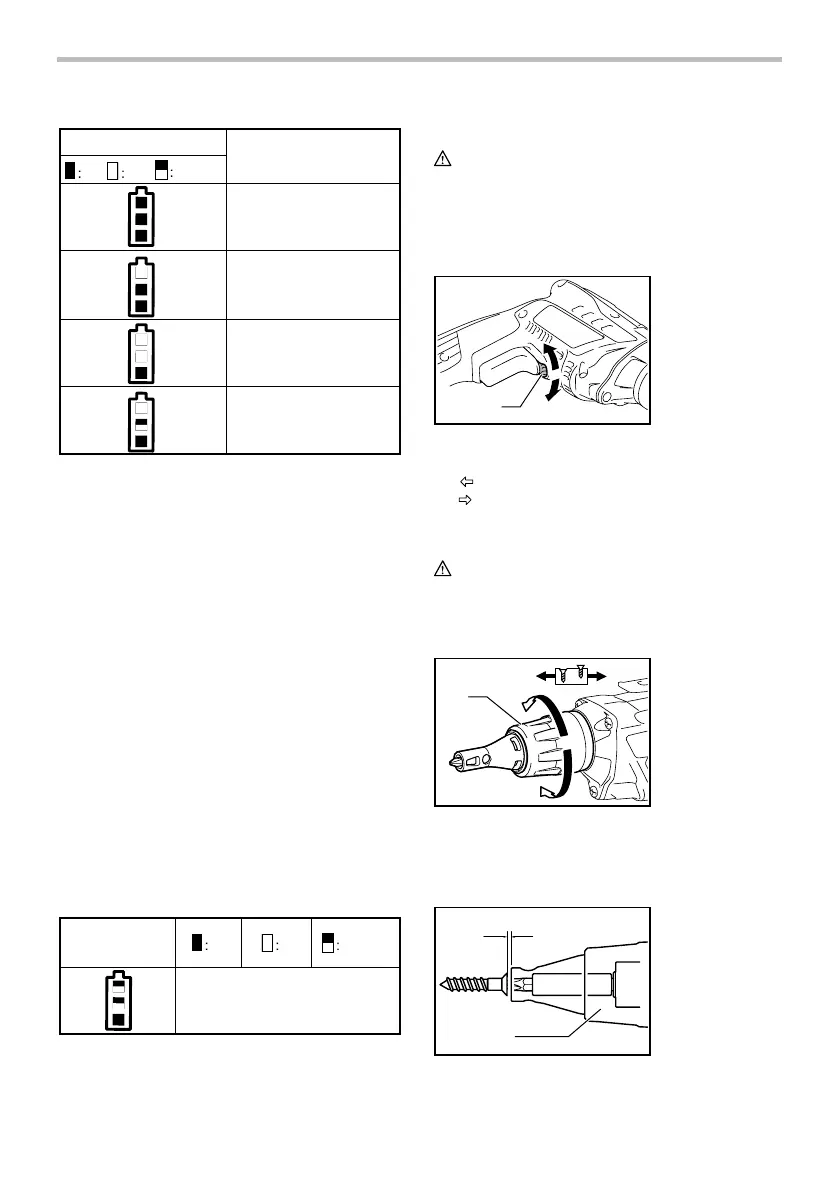

7
Battery indicator status
Remaining battery capacity
50% - 100%
20% - 50%
0% - 20%
On Off
Blinking
Charge the battery
015175
NOTE:
• Approximately one minute after the motor stops,
the indicators go off to save the battery power. To
check the remaining battery capacity, slightly pull
the switch trigger.
Tool / battery protection system
The tool is equipped with a tool/battery protection
system. This system automatically cuts off power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery are placed under one of the following
conditions. In some conditions, the indicator lights up.
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indications. In this situation, turn the
tool off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection for tool
When the tool is overheated, the tool stops
automatically and the battery indicator shows following
state. In this situation, let the tool cool before turning the
tool on again.
Battery indicator
Tool is overheated
On Off Blinking
015176
Reversing switch action
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
B
1
A
B
015164
This tool has a reversing switch to change the direction
of rotation. Move the reversing switch lever to
the
position (A side) for clockwise rotation or
the
position (B side) for counterclockwise rotation.
When the reversing switch lever is in the neutral
position, the switch trigger cannot be pulled.
CAUTION:
When not operating the tool, always set the reversing
switch lever to the neutral position.
Depth adjustment
1
A
B
A
B
015165
The depth can be adjusted by turning the locator. Turn it
in "B" direction for less depth and in "A" direction for
more depth. One full turn of the locator equals 2 mm
change in depth.
1
3 mm
011815
Adjust the locator so that the distance between the tip of
the locator and the screw head is approximately 3 mm
1. Locator
1. Locator
1. Reversing
switch lever
