Makita DP2011 Technical Information

P 8 / 9
Wiring diagram

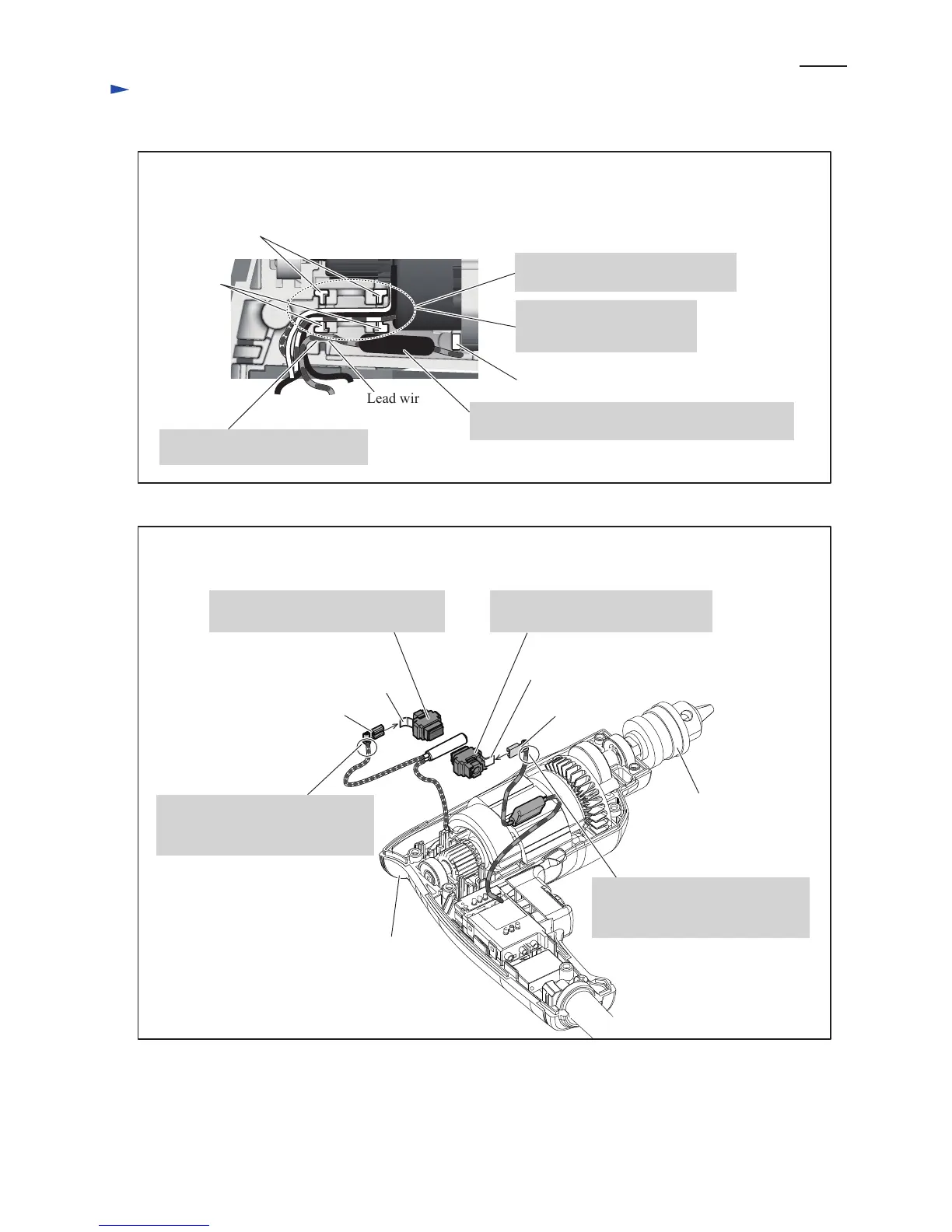

Wiring to Brush holder
Wiring of Field Lead Wires
Fig. D-3
Rib A
Rib B
( Under Brush holder of Switch side)
Lead wire
holder
Rib F
Field lead wires should be tightened
between Field, Ribs A and B.
Route five Field lead wires
(purple, white, red, 2 blacks)
between Ribs A and B.
Put Choke coil with Lead wire (orange) between
Rib F and Lead wire holder. (when using Choke coil)
Holder sleeve
Flag connector
Housing set (L)
Flag connector
Holder sleeve
Fix Coke coil’s lead wire (orange)
in Lead wire holder.
Drill chuck
Fig. D-2
Set Brush holder in the upper rear side
with Holder sleeve facing to rear side.
Set Brush holder in switch side with
Holder sleeve facing to Drill side.
When connecting Flag connector to
Holder sleeve, route Lead wire
in the Housing set (L) side.
When connecting Flag connector to
Holder sleeve, route Lead wire
in the Housing set (L) side.
