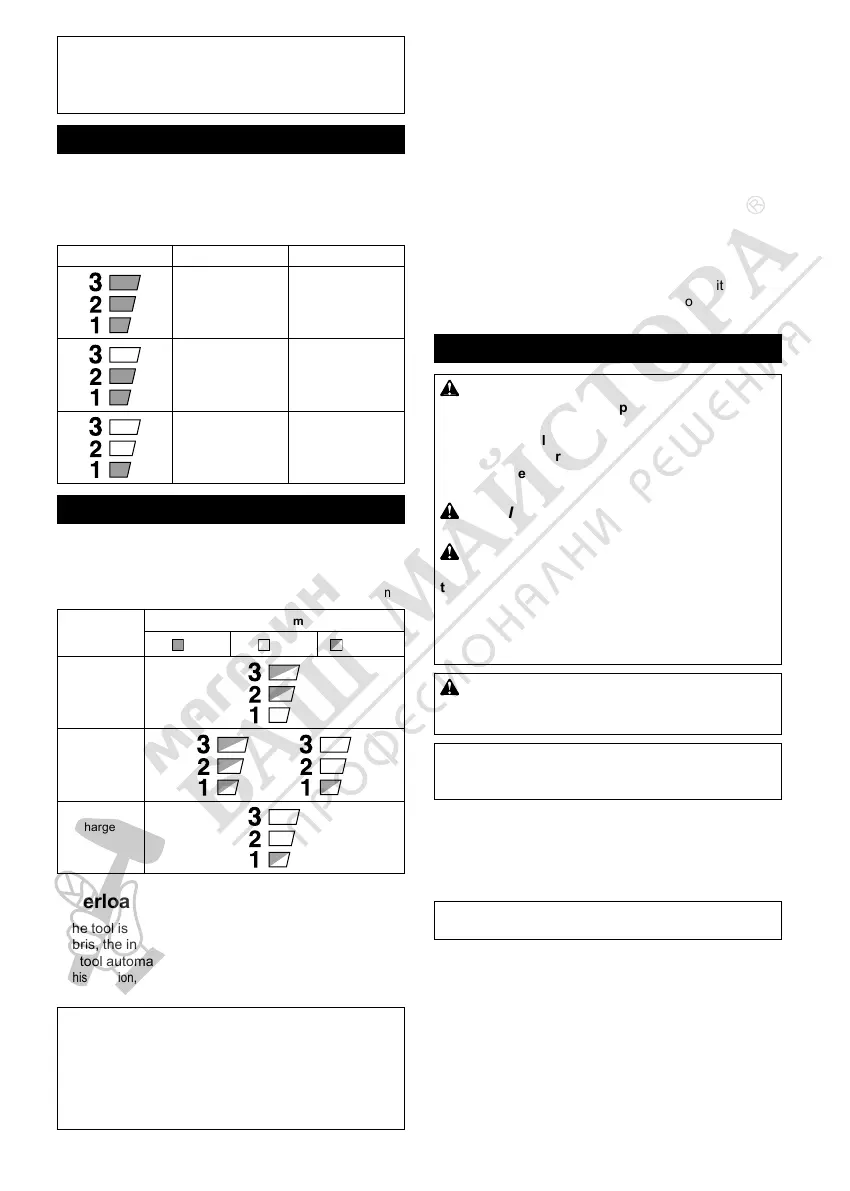

12 ENGLISH
NOTE:
Depending on the conditions of use and the ambient tem-
perature, the indication may dier slightly from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Speed adjusting
You can adjust the tool speed by pressing the main
power button. Each time you press the main power
button, the level of speed changes.
► Fig.3: 1. Speed indicator 2. Main power button
Indicator Mode Stroke speed
High 4,400 min
-1
Medium 3,600 min
-1
Low 2,000 min
-1
Tool / battery protection system
The tool is equipped with a tool/battery protection system. This
system automatically cuts o power to the motor to extend tool
and battery life. The tool will automatically stop during operation if
the tool or battery is placed under one of the following conditions:
Status Indicator lamps
On O Blinking
Overload
Overheat
Over
discharge
Overload protection
If the tool is overloaded by entangled branches or other
debris, the indicators for "2" and "3" start blinking and
the tool automatically stops.
In this situation, turn the tool o and stop the application that caused
the tool to become overloaded. Then turn the tool on to restart.
NOTICE:
Depending on the usage conditions, the tool
is automatically turned o without any indication if the
tool is overloaded by entangled branches or debris. In this
case, switch o the tool and remove the battery cartridge,
and then remove entangled branches or debris using tools
such as pliers. After removing the branches or debris,
install the battery cartridge and turn on the tool again.
Overheat protection for tool or
battery
There are two types of overheating; tool overheating
and battery overheating. When the tool overheating
occurs, all speed indicators blink. When the battery
overheating occurs, indicator for "1" blinks.
If the overheating occurs, the tool stops automatically.
Let the tool and/or battery cool down before turning the
tool on again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically and indicator for "1" blinks.
If the tool does not operate even when the switches are
operated, remove the battery from the tool and charge
the battery.
Power switch action
WARNING: For your safety, this tool is
equipped with lever which prevents the tool from
unintended starting. NEVER use the tool if it runs
when you simply pull the switch triggers without
pressing the lever. Return the tool to our autho-
rized service center for proper repairs BEFORE
further usage.
WARNING: NEVER tape down or defeat pur-
pose and function of the lever.
WARNING: Before installing the battery
cartridge on the tool, always check to see that
the switch triggers and lever actuate properly
and return to the "OFF" position when released.
Operating a tool with a switch that does not actuate
properly can lead to loss of control and serious per-
sonal injury.
CAUTION: Never put your nger on the
switch triggers when carrying. The tool may start
unintentionally and cause injury.
NOTICE: Do not pull the switch trigger hard
without pressing the lever. This can cause switch
breakage.
Press the main power button to turn on the tool. The
power lamp lights up when the tool is turned on. To turn
o the tool, press and hold the main power button. The
power lamp goes o when the tool is turned o.
► Fig.4: 1. Power lamp 2. Main power button
NOTE: The tool is automatically turned o if the tool is
not operated for a certain period.
To prevent the switch trigger from being accidentally
pulled, the lever is provided. To start the tool, pull the
front switch trigger, and then pull the rear switch trigger
while pressing the lever. When you release either of the
switch triggers, the tool stops.
► Fig.5: 1. Lever 2. Rear switch trigger 3. Front switch
trigger
