Makita EA3501S Technical Information

P 5/ 16
(1) Remove Sprocket guard, Guide bar and Saw chain from machine.

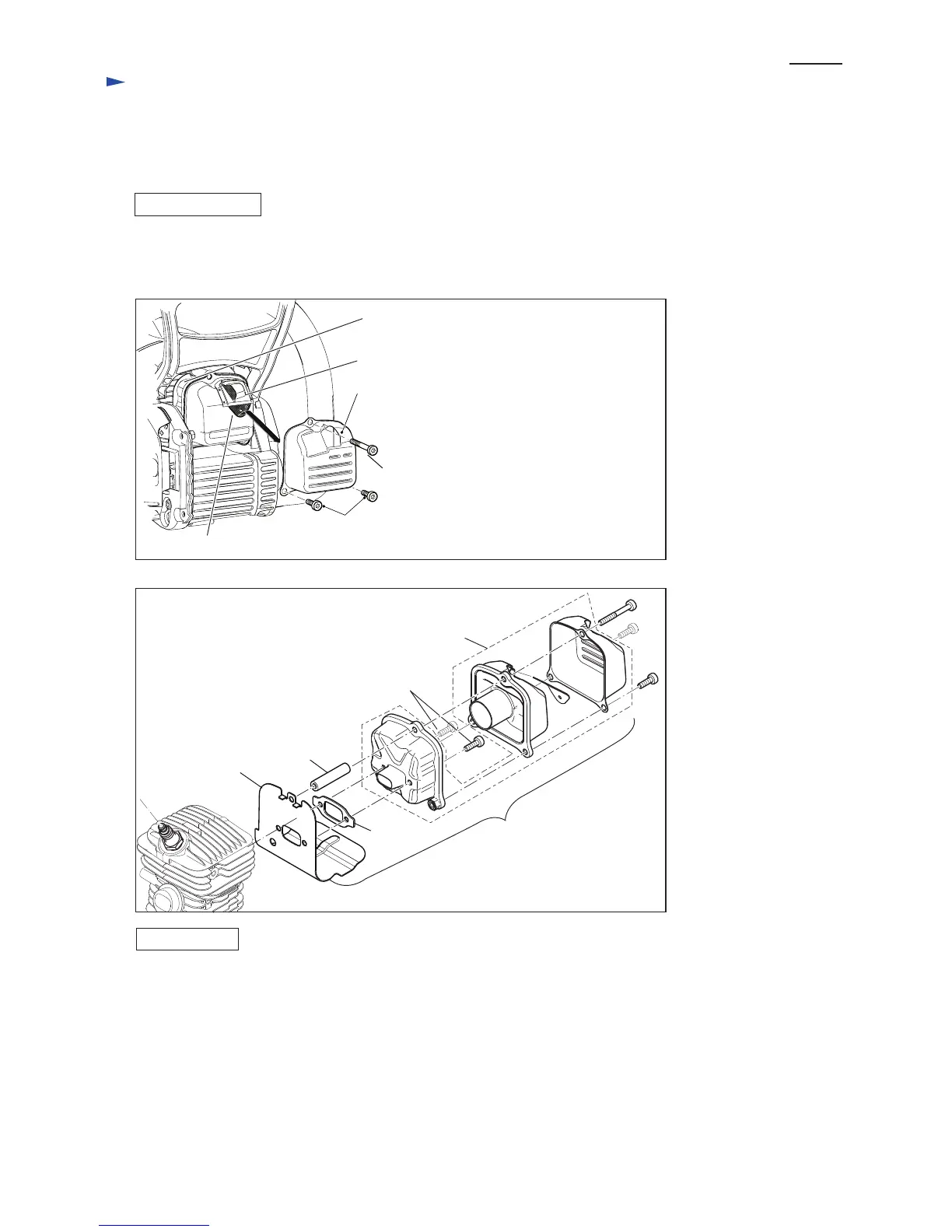

(2) Unscrew M5x40 Hexalobular socket head bolt and two M5x16 Hexalobular socket head bolts as drawn in Fig. 10,
and then disassemble Muffler section as drawn in Fig. 11.
Assemble the components of Muffler section by reversing the disassembling procedure.
Be careful to each direction.
Note: • Wear gloves for safety.
• Be careful that Muffler stays very hot for a while after running the engine.
Fig. 10
Repair
DISASSEMBLING
[2] DISASSEMBLY/ ASSEMBLY
[2]-4. Muffler section
ASSEMBLING
Fig. 11
Gasket
M5x16 Hexalobular
socket head bolt (2 pcs.)
M5x16 Hexalobular
socket head bolt (2 pcs.)
M5x40 Hexalobular
socket head bolt
*Muffler (Outer)
*Spark arrester screen
*Muffler (Center)
*Muffler (Inner)
*The components of
Muffler complete
(Refer to Fig. 10.)
Muffler complete
Connecting link
Cooling plate
Muffler section
