35
10 TANK

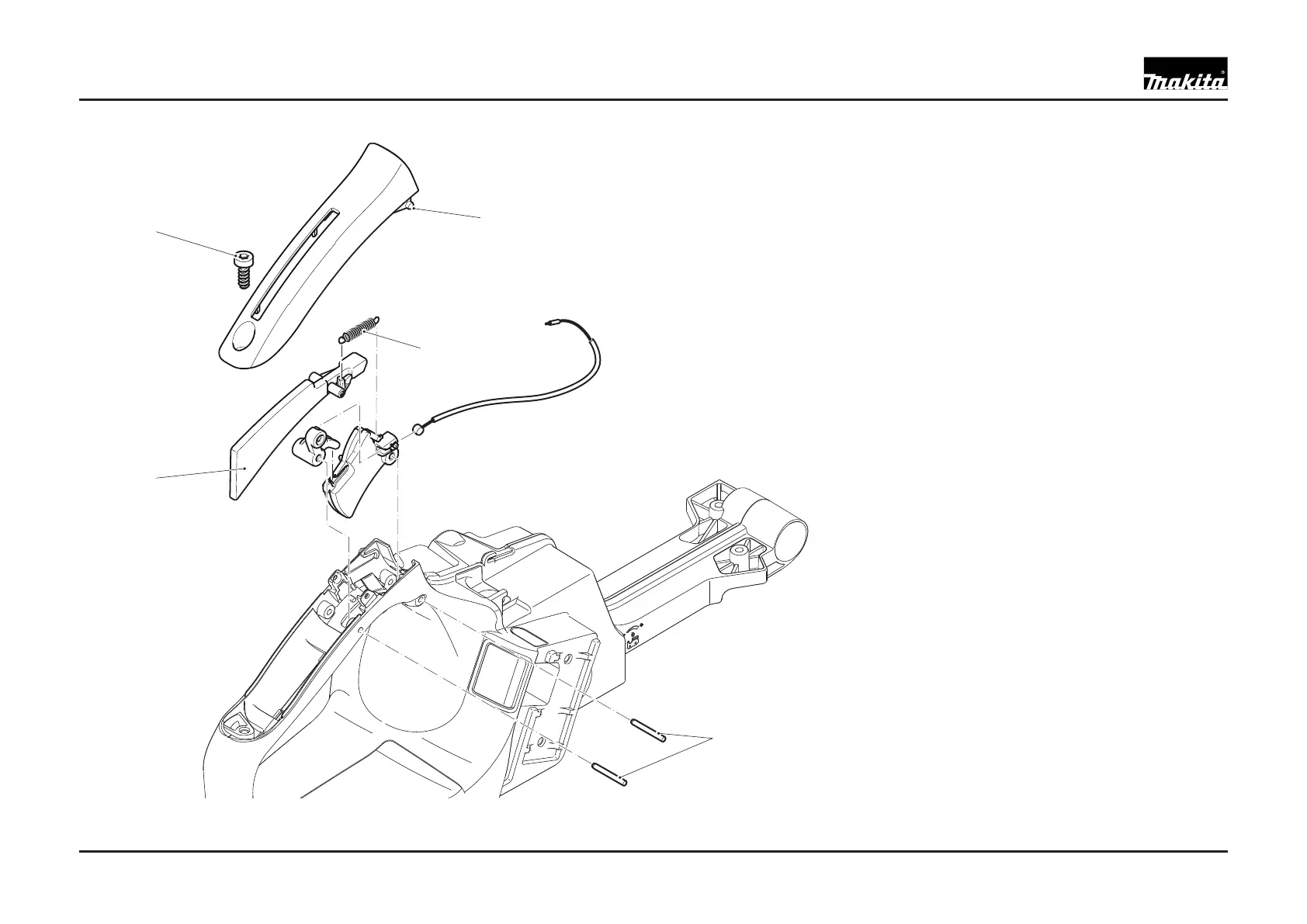

Grip mechanism
The throttle trigger is linked to the carburetor by
a Bowden cable.
NOTE: Do not lubricate the Bowden cable!
The grip shell is attached to the tank with a Torx
screw 3.
Disengage the throttle lock 1 and spring 2.
Check for ease of motion and functioning of the
safety throttle lock spring 2.
To r e p l a c e the t h r o t t l e trigger a n d t h r o t t l e lockon
lever drive out the cylinder pins 5 (3.3 x 28.4
mm) with a mandrel (ø 2 mm).
3
1
4
5
2

Makita EA6100P Specifications

General

Chain Pitch	3/8"
Engine Displacement	61 cm³
Bar Length	20 inches
Fuel Tank Capacity	0.80 liters
Weight	6.0 kg
Chain Gauge	0.050 inch
