10
2
26 25
18
17
19 20
3
4
1
6
7
5
8
9
1112
21222324
1015 1416
13

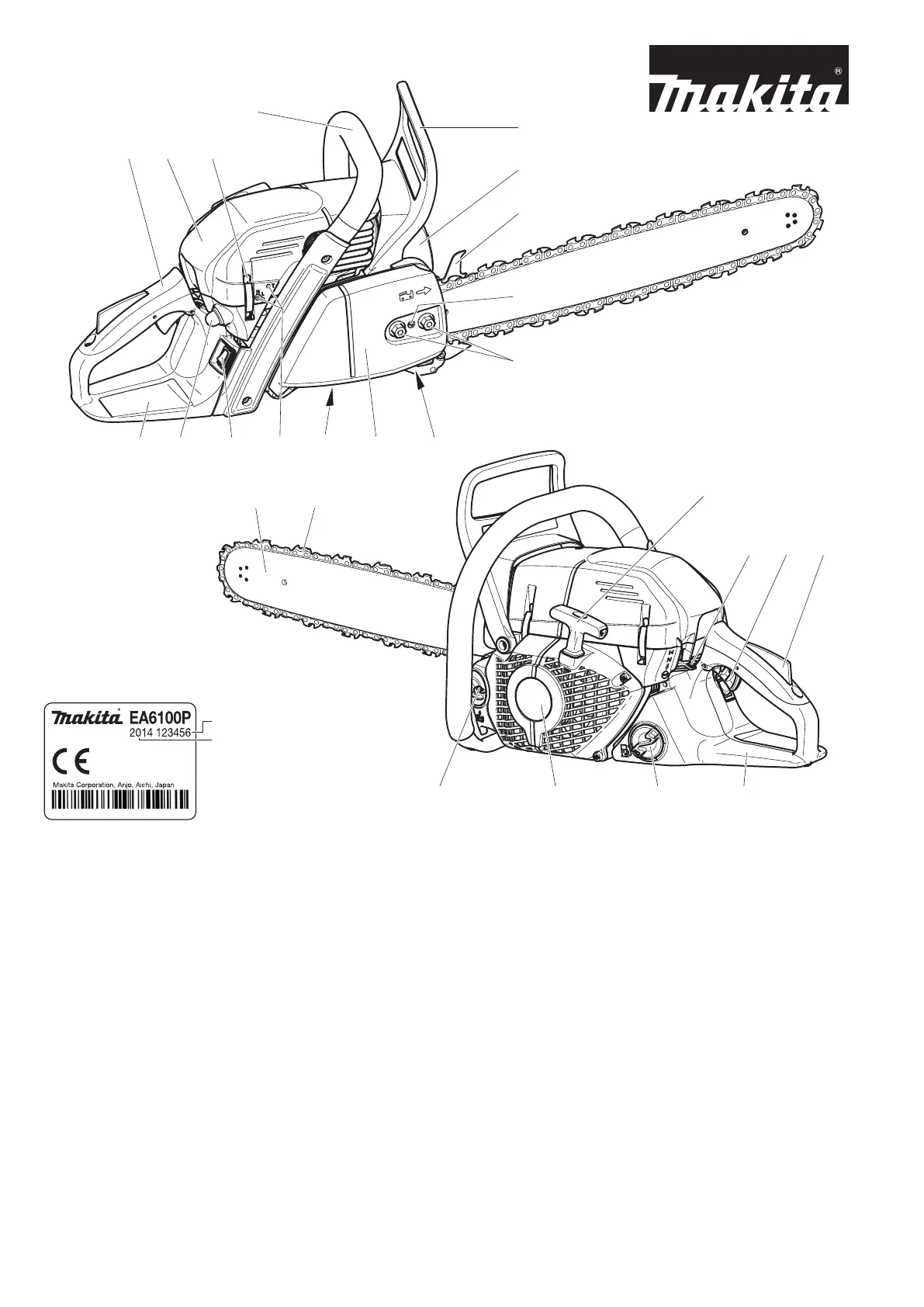

1 Handle
2 Cover
3 Hood lock
4 Tubular handle
5 Hand guard
(release for chain brake)
6 Mufer
7 Spike bar
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Adjusting screws for carburetor
Identication plate (16)
Indicate when ordering spare parts!
Serial number
Year of manufacture
Denomination of components
14 ON/OFF switch for grip heating (EA6101P only)
15 Fuel pump (Primer)
16 Identication plate
17 Starter grip
18 Combination switch (Choke / ON / Stop)
19 Throttle lever
20 Safety locking button
21 Rear hand guard
22 Fuel tank cap
23 Fan housing with starting assembly
24 Oil tank cap
25 Chain (Blade)
26 Guide bar
000.000.001 Typ 130
Made in Germany
