8

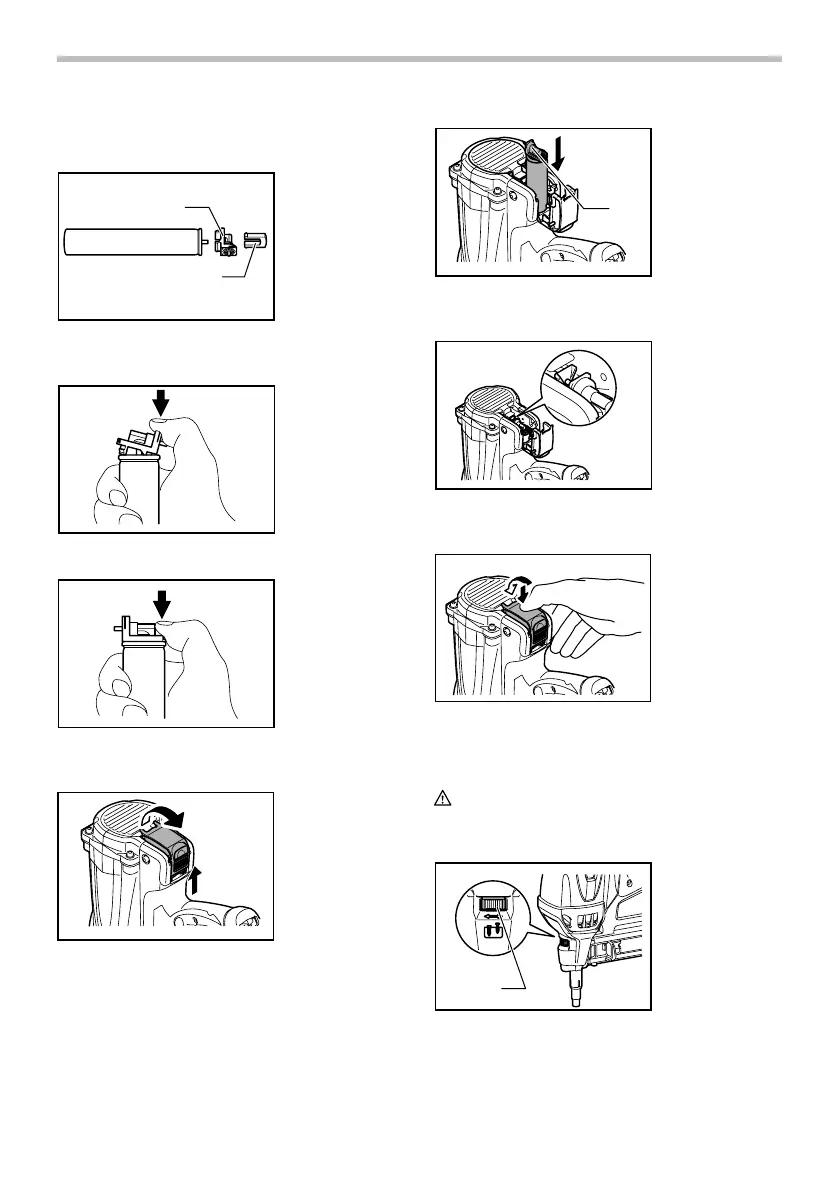

Fuel cell
Attaching the metering valve to the fuel cell
1
2
009445
Detach the cap (in case the metering valve is provided
with the cap).
009446
Push in the front edge.
009447
Push in the rear edge until it seats.
Inserting the fuel cell
013152
Push up and pull the fuel cover to open.
1
013153
Insert the fuel cell directing the jet nozzle of the
metering valve toward the adaptor.
013154
Insert the jet nozzle into the small hole of the adapter
properly.
013155
Put the fuel cover over the metering valve and push it
down to latch.
Adjusting the nailing depth
CAUTION:
• Remove the fuel cell, the battery cartridge and
nails before adjusting the depth of nailing.
1
013168
To get shallower depth, turn the adjuster to right
direction as shown in the figure. To get deeper depth,
turn the adjuster to left direction.
1. Adjuster
1. Jet nozzle
1. Metering valve
2. Cap
