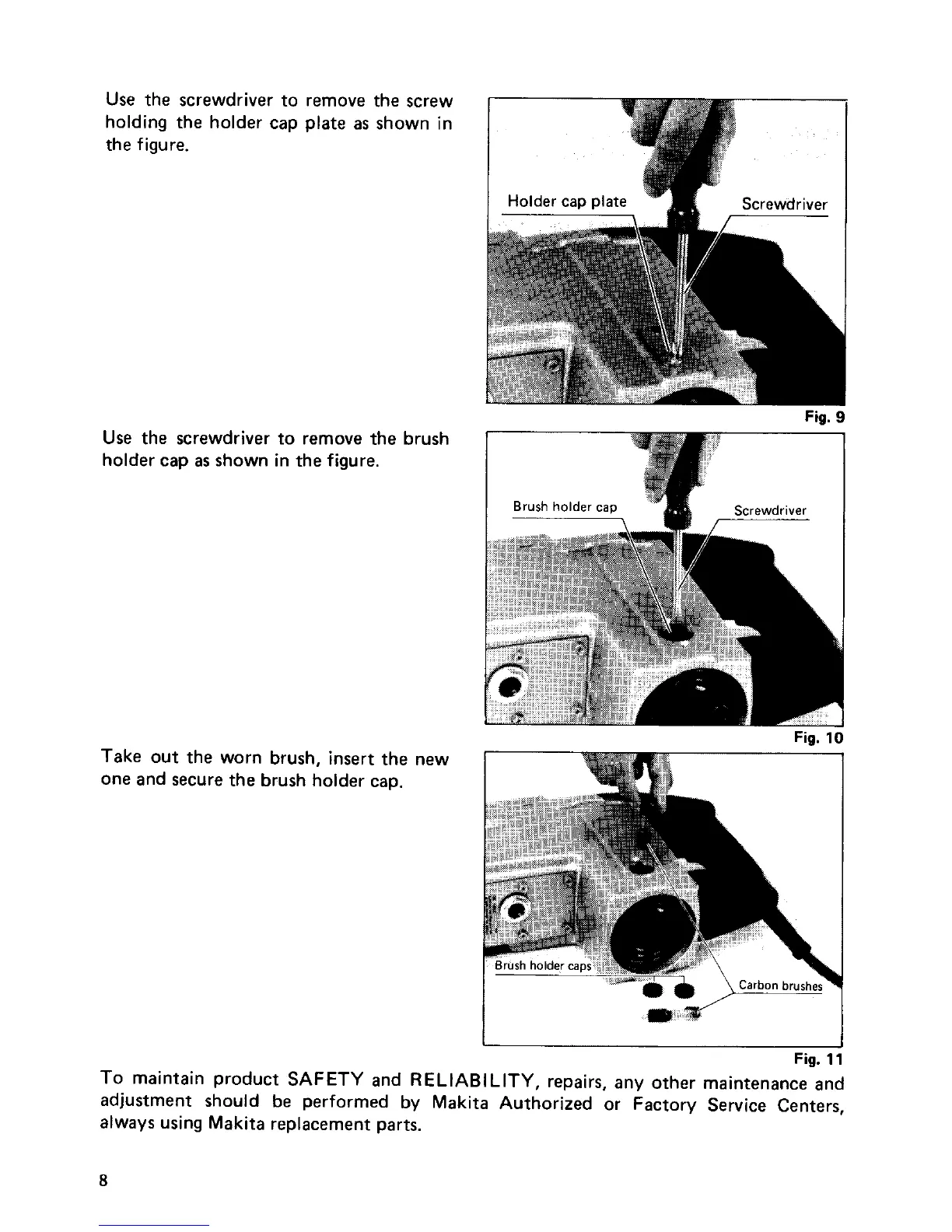

Use the screwdriver to remove the screw
holding the holder cap plate
as shown in
the figure.
Fig. 9
Use the screwdriver to remove the brush
holder cap
as shown in the figure.
Take out the worn brush, insert the new
one and secure the brush holder cap.
Fig. 1
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance and
adjustment should be performed
by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
8
