Makita HM1317C Technical Information

P 18/ 19

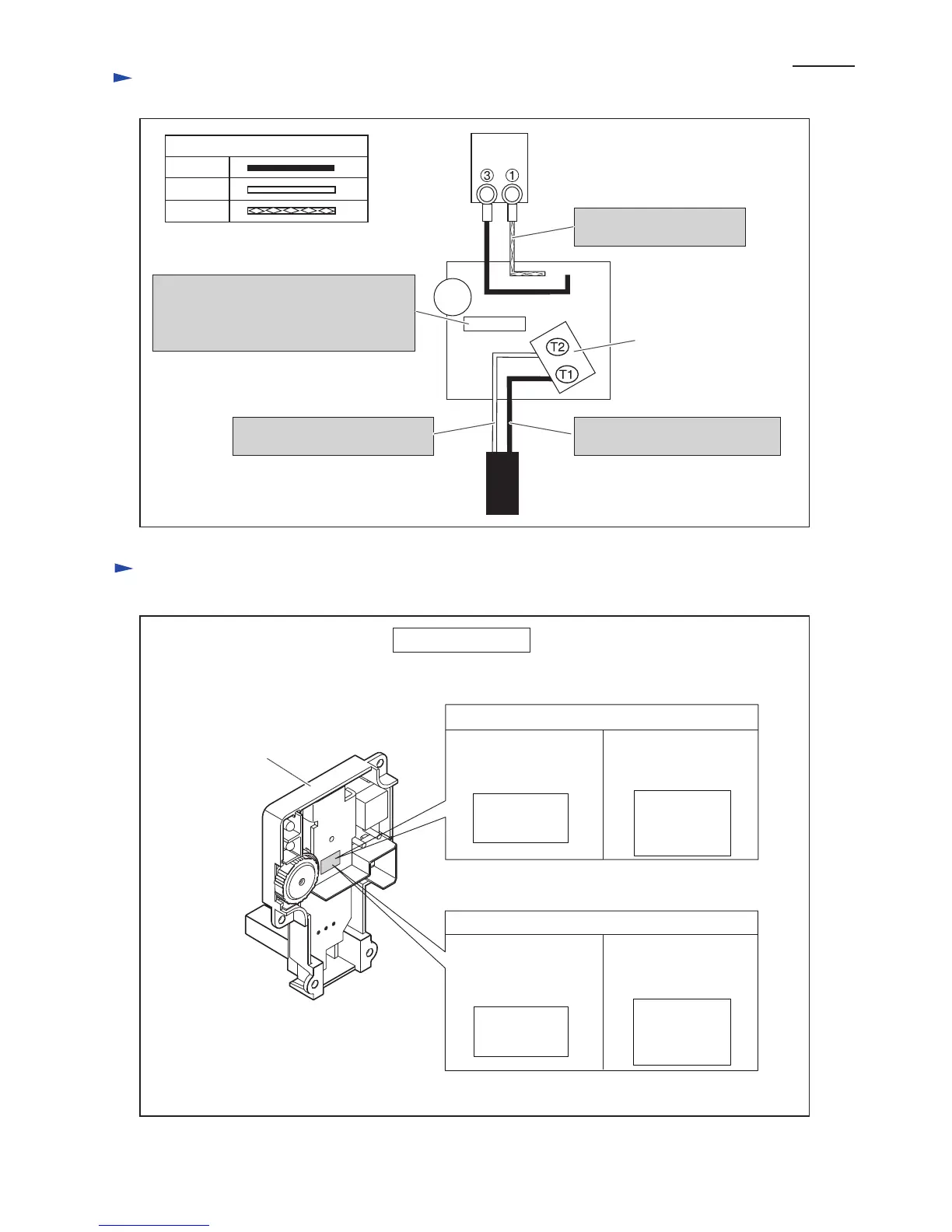

Circuit diagram
Wiring diagram
Color index of lead wires' sheath
Brown Lead wire is used for some
countries
Blue Lead wire is used for some
countries.
White Lead wire is used for
some countries.
Controller
Terminal Block
integrated to the
Controller
Switch
Black
White
Blue
Fig. D-1
Fig. D-2
HM1307C / HM1307CB
without No Load Speed
Suppression
Note in Wiring
6 3 1 9 1 6 - 4
LOT No.
LOW
6 3 1 9 1 7 - 2
LOT No.
HIGH
HM1317C / HM1317CB
with No Load Speed
Suppression
6 3 1 9 1 9 - 8
100 - 130V
200 - 240V
LOT No.
LOW
6 3 1 9 2 0 - 3
LOT No.
HIGH
Distinctive Indication in Low Voltage area
Distinctive Indication in High Voltage area
HM1307C / HM1307CB
without No Load Speed
Suppression
HM1317C / HM1317CB
with No Load Speed
Suppression
The Controller for HM1307C / CB is different from that for HM1317C / CB as listed below.
The Controller for HM1307C / CB
is different from that for HM1317C / CB.
Pay attention to the description in Fig. D-2
when replacing.
Controller

Makita HM1317C Specifications

General

Input power	1510 W
Impact energy (max)	25 J
Vibration level (chiseling)	8.5 m/s²
Toolholder	30 mm
Impact rate	1450 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	129 mm
Width	715 mm
Height	266 mm
Weight	17000 g
