7
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

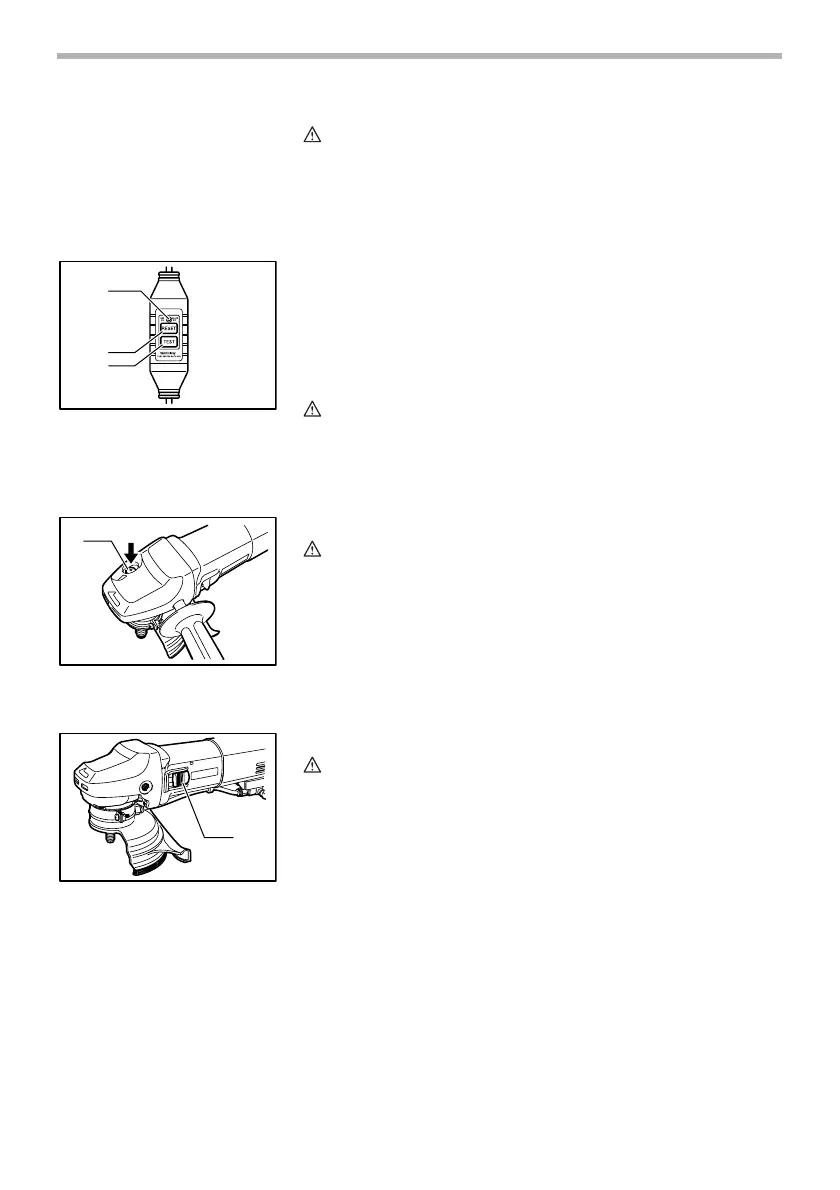

Ground Fault Circuit Interrupter
Connect the tool to a power supply and test the Ground Fault
Circuit Interrupter (GFCI) before using the tool. Push the
RESET (R) button and confirm that the pilot lamp lights.
Push the TEST (T) button and confirm that the pilot lamp
goes out. Push the RESET (R) button again to use the tool.
WARNING:
• Do not use the tool if the pilot lamp does not go out when
the TEST (T) button is pushed.
Shaft lock
CAUTION:
• Never actuate the shaft lock when the spindle is moving.
The tool may be damaged.
Press the shaft lock to prevent spindle rotation when install-
ing or removing accessories.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the
slide switch actuates properly and returns to the “OFF”
position when the rear of the slide switch is depressed.
• Switch can be locked in “ON” position for ease of
operator comfort during extended use. Apply caution
when locking tool in “ON” position and maintain firm
grasp on tool.
To start the tool, slide the slide switch toward the “I (ON)”
position. For continuous operation, press the front of the
slide switch to lock it.
To stop the tool, press the rear of the slide switch, then slide
it toward the “O (OFF)” position.
1. Pilot lamp
2. RESET(R)Button
3. TEST(T)Button
1
2
3
004728
1. Shaft lock
1
006097
1. Slide switch
1
006098
