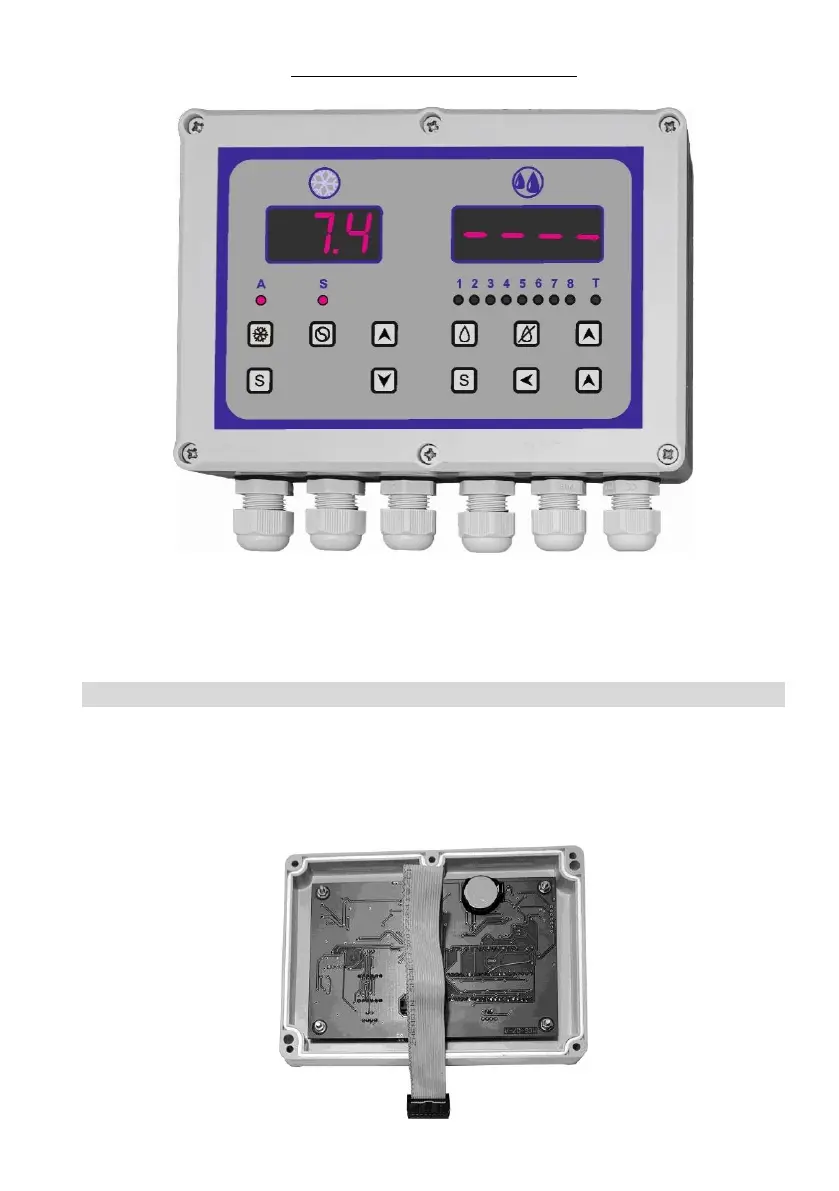

general view of the MCH-07 controller

2. INSTALLING AND CONNECTING THE CONTROLLER.

In order to install the controller, unscrew the six screws and swivel the front of the controller,

paying attention to the cable connecting the upper PCB board with the bottom board. After

unfolding the casing, disconnect this cable. The cable is disconnected by removing the connector

plug located in the bottom plate.
