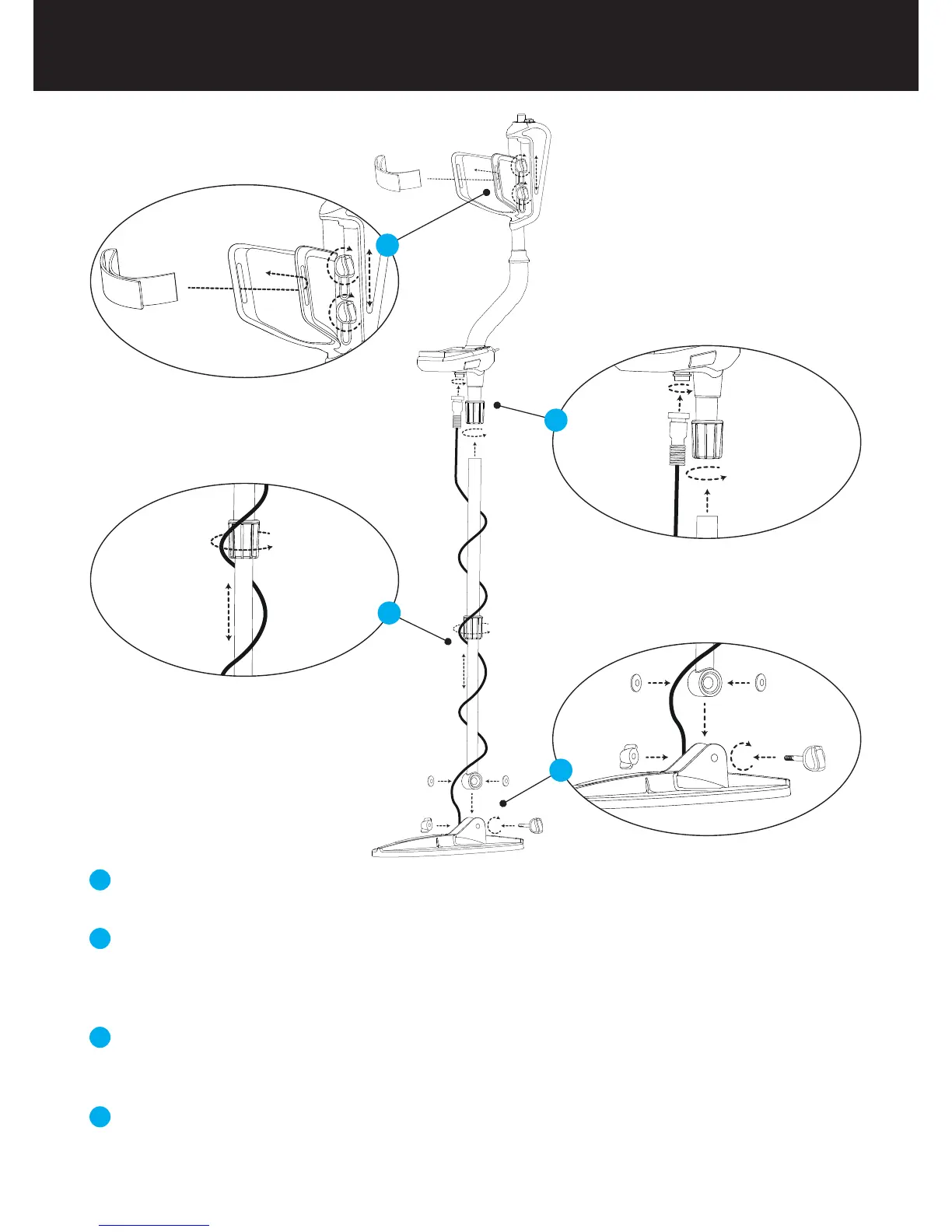

Insert the washers as shown on the telescopic shaft. Install the telescopic shaft to its location
on the search coil. Secure by tightening the screw and nut.
Loosen the twist lock before mounting the telescopic shaft to the upper rod. Press down the pin
and engage the pieces together and tighten the twist lock after the pin is clicked into the hole. Wind
the cable of the search coil on the telescopic shaft without stretching too much. Plug the connector
on the cable to the search coil input socket on the system box and secure by tightening the nut.
Loosen the twist lock of the telescopic shaft to extend or shorten it. Adjust the length of the
shaft by keeping the pin located on the rear pressed down and clicking the pin in any of the
holes. Secure by tightening the twist lock.
Insert the armrest band through its slot as shown in the figure. Loosen the screws and adjust
the armrest position to your comfort by sliding it down or up and secure by tightening the
screws.
1
2
3
4
Assembly
Page_1
1
3
2
4
