Malco Products, Inc., 361 Fairview Avenue, Barberton, Ohio 44203
Phone 800-253-2526 or 330-753-0361; Fax 330-753-2025 9-13-01 REV1 Page 15
MALCO XTRAX™
MODEL 1200 XTRACTOR

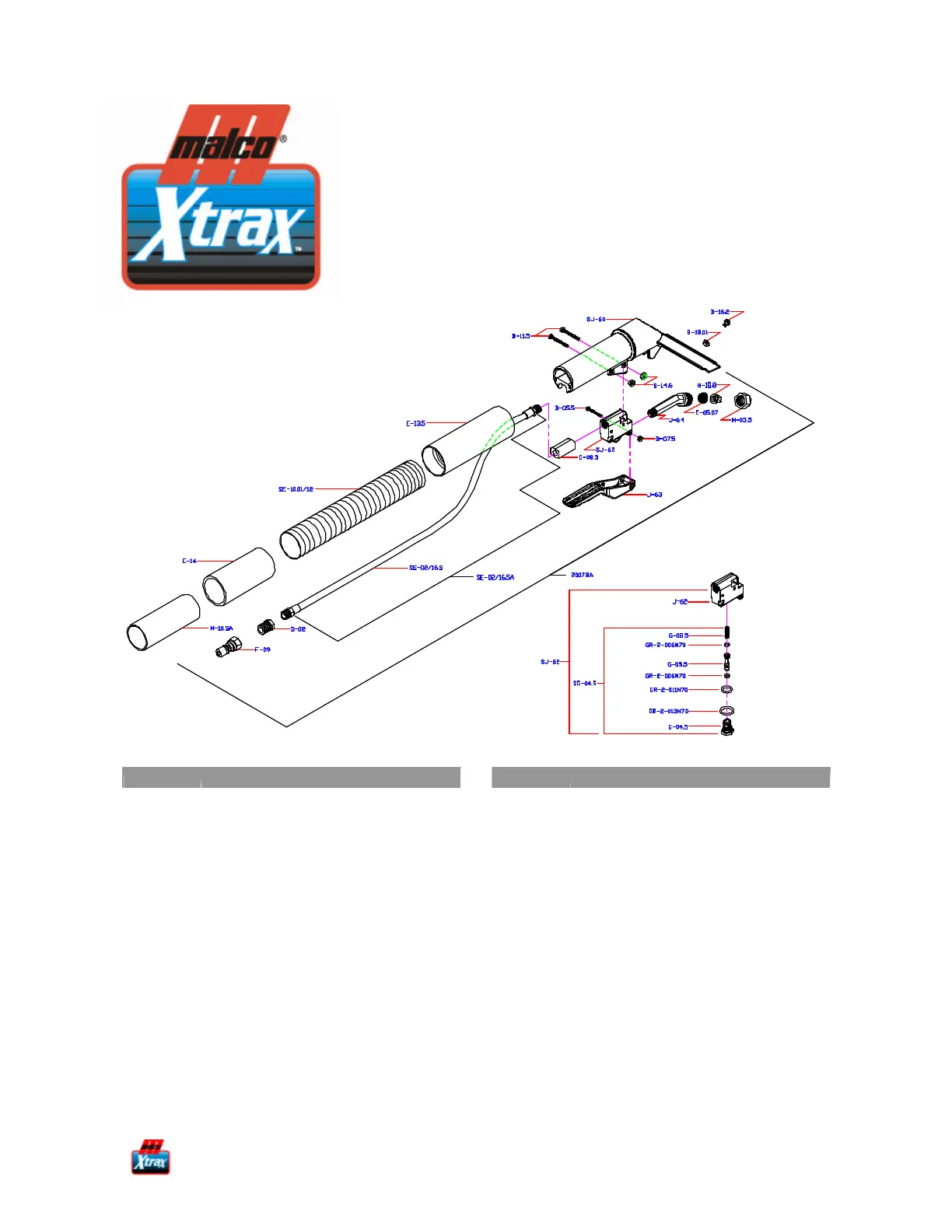

EXPLODED VIEW HANDTOOL
PART # Description QTY.
20078A ASSEMBLY, COMPLETE HANDTOOL 1
B-05.5 4-40 X 7/8 PHXZINC 1
B-07.5 NUT, 4-40 HEX ZINC NYLOK 1
B-11.5 6-32 X 1 PHXZINC 2
B-14.6 NUT, 6-32 HEX ZINC NYLOK 2
B-16.2 8-32 X 3/8 PHXSS 1
B-18.01 NUT 8-32 NYLOK, SS 1
C-05.07 FILTER, 4" DETAIL TOOL 50 MESH 1
C-08.5 GROMMET, CLEAR DETAIL TOOL 1
D-02 BUSHING 1/4 X 1/8 NPT BR 1
E-13.5 CUFF,EXTRN HOSE 1 1/2SLPX1 1/4HOSE 1
E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE 1
F-09 Q/C 1/4" PLUG BR SHUT OFF 1
G-04.5 GUIDE, VALVE STEM HEX BRASS 1
G-05.5 STEM, VALVE SS 4" DETAIL TOOL 1
G-08.5 SPRING, VALVE 4" UPH TOOL 1
PART # Description QTY.
GR-2-006N70 O-RING,2-006 BUNA 70DR 2
GR-2-011N70 O-RING,2-011 BUNA 70DR 1
GR-2-013N70 O-RING,2-013 BUNA 70DR 1
H-03.5 CAP NUT,TEE JET POLYPRO 1
H-18.8 JET, 110015 STD FLAT SPRYTIP PLSTIC 1
J-62 VALVE, 4" DETAIL TOOL AS MOLDED 1
J-63 TRIGGER, 4" DETAIL TOOL 1
J-64 ELBOW, 4" DETAIL TOOL 1
M10.5A COUPLER, 1.5" VAC HOSE ALUM 1
SE-02/16.5 HOSE,1/8BLK1/8MPTX1/8MPT16.5" 1
SE-02/16.5A HOSE,1/8BLK 16.5" ASM W/EXTRN CUFF 1
SE-10.01/12 HOSE, 1 1/4 VAC GREY ZEPHR 12" LONG 1
SG-04.5 STEM ASM 4"TOOL BUNA W/BRASS CAP 1
SJ-60 HANDLE ASM, 4" DETAIL TOOL 1
SJ-62 VALVE,NYLON COMPLETE STD 4"DETAIL 1
