11MALLORY TECHNICAL SUPPORT (775) 882-6600 tech@mrgasket.com
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEMMICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
BLACK (SMALL 18 GA)
ORANGE
COIL
+

WHITE
NOT USED
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
RED (SMALL 18 GA)
FROM ORIGINAL
COIL (+) TERMINAL
BLACK (M)
ORANGE (M+)
CHRYSLER MODULE
LEAVE DISCONNECTED
VIOLET (+)GREEN ()
GREEN
PURPLE
6 FT EXTENSION CABLE
CUT ONE END AND
SPLICE AS SHOWN
SPLICE HERE

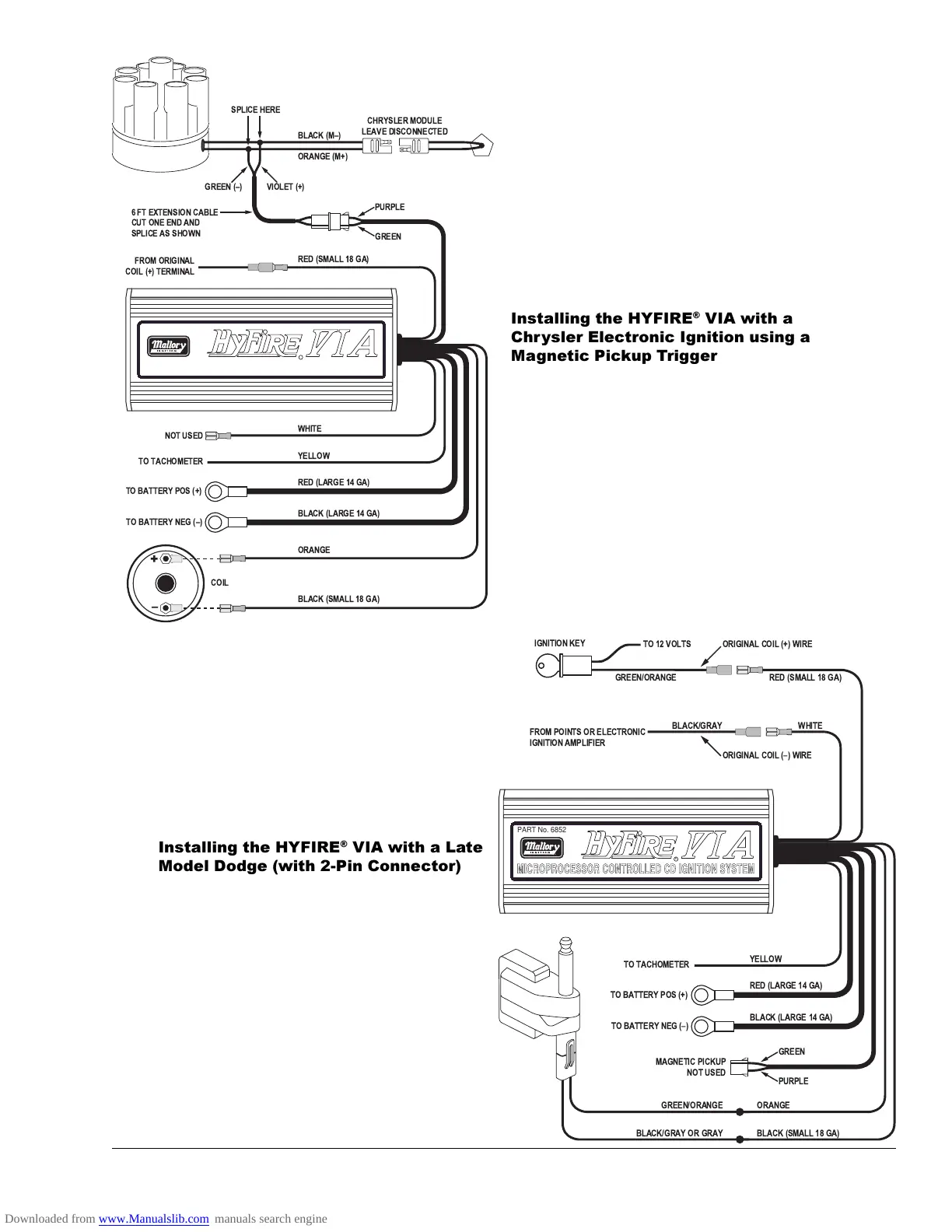

Installing the HYFIRE
®
VIA with a
Chrysler Electronic Ignition using a
Magnetic Pickup Trigger
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
BLACK (SMALL 18 GA)
ORANGE
BLACK/GRAY OR GRAY
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
WHITE
ORIGINAL COIL (+) WIRE
GREEN
PURPLE
GREEN/ORANGE
RED (SMALL 18 GA)GREEN/ORANGE
IGNITION KEY
TO 12 VOLTS
MAGNETIC PICKUP
NOT USED
BLACK/GRAY
FROM POINTS OR ELECTRONIC
IGNITION AMPLIFIER
ORIGINAL COIL () WIRE
Installing the HYFIRE
®
VIA with a Late
Model Dodge (with 2-Pin Connector)
