Mallory 6852M - Page 10

MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 8970110
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEMMICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
BLACK (SMALL 18GA)
ORANGE
YELLOW
TO TACHOMETER
BLACK (LARGE 14GA)
INSULATE UNUSED
ENDS OF JUMPERS
TO BATTERY NEG ()
RED (LARGE 14GA)
TO BATTERY POS (+)
WHITE
RED (SMALL 18GA)
GREEN
PURPLE
MAGNETIC PICK-UP
(NOT USED)
RED JUMPER
WHITE JUMPER
PART OF MALLORY
HEI KIT P/N 29008
(NOT INCLUDED)

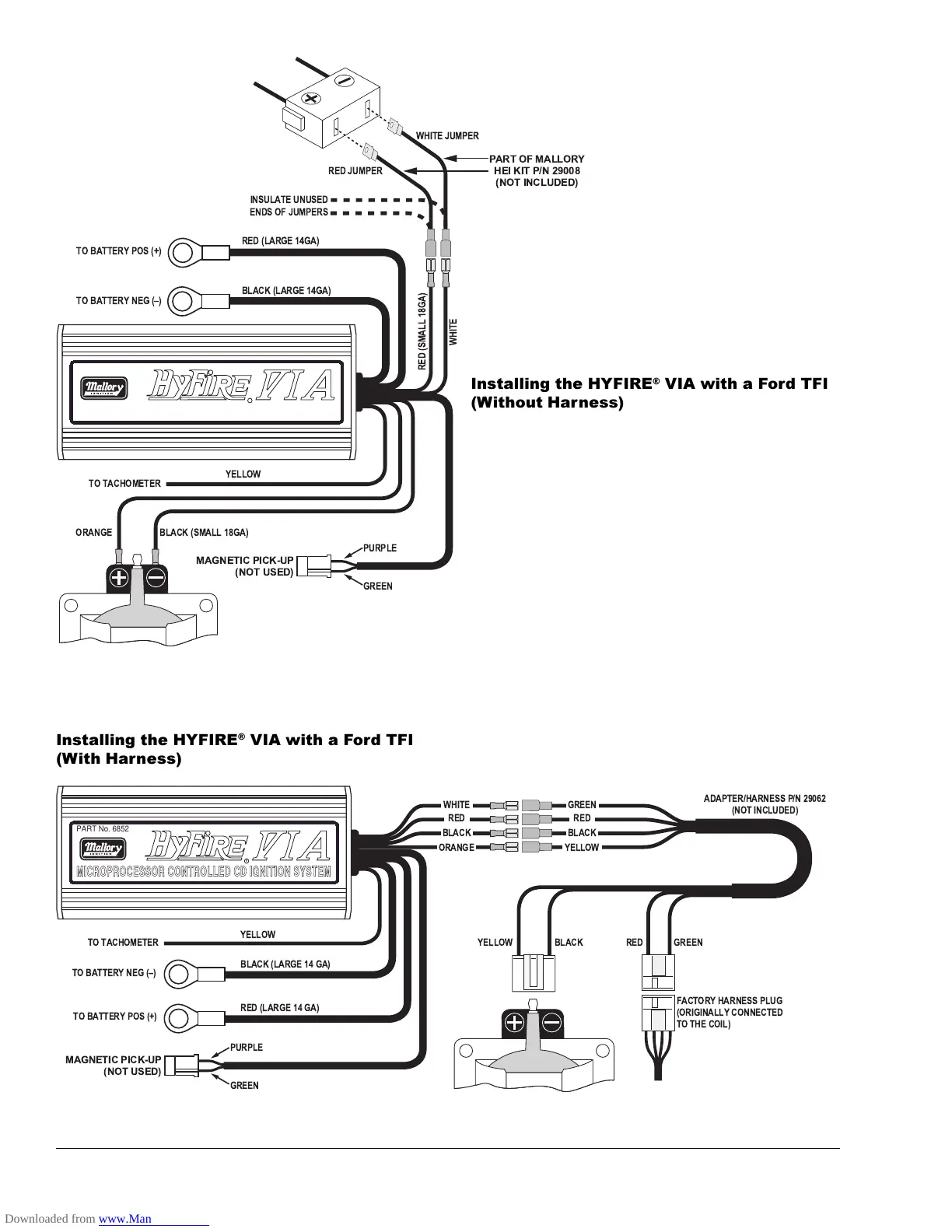

Installing the HYFIRE
®
VIA with a Ford TFI
(Without Harness)
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEMMICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
YELLOW
TO TACHOMETER
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
RED (LARGE 14 GA)
TO BATTERY POS (+)
GREEN
PURPLE
MAGNETIC PICK-UP
(NOT USED)
WHITE
RED
BLACK
ORANGE
GREEN
RED
BLACK
YELLOW
ADAPTER/HARNESS P/N 29062
(NOT INCLUDED)
YELLOW BLACK
FACTORY HARNESS PLUG
(ORIGINALLY CONNECTED
TO THE COIL)
RED GREEN
Installing the HYFIRE
®
VIA with a Ford TFI
(With Harness)
