Mallory 6852M - Page 6

MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 897016
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEMMICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R

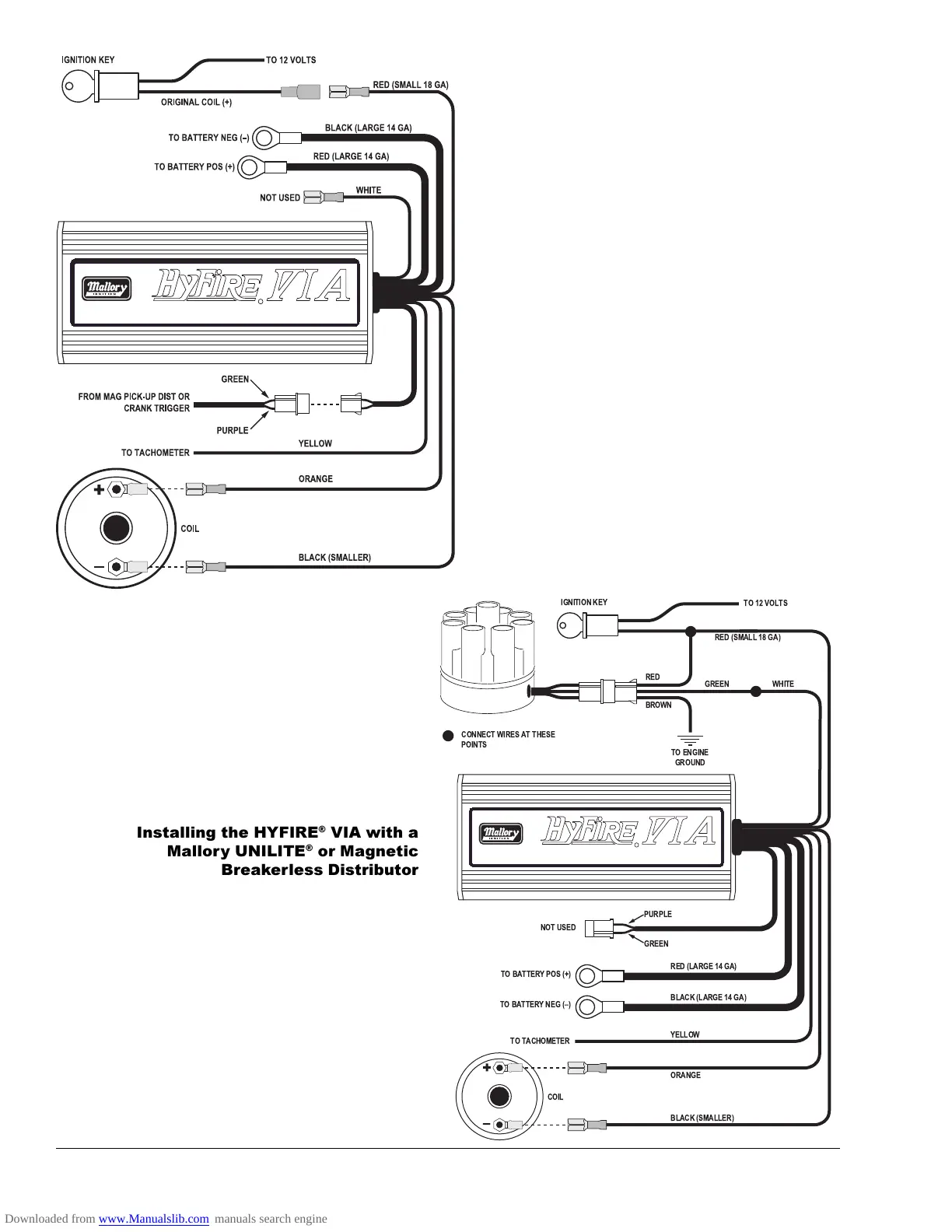

Installing the HYFIRE
®
VIA with a Magnetic
Pickup Distributor or Crank Trigger
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEMMICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
IGNITION KEY
TO 12 VOLTS
BLACK (SMALLER)
ORANGE
YELLOW
COIL
+

WHITEGREEN
BROWN
RED (SMALL 18 GA)
TO TACHOMETER
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
RED (LARGE 14 GA)
TO BATTERY POS (+)
RED
TO ENGINE
GROUND
CONNECT WIRES AT THESE
POINTS
NOT USED
GREEN
PURPLE
Installing the HYFIRE
®
VIA with a
Mallory UNILITE
®
or Magnetic
Breakerless Distributor
