7MALLORY TECHNICAL SUPPORT (775) 882-6600 tech@mrgasket.com
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
BLACK (SMALLER)
ORANGE
YELLOW
COIL
+

WHITE
NOT USED
REDORIGINAL COIL (+)
IGNITION KEY TO 12 VOLTS
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG ()
GREEN
PURPLE

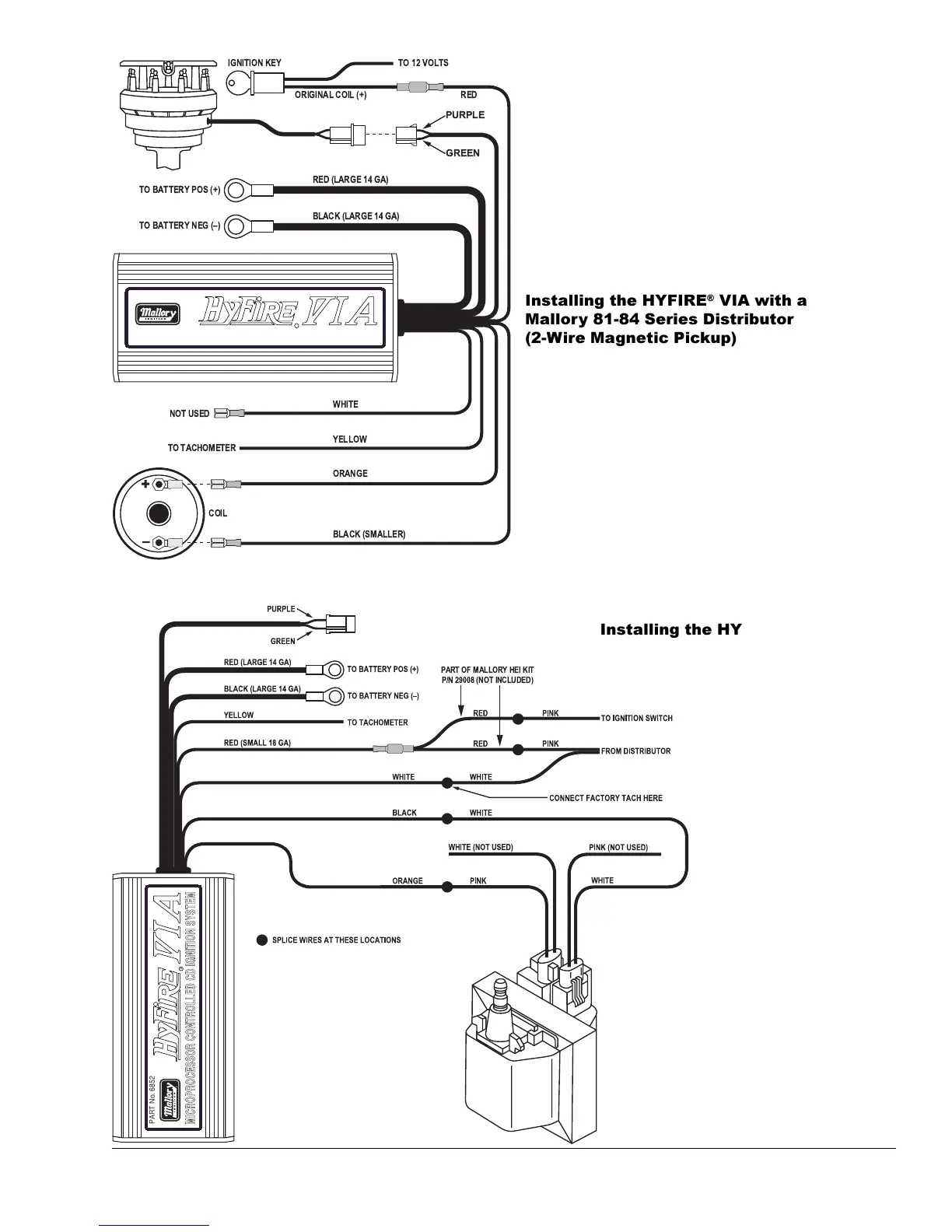

Installing the HYFIRE
®
VIA with a
Mallory 81-84 Series Distributor
(2-Wire Magnetic Pickup)
®
PART No. 6852
MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM
R
PART OF MALLORY HEI KIT
P/N 29008 (NOT INCLUDED)
Installing the HYFIRE
®
VIA with a
Dual Connector Coil HEI System
