INSTRUCTION MANUAL
Dimmable LED driver, 8W
99 741 08Model: HE2008-A
PUSH BUTTON SWITCH FOR DIMMING
• On/Off: Short push on the switch.
• Stepless dimming: Long push on the switch.
• For fine tuning of light level: With every other long push, the light level goes the opposite direction.
• Built-in with permanent memory: Light returns to the previous dimming level when switched off and on again, even
at power failure.
SYNCHRONIZATION
No limitation on the number of drivers when connected to the same switch, thanks to the MCU programme. This
means there is no need for any additional synchrony wire in larger installations, where many drivers should be control-
led by one switch.
For the resynchronization to work correctly when more than one driver is connected to the same push button, please
follow the steps below after the drivers are connected:
• Press the push button for more than one second (long push), followed by a short push (<1s).
• Now that the devices are switched off, do a long push, the system will now be resynchronized.

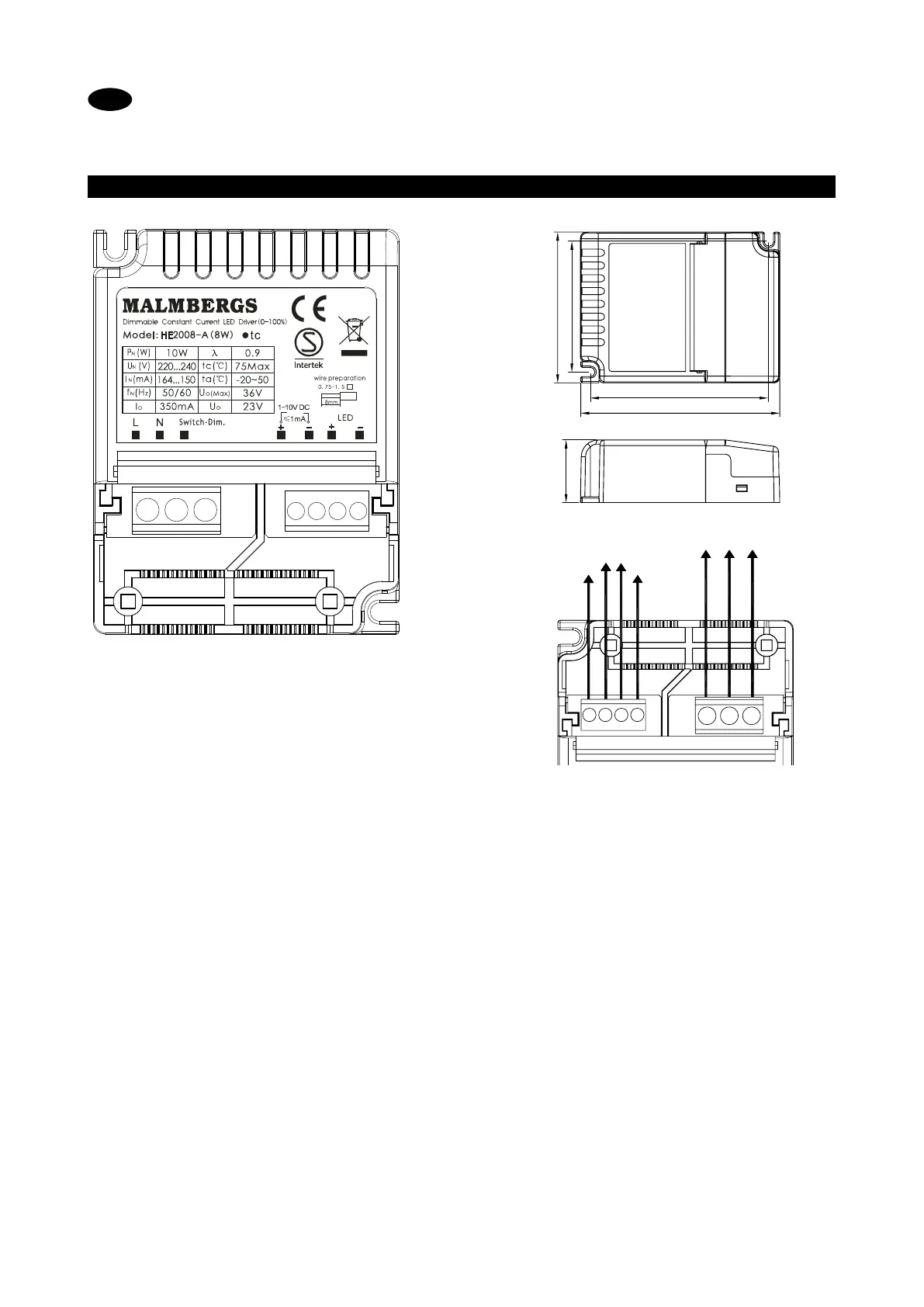

22
53
46
70
62.5
(mm)
Switch-Dim
LED +
LED -
1-10V -
1-10V +
LN
