Malmbergs HE2008-A - Wiring Diagram; Specifications

BC/AF-JZ/JA-120620
Malmbergs Elektriska AB, PO Box 144, SE-692 23 Kumla, SWEDEN
Phone: +46 (0)19 58 77 00 Fax: +46 (0)19 57 11 77 info@malmbergs.com www.malmbergs.com
Model HE2008-A, 8W
Rated voltage 220-240V AC, 50/60Hz
Rated current 0.045A (max)
Output voltage 36V DC (max)
Operating temperature Ta: -20~50ºC Tc: 75ºC
Output current & load 350mA (1-6 pcs) 23V 1.2W
Abnormal protection Output short-circuit protection with auto reset
Overheating protection Overheating protection with auto-reset
EMC standard EN55015, EN61547
Safety standard EN61347-1, EN61347-2-13
Certification SEMKO, CE, EMC
Protection class IP20, built-in type

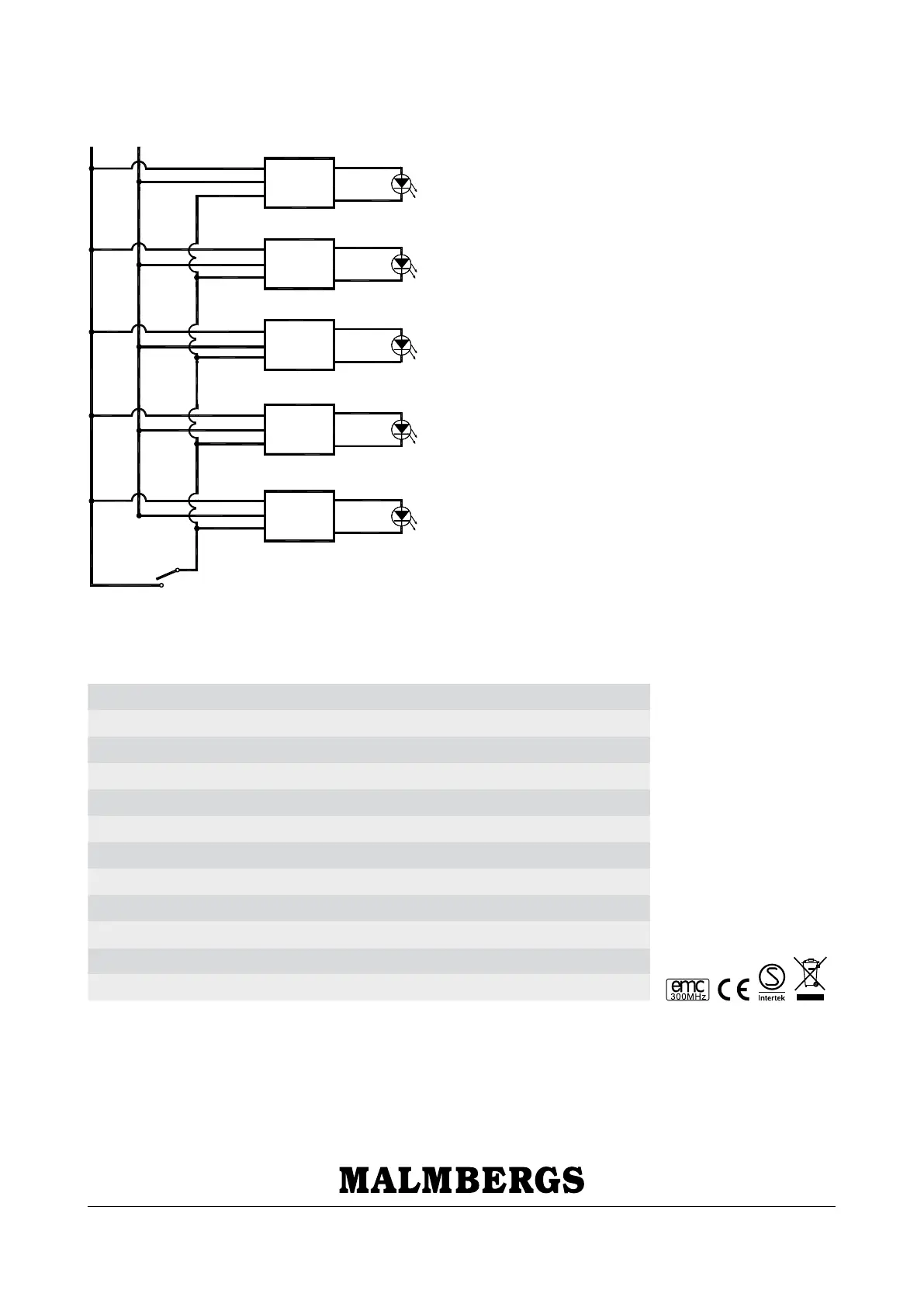

WIRING DIAGRAM
L N
L
N
Switch-Dim
L
N
Switch-Dim
L
N
Switch-Dim
L
N
Switch-Dim
L
N
Switch-Dim
Push button switch
SPECIFICATIONS
+
-
+
-
+
-
+
-
+
-
