Mamiya Professional C220 User Manual

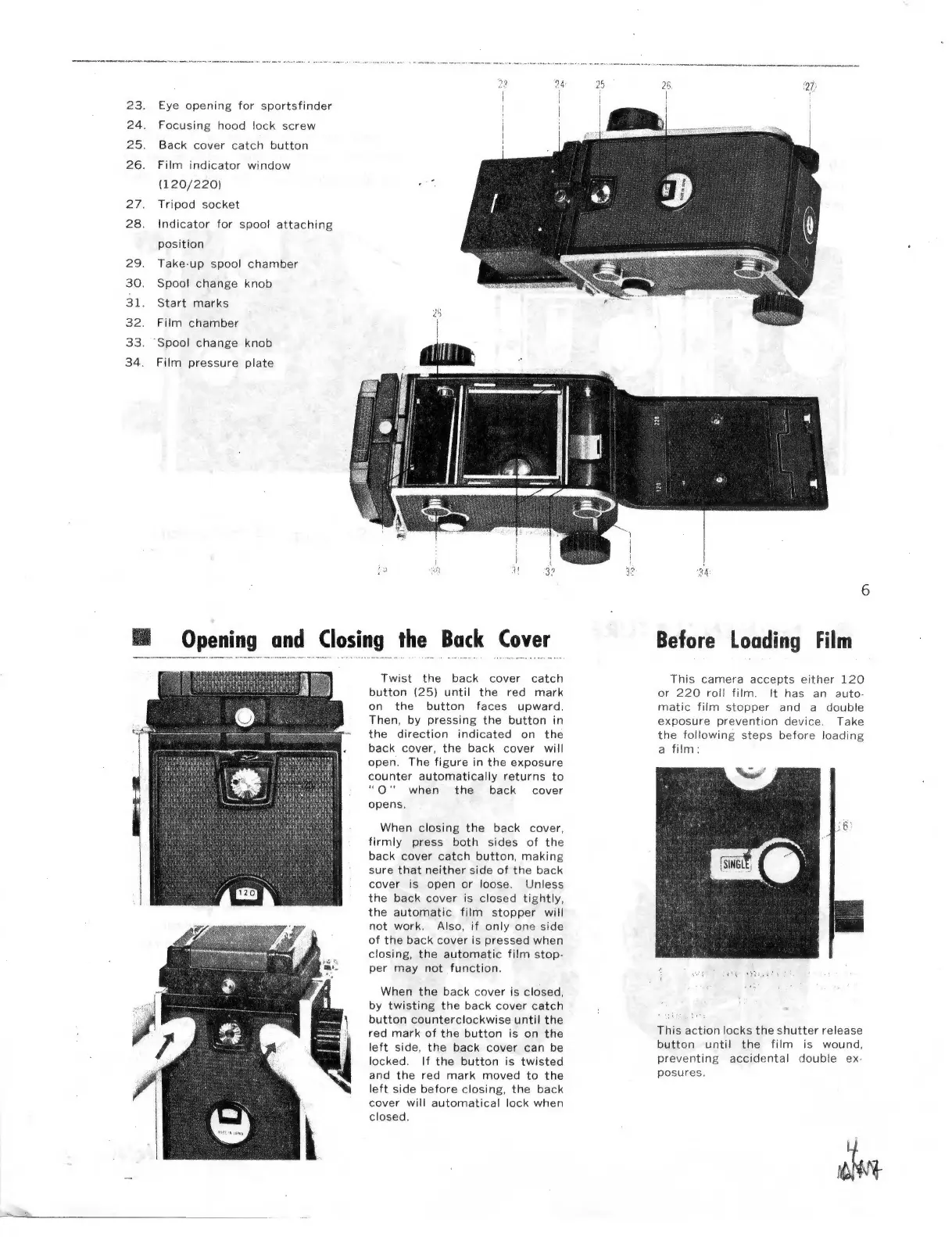

27.
28.
29.
30.
31,
32.
33.
34.
Eye opening for sportsfinder
Focusing hood lock screw
Back cover catch button
Film indicator window
(120/220)
Tripod socket
Indicator for spool attaching
position
Take-up spool chamber
Spool change knob
Start marks
Film chamber
“Spool change knob
Film pressure plate
= Denning ind Casings: the Bak “over
Twist the back cover catch
button (25) until the red mark
on the button faces upward.
Then, by pressing the button in
the direction indicated on the
back cover, the back cover will
open. The figure in the exposure
counter automatically returns to
“O” when the back cover
opens,
When closing the back cover,
firmly press both sides of the
back cover catch button, making
sure that neither side of the back
cover is open or loose. Unless
the back cover is closed tightly,
the automatic film stopper will
not work. Also, if only one side
of the back cover is pressed when
closing, the automatic film stop-
per may not function.
When the back cover is closed,
by twisting the back cover catch
button counterclockwise until the
red mark of the button is on the
left side, the back cover can be
locked. If the button is twisted
and the red mark moved to the
left side before closing, the back
cover will automatical lock when
closed.
Before Loading Film
This camera accepts either 120
or 220 roll film. It has an auto-
matic film stopper and a double
exposure prevention device. Take
the following steps before loading
a film:
This action locks the shutter release
button until the film is wound,
preventing accidental double ex-
posures.
ave
