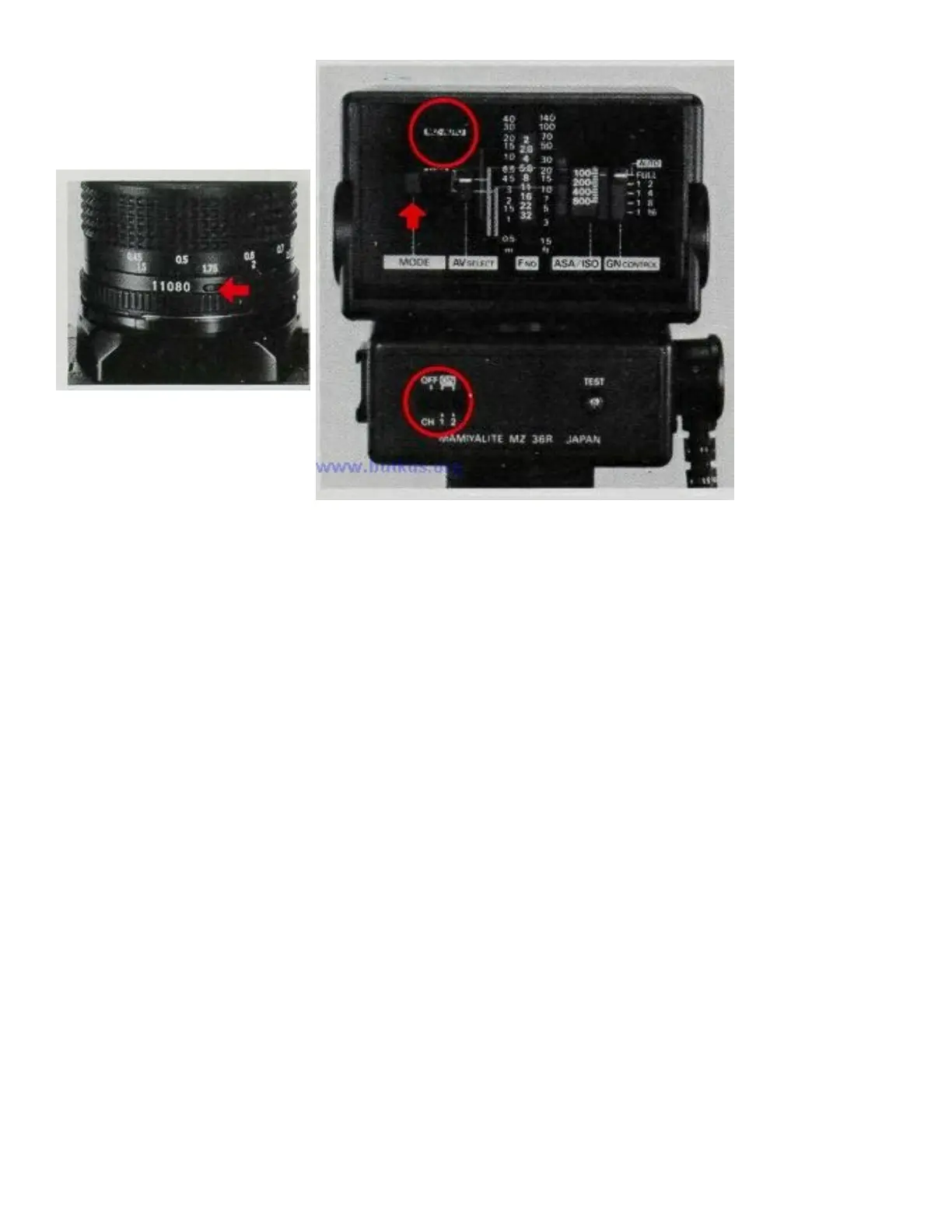

4. Set the focusing distance priority switch at the base of the EF lens to ON by clicking it as far as it will go in
the direction of the arrow.
5. Turn the flash unit power switch on and set the selector at MZ-A. Press the shutter button partway and the
indication EF appears in the viewfinder, take your picture. The shutter is set automatically at 1/60 sec. and the
flash exposure is controlled according to the distance to the subject.
Note:
The focusing distance priority switch is ON when positioned next to the serial number and OFF when
positioned at the opposite side where an orange mark appears in the groove. For the general flash photography,
keep the switch ON. For bounce flash photography with the Mamiyalite MZ 36R flash unit, for example, make
sure the switch is OFF. This way the flash is operated on the reflected back light from the subject instead of the
subject distance.4www.butkus.org
