Mamiya ZM User Manual

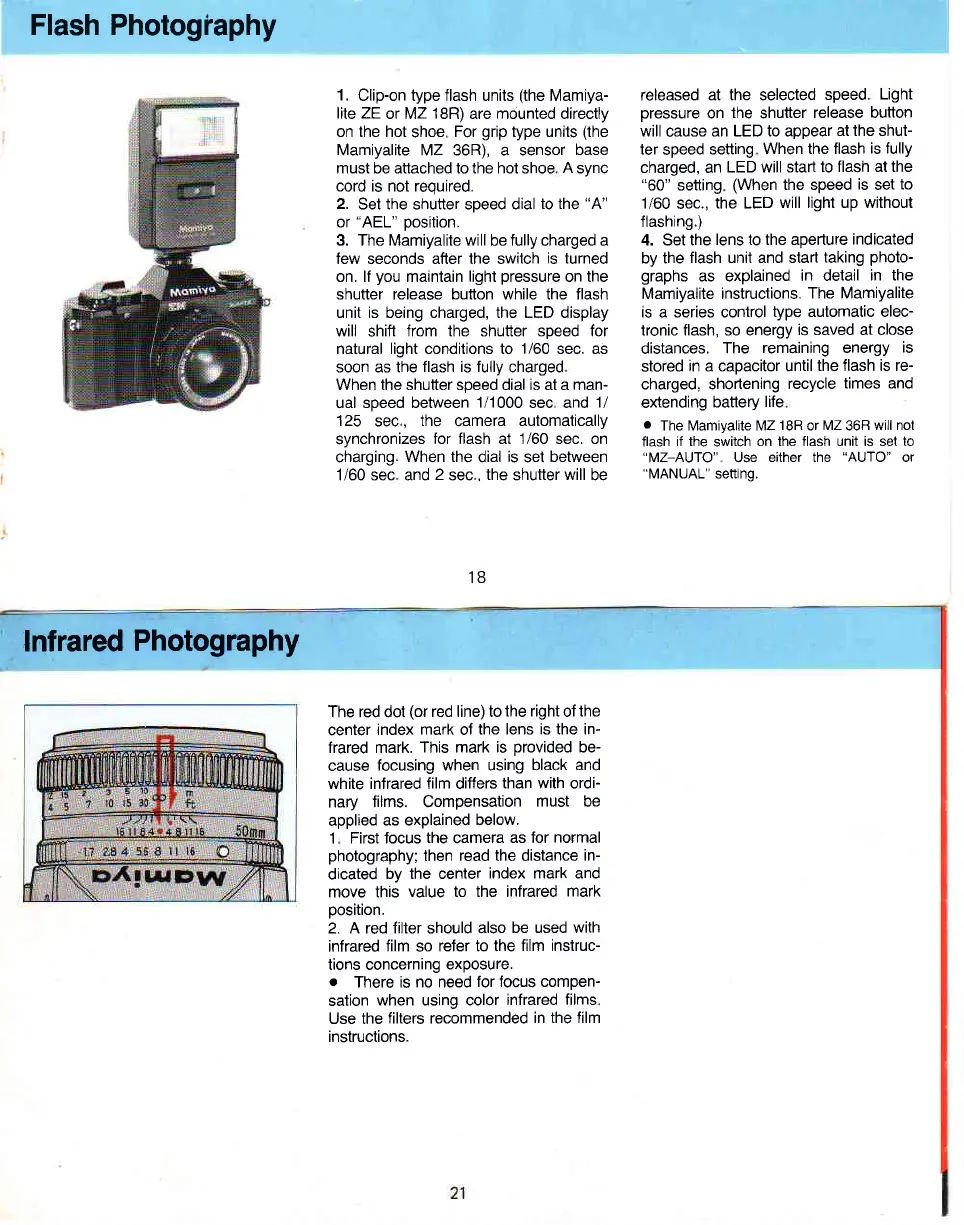

Flash Photogiaphy
1.
Clip-on typeflash units
(the
Mamiya-
lite ZE
or MZ
18R)
are mounted directly
on the hot
shoe
For
grip
type units
(the
Mamiyalite MZ 36R), a sensor
base
must be attached to the hot shoe
A
sync
cord is not required.
2.
Set the shutter soeed dial
to the
"A''
or
"AEL"
position.
3. The Mamiyalite wilt be fully charged a
few seconds after lhe switch
is turned
on. lf
you
maintain light
pressure
on the
shutter release button while the flash
unit is being charged, the LED display
will
shift
from the shutter speed for
natural light conditions to 1/60 sec. as
soon as the
flash is fully
charged
When the shutter speed dial is at a man-
ual soeed between
.1/1000
sec and
1/
125
sec,
the
camera
automatically
synchronizes
for flash at 1/60 sec. on
charging
When the
dial
is
set
between
1/60 sec and
2
sec,
the
shutter
will
be
released at the selected
speed
Light
oressure on
the
shutter
release button
will
cause
an LED to appear
at the shuf
ter
speed
setting
When the flash
is fully
charged, an
LED will start
to flash at the
"60"
setting
(When
the speed
is
set
to
1/60
sec.,
the LED
will light up without
flashing.)
4. Set the
lens to the apedure
indicated
by the
flash unit and start
taking
photo-
graphs
as explained
in detail
in the
Mamiyalite instructions.
The Mamiyalite
is a series control
type automatic elec-
tronic flash, so energy
is saved at close
distances.
The remaining energy
is
stored
in a capacitor until
the flash is re-
charged, shortening
recycle
times and
extending
battery
life
.
The lvlamiyalite lVlZ
18R
or
MZ
36R
will not
flash
if the
switch
on the flash unit is set
to
"MZ-AUTO"
Use
either the
"AUTO"
or
"MANUAL"
setting.
18
Infrared
Photography
The red dot
(or
red line) to
the right
of
the
center
index
mark
oJ
the lens is the in-
frared mark.
This mark is
provided
be-
cause
focusing when using black
and
white infrared film differs
than with ordi-
nary films. Compensation
must
be
applied
as explained
below.
1 First focus
the
camera
as for
normal
photography;
then read
the
distance
in-
dicated
by the center
index mark and
move this
value to the infrared
mark
oosition.
2. Ared filter should also
be used with
infrared
film
so
refer to the
film instruc-
tions concerning
exposure.
o
There is no need
for focus compen-
sation
when using color
infrared films
Use the
filters recommended
in the film
instructions.
www.orphancameras.com

Mamiya ZM Specifications

Power

power source	Two 1.5V alkaline-manganese LR44 or two 1.5V silver oxide SR44 batteries
battery type	LR44 (A-76), SR44 (G-13)
battery voltage	1.5V

Camera Specifications

type of camera	35mm single-lens reflex (SLR), aperture priority automatic exposure camera with manual override
picture format	24mm x 36mm
shutter speed range auto	4 sec. to 1/1000 sec.
shutter speed range manual	2 sec. to 1/1000 sec.
film speed range	ASA/ISO 12-3200

Weight and Dimensions

dimensions	140mm x 88mm x 52mm
weight	480 g
tripod socket depth	7/32 in (5.5 mm)
