Transport,
Packaging and Storage
38
Carefully read these Operating Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.

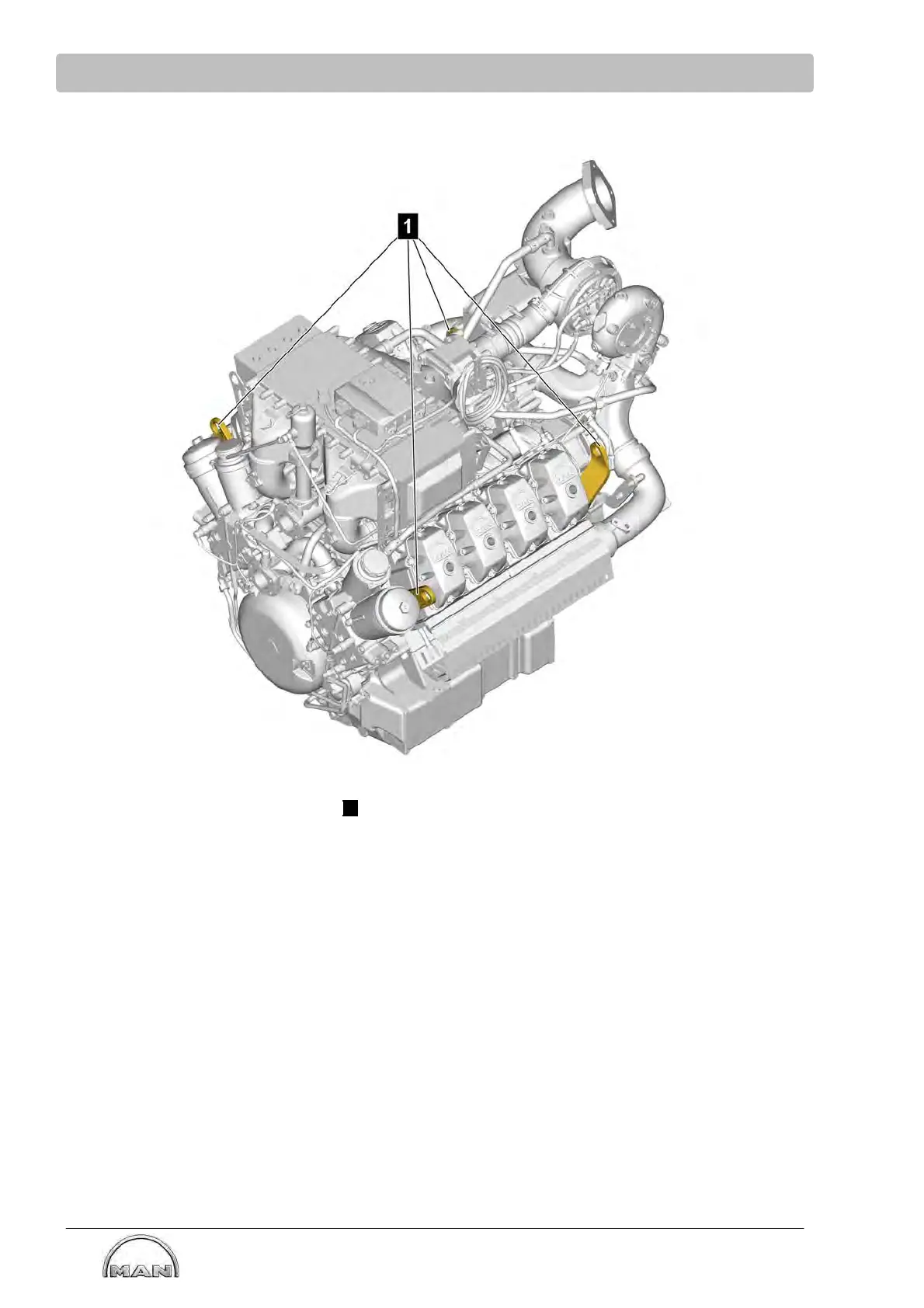

Attachment points E3268 LE212, E3268 LE222
For lifting the engine, 3 crane hook lugs
1
are attached to the engine.
39
41
Table of Contents
Default Chapter
4
Information and Copyright
4
Table of Contents
5
1 Foreword
9
Information about These Instructions
9
Supplementary Publications
9
Further Publications
9
Symbol Explanation
10
Limitation of Liability
11
Copyright Protection
11
Applicable Documents
11
Spare Parts
12
Disposal
12
Warranty Provisions
13
Product Support
13
2 General Safety Instructions
15
Intended Use
15
Content of the Installation and Operating Instructions
16
Engine Modifications and Conversions
16
Operator's Responsibility
16
Personnel Requirements
17
Qualifications
17
Unauthorised Personnel
17
Instruction
17
Personal Protective Equipment
18
Particular Dangers
19
Safety Equipment
22
Response to Danger and Accidents
23
Signs
24
Weight Data E3268 LE212/LE222
25
Environmental Protection
26
3 Engine Model Plate
27
Explanation of Motor-Nr./Engine No. (Engine Identification Number)
28
Explanation of Model Designation
28
4 Design and Function
29
Engine Application Fields
29
Engine Design and Engine Equipment
29
Engine Views E3262 LE202
31
Front Left View
31
Front Right View
32
Engine Views E3268 LE212
33
Front Left View
33
Front Right View
34
5 Transport, Packaging and Storage
35
Requirements
35
Safety Instructions
35
Transport Inspection
37
Transport
38
Packaging
42
Storage
42
6 Installation and Commissioning
43
Notes Regarding Installation and Commissioning
43
Requirements
43
Safety Instructions
43
Engine Installation
44
Interfaces between Engine and Plant
44
Installation Instructions
46
Installation Drawing
46
Screw and Bolt Connections
46
Completion of the Engine and Assembly of the Drive System
47
Mounting an Alternator on the Flywheel Housing
47
Checking Crankshaft Axial Clearance
48
Connecting the Cooling System
49
Connecting the Engine Cooling
49
Mounting the Gas Inlet
50
Mounting the Exhaust System
51
Exhaust Gas Outlet on Engine
51
Connecting the Exhaust System to the Engine
52
Connecting the Electrical System
53
Starter
53
Torques for Screw and Bolt Connections to Works Standard M 3059
54
First Commissioning
55
Commissioning
56
Gas System
56
Adding Coolant
57
Filling Engine Oil
58
7 Operation and Use
59
Requirements
59
Safety Instructions
59
Preparations Prior to Operation
60
Checking the Gas Quality, Opening the Gas Supply
60
Checking the Coolant
61
Topping up the Coolant
61
Check Engine Oil Level
62
Topping up the Engine Oil
63
Operation
64
Starting
64
Operation Monitoring System
65
Emergency Shutdown
65
Stopping
65
Data Storage Box
66
8 Maintenance and Care
67
Requirements
67
Safety Instructions
67
Maintenance Schedule
68
Maintenance Schedule for Natural-Gas Operation
69
Maintenance Schedule for Special Gas Operation
72
Maintenance Work
77
Engine Oil Change
77
Changing the Coolant
81
9 Faults
83
Requirements
83
Safety Instructions
83
Troubleshooting Chart
84
10 Decommissioning and Recommissioning
89
Requirements
89
Safety Instructions
89
Temporary Decommissioning of an Engine
90
Recommissioning of Decommissioned Engines
91
Commissioning of Preserved Engines to man Works Standard M 3069
91
Commissioning of Non-Preserved Engines
91
11 Technical Data
93
Dimensions and Weight
93
E3268 Le212/Le222
93
E3262 Le202/Le212
93
Installation Location and Space Requirements
93
Engine Data
94
E3268 Le212/Le222
94
E3262 Le202/Le212
96
12 Installation Drawing
99
Installation Drawing E3268 LE212/LE222
99
Installation Drawing E3262 LE202/LE212
105
13 Indices
113
Abbreviations
114
List of Keywords
115
