Ref. # Part # Description Qty.
1 14277 Housing, Crankcase RH - 150cc 1
2 14278 Bushing, Engine Hanger - 150cc 2
3 14279 Gasket, Crankcase - 150cc 1
4 14280 Housing, Crankcase LH - 150cc 1
5 14558 Grommet 1
6 14281 Bolt, M10 x 1.25 x 15 FHCS 1
7 14282 Washer, M10.2 x 18 x 1.3 Flat 1
8 14283 Cover, Small Left 1
9 14284 O-Ring, M108 x 2 1
10 14559 Pin 1
11 14285 O-Ring, M6 x 1.8 2
12 50104 Seal, M19.8 x 30 x 5 1
13 14286 Bolt, M6 x 1.00 x 18 FHCS 4
14 14287 Pin, M10 x 14 Dowel 2
15 14288 Bolt, M12 x 1.5 Special 1
16 14289 Washer, M12 Flat 2
17 14290 Seal, M20 x 32 x 6 2
18 14276 Tensioner, Cam Chain - 150cc 1
19 50016 Pin, M8 x 14 Dowel 2
20 14291 Stud, M8 x 1.25 x 195.5 2
21 14292 Stud, M8 x 1.25 x 187.5 2
22 14293 Washer, M8 Flat 4
23 14294 Nut, M8 x 1.25 Flange Head 4
24 14295 Bolt, M6 x 1.00 x 50 FHCS 2
25 14501 Spacer, Oil - 150cc 1
26 14296 Bolt, M6 x 1.00 x 12 FHCS 2

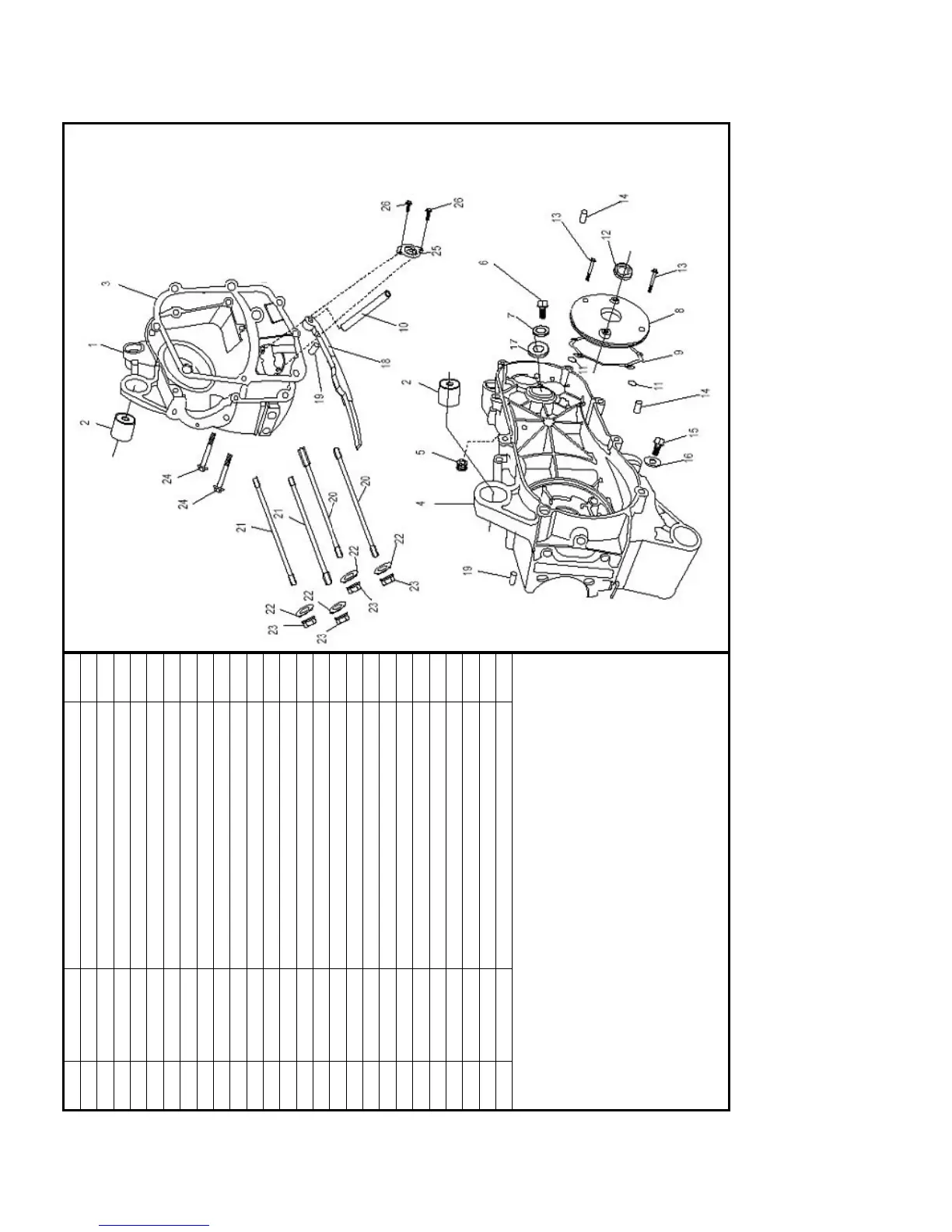

Section 3 - Engine Crankcase
10-31-07
ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
