Ref. # Part # Description Qty.
1 14297 Housing, Outer Transmission - 150cc 1
2 14298 Gear, Pri Drive - 150cc 1
3 14299 Gear, Sec Drive - 150cc 1
4 14300 Asm, Shift Gear Cluster F/N/R - 150cc 1
5 14301 Gear, Final Drive Shaft 1
6 14302 Asm, Shift Selector - 150cc 1
7 14303 Pawl, Shift Selector - 150cc 1
8 14304 Rod, Shift Pawl - 150cc 1
9 14305 Shaft, Shifter Cam - 150cc 1
10 14306 Gasket, Transmission Case - 150cc 1
11 14307 Tube, Transmission Vent 1
12 14308 Nipple, Vent Tube 1
13 14309 Ball, Shift Indent - 150cc 1
14 14310 Spring, Shift Indent - 150cc 1
15 14311 Gasket, Shift Indent - 150cc 1
16 14312 Bolt, Shift Indent - 150cc 1
17 14502 Outlet, Drain - 150cc 1
18 14313 Bolt, Drain/Fill Plug - 150cc 2
19 14314 Gasket, Trans Drain Plug - 150cc 2
20 14296 Bolt, M6 x 1.00 x 12 FHCS 2
21 14315 Washer, M6 Flat 2
22 14287 Pin, M10 x 14 Dowel 2
23 14316 Spacer, M15 Inner Gear 1
24 Y00055 Bearing, 6202 15 x 35 x 11 1
25 50102 Bearing, 6203 17 x 40 x 12 1
26 82407 Bearing, 6204 20 x 47 x 14 1
27 14106 Circlip, M20 1
28 14503 Bearing, 6302 15 x 42 x 13 1
29 14504 Bearing, RNA4905 30 x 42 x 17 1
30 14505 Bushing, Shock Absorbing - 150CC 2
31 14318 Seal, M30 x 40 x 6 1
32 82874 Bearing, 6205 25 x 52 x 15 1
33 14506 Spacer, M25 x 34 x 1 1
34 14319 Circlip, M25 1
35 14320 Circlip, M52 1
36 14321 Clamp, Wire 1
37 14235 Bolt, M6 x 1.00 x 40 FHCS 10

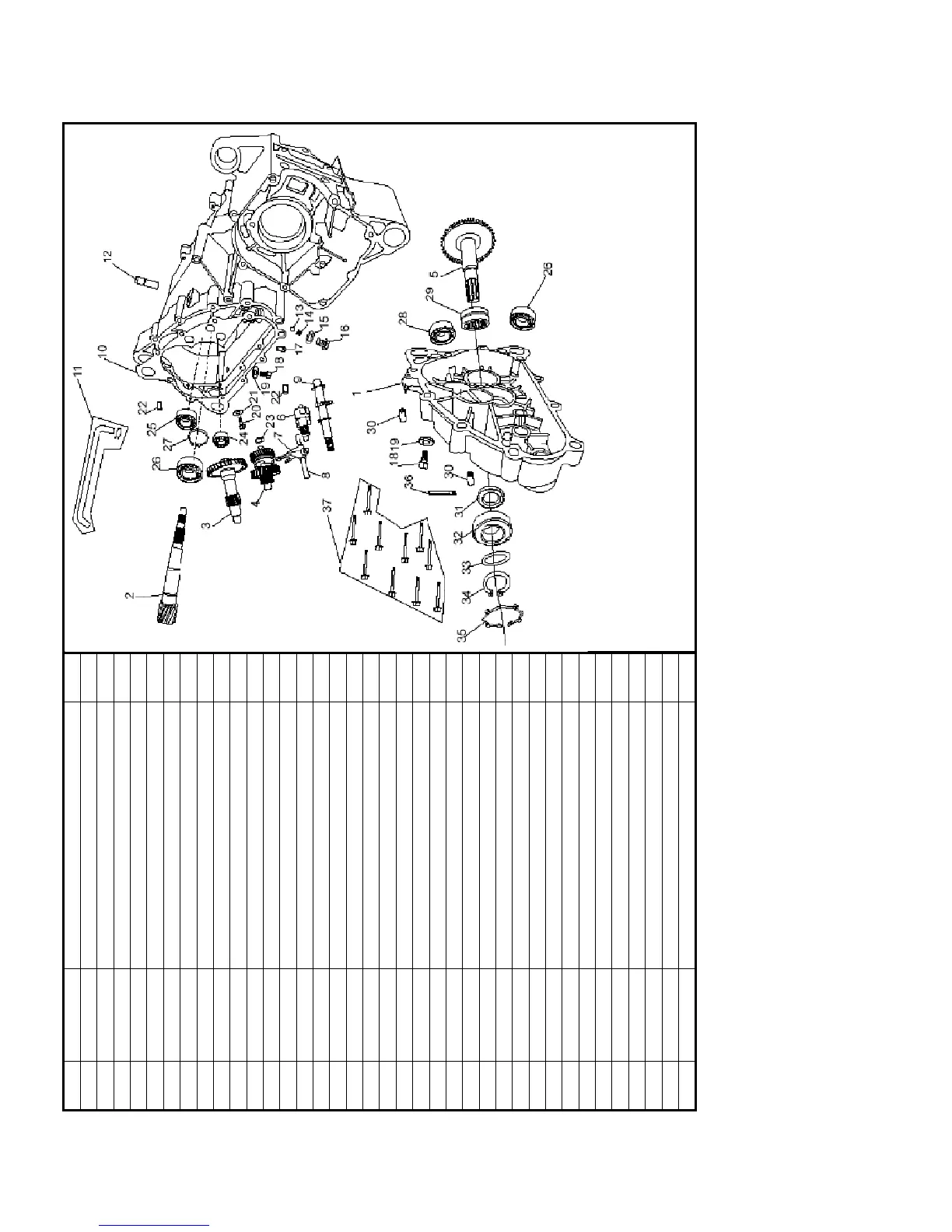

Section 4 - Transmission
10-31-07
ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
