Ref. # Part # Description Qty.
14532-48 Cargo Rack - 6150 Charcoal
14532-47 Cargo Rack - 6150 Silver
14532-50 Cargo Rack - 6150 Aegean Blue
2 14083 Endcap, Bar - 1 1/4" 2
14404-48 Arm, Rack Suppot - 6150 Charcoal
14404-47 Arm, Rack Suppot - 6150 Silver
14404-50 Arm, Rack Supput - 6150 Aegean Blue
4 14239 Bolt, M8 x 1.25 x 20 FHCS 4
5 14088 Nut, M8 x 1.25 Locking Flange 4
6 13871 Cap, Fuel 1
14161 Tank, Fuel - 6150/7150 Charcoal
14533 Tank, Fuel - 6150 Silver
14534 Tank, Fuel - 6150 Aegean Blue
8 14436 Bolt, M8 x 1.25 x 25 FHCS 4
9 14162 Spacer, Fuel Tank 4
10 14163 Bushing, Fuel Tank Mount 4
11 14293 Washer, M8 Flat 4
12 14088 Nut, M8 x 1.25 Locking Flange 4
13 50210 Asm, Auto Fuel Cock 1
14 14164 Line, Fuel #1 1
15 14165 Line, Vacuum #1 1
16 14166 Line, Fuel #2 1
17 14167 Filter, Fuel 1
18 14087 Washer, Concave Clamp 2
19 14086 Bolt, M8 x 1.25 x 55 FHCS 2
20 14439 Bolt, M8 x 1.25 x 40 HHCS 4
21 14088 Nut, M8 x 1.25 Locking Flange 4
22 14171 Slide, Seat 2
23 14466 Nut, Decorative Plastic Flag Mnt. 1
24 14402 Headrest, Black Bar Mount - 6150 2
25 14403 Seat, Black Vinyl Bench - 6150 1
26 14473 Bracket, Shift Cable 1
27 14479 Disc, Shift Control 1
28 14420 Screw, M4 x 0.75 x 31 1
29 14478 Asm, Trans Shift Lever - F/N/R - 150cc 1
30 14464 Flag, Safety 1
31 14465 Bolt, M12 x 1.25 x 30 Flag Mounting 1
32 8778 Harness, Lap Shoulder Rest 2
33 14324 Nut, M12 x 1.25 4
34 14289 Washer, M12 4
35 14451 Bolt, M12 x 1.25 x 25 4
36 14492 Nut, M12 x 1.25 1
37 14493 Nut, M4 x 0.7 1

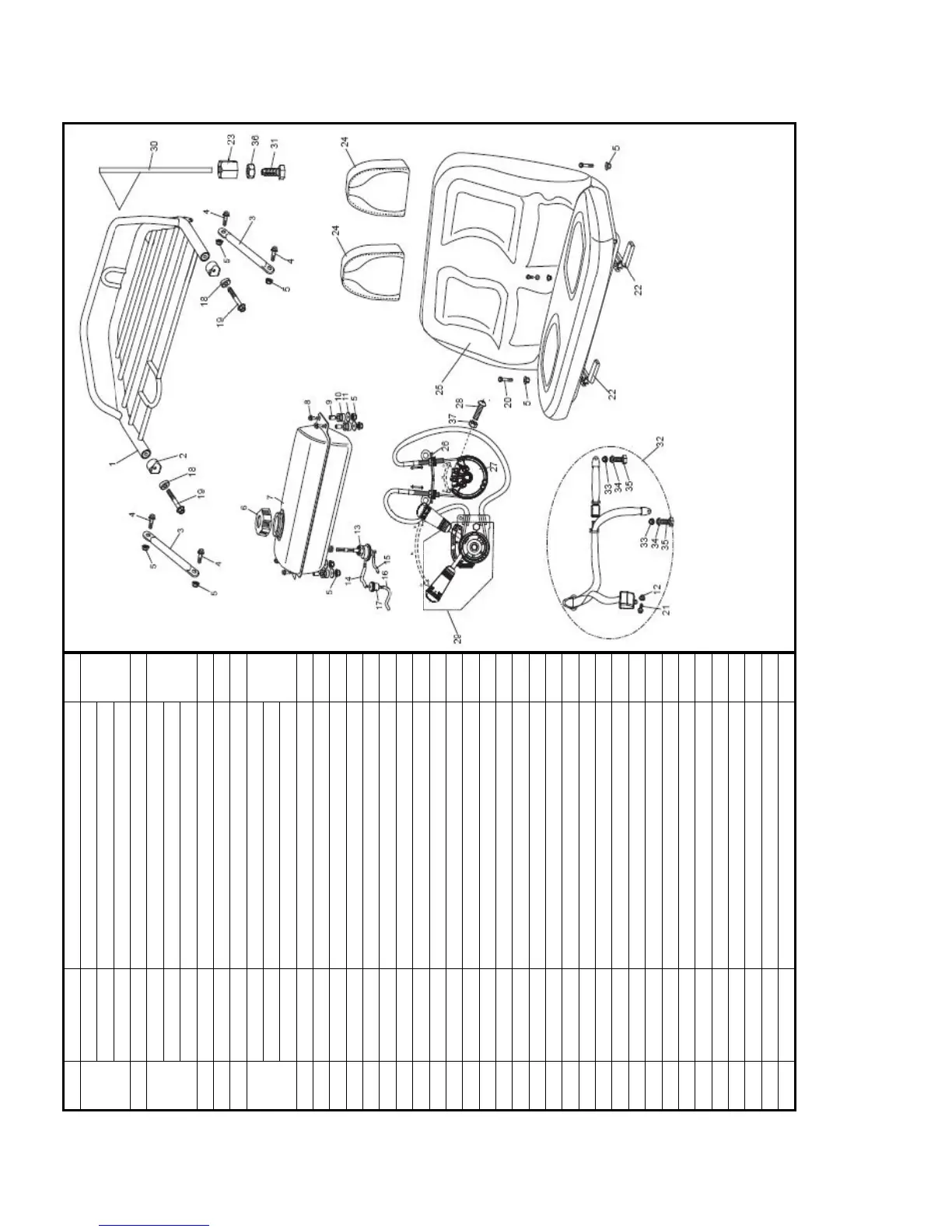

Section 20 - Rear Cargo Rack
17
13
1 1
10-31-07
ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
