Ref. # Part # Description Qty.
1 14324 Nut, M12 x 1.25 Locking Flange 1
2 14289 Washer, M12 Flat ZN 1
3 14467 Bushing, Engine Adj Isolator 1
4 14468 Spacer, Engine Adj Cup 1
5 14469 Spacer, Engine Adj Alignment 1
6 14188 Gasket, Battery Cap - 150cc 1
7 14492 Nut, M12 x 1.25 Hex ZN 1
8 14470 Link, Chain Tensioning - 150cc 1
9 14243 Nut, M10 x 1.25 Locking Flange 1
10 14446 Bolt, M6 x 1 x 45 FHCS 1
11 14471 Spacer, Engine Mounting Link - 150cc 1
14405-48 Asm, Rear Swingarm - 6150 Charcoal
14405-47 Asm, Rear Swingarm - 6150 Sliver
13 14431 Screw, M6 x 1 x 60 PHCS 2
14 14172 Cover, Electrical 1
15 14246 Bolt, M10 x 1.25 x 40 FHCS 4
16 14243 Nut, M10 x 1.25 Locking Flange 5
17 14535 Shock, Rear - 6150 2
18 14324 Nut, M12 x 1.25 Locking Flange 2
19 14191 Bushing, Swingarm Isolator - 150cc 2
20 14452 Bolt, M12 x 1.25 x 60 FHCS 2
21 14372 Bolt, M6 x 1 x 16 FHCS 4
22 14185 Guard, Lower Chain - 150cc 1
23 14189 Battery - YTX12-BS 1
24 14186 Cover, Battery - 150cc 1
25 14177 Spanner, Engine Mount 1
26 14449 Bolt, M10 x 1.25 x 195 HHCS 1
27 14187 Strap, Battery Hold Down - 150cc 1
Section 21 - Rear Swingarm
112
10-31-07

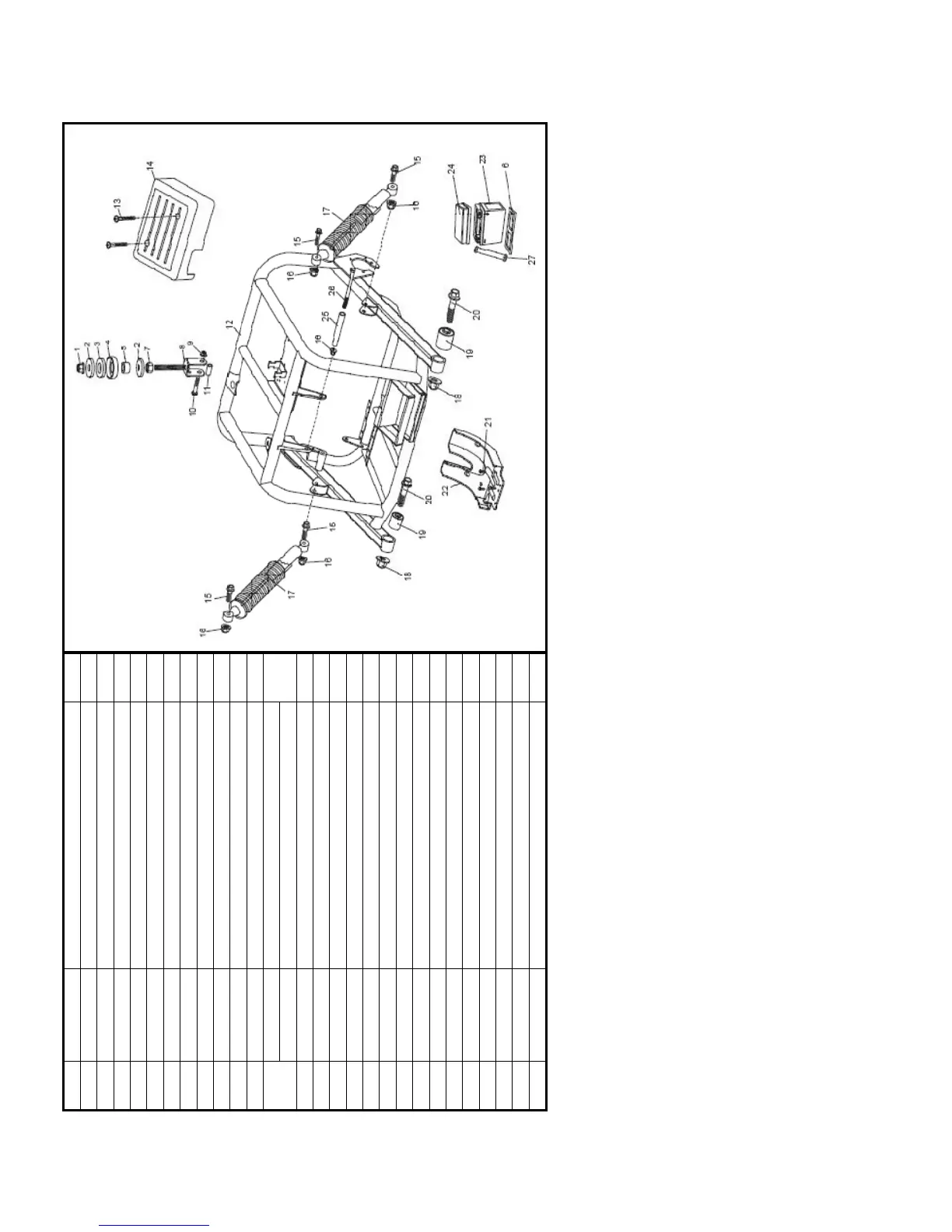

ILLUSTRATED PARTS MANUAL - 6150
PART NUMBER 14570R2
