MODEL 2 (9 AND 10)
9-1 LIFT FUNCTION BUTTON

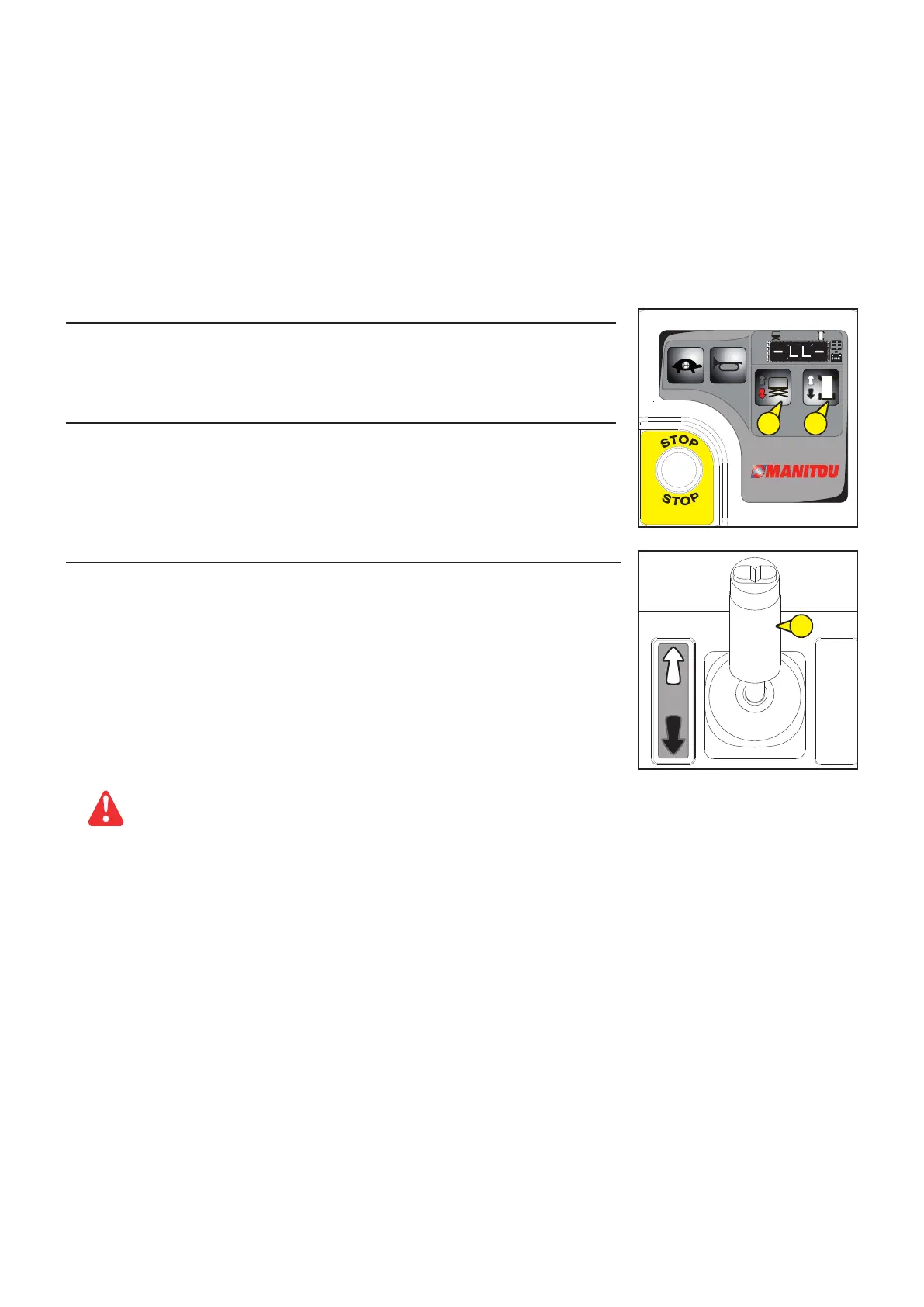

- Push this button (9d) to activate the lift function and follow the instructions paragraph 10.
9-2 DRIVE FUNCTION BUTTON
- Push this button (9e) to activate the drive function and follow the instructions paragraph 10.
10- PROPORTIONAL CONTROL LEVER AND TRANSLATION / LIFTING FUNCTION CONFIRMATION SWITCH
- TRANSLATION : Move the control lever in the direction indicated by the white arrow on the
control panel to move the machine forward in the direction indicated by the white arrow. Move
the control lever in the direction indicated by the black arrow on the control panel to move the
machine forward in the direction indicated by the black arrow.
- LIFTING : Move the control lever in the direction indicated by the white arrow on the control
panel to lift the platform. Move the control lever in the direction indicated by the black arrow
to lower the platform.
- The joystick has a so-called “Dead Man’s” push button. This must be pressed down at the same
time as any movement is instructed. Releasing it stops the movement.
When the lifting platform descends, it must stop at approx. 2.1 m above the
g
round. Ensure that the area under the lifting platform is clear and free of any
obstacles before continuing the manoeuvre. To continue to lower the lifting
platform, release the control lever and then operate it again 5 seconds later.
