3-9
Perform the basket control checking of the platform according to your basket control model (model 1 or 2).

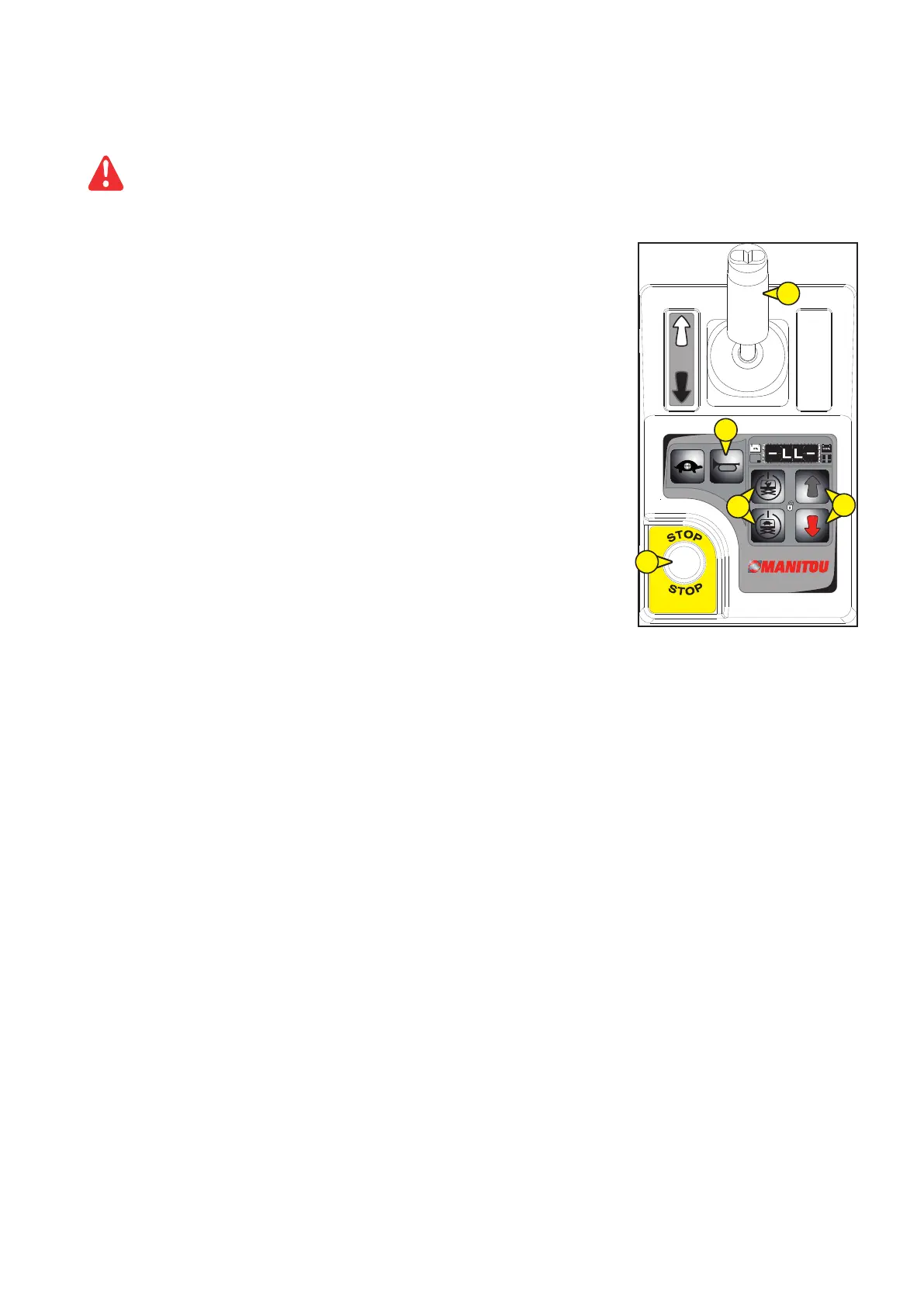

- CHECKING THE BASKET CONTROLS:
Emergency Stop (1)
Push the lifting platforms red Emergency Stop knob to the OFF position.
> Result: no function should be active.
Buzzer (2)
Pull the red Emergency Stop knob to the ON position.
Press the buzzer button.
> Result: the buzzer should sound.
Function validation switch (3)
Do not hold the control lever’s function validation switch.
Slowly move the control lever in the direction indicated by the black arrow.
> Result: no function should be active.
Lifting confirmation buttons (4)
Do not press the high speed or slow speed lifting confirmation buttons.
Press the lifting platform lifting and descent button.
> Result: the lifting function should not be active.
Do not press the lifting platform lifting and descent button.
Press the high speed or slow speed lifting confirmation button.
> Result: the lifting function should not be active.
Lifting /descent functions (5)
Hold down the high speed lifting confirmation button.
Press the lifting platform lifting button.
> Result: the lifting platform should rise. The anti-pothole protection systems should deploy.
Release the high speed lifting confirmation button or the lifting platform lifting button.
> Result: the lifting platform should stop rising.
Hold down the high speed lifting confirmation button.
Press the lifting platform lowering button.
> Result: the lifting platform should descend. The descent alarm should sound when the lifting platform is descending.
Release the high speed lifting confirmation button or the lifting platform lowering button.
> Result: the lifting platform should stop descending.
Hold down the slow speed lifting confirmation button.
Press the lifting platform lifting button.
> Result: the lifting platform should rise. The anti-pothole protection systems should deploy.
Release the slow speed lifting confirmation button or the lifting platform lifting button.
> Result: the lifting platform should stop rising.
Hold down the slow speed lifting confirmation button.
Press the lifting platform lowering button.
> Result: the lifting platform should descend at high speed. The descent alarm should sound when the lifting platform is
descending.
Release the slow speed lifting confirmation button or the lifting platform lowering button.
> Result: the lifting platform should stop descending.
When the lifting platform descends, it should stop at approx. 2.1m above the ground. Ensure that the area under the lifting
platform is clear and free of obstacles before continuing with the manoeuvre. To continue the lifting platforms descent, release
the control lever and then operate it again after 5 seconds.
12
4
3
5
1
3
2
4
647369 (01/03/2017)
78/100 SEC 2 / 120 SE 2
