H3 - Platform
SLINGING
- Take note of the position of the platform’s centre of gravity for lifting it.
- Insert hooks in the anchoring points provided for this purpose.
- Lower the platform fully. Ensure that the extension, the controls and the bonnets are secured. Remove any elements not fixed onto the
machine.

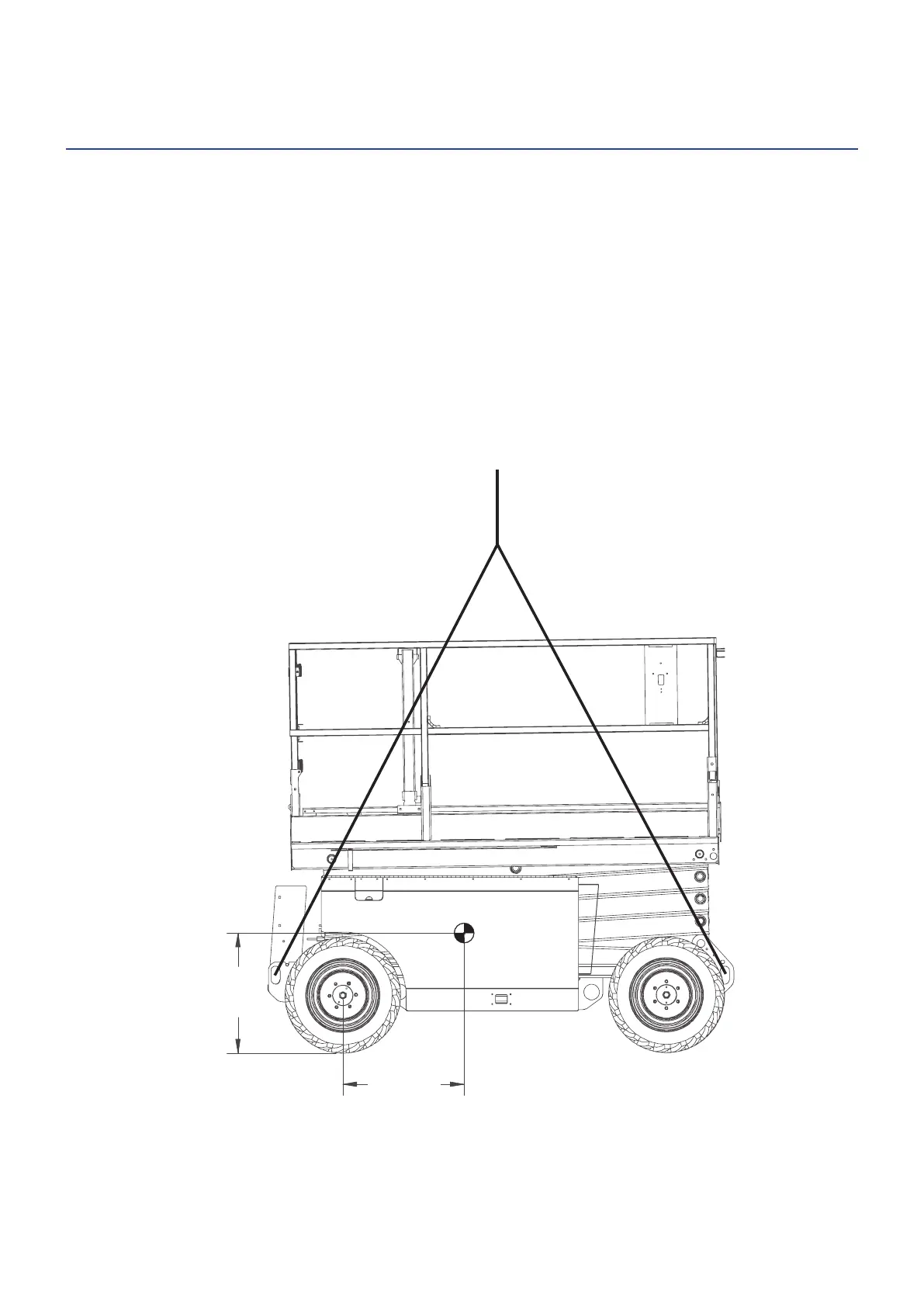

- Determine the machine’s centre of gravity using the table and the illustration on this page.
- Attach the tying systems only to the specified lifting points on the machine.
- Adjust the whole system avoid damaging the machine and to keep it level.
Centre of gravity Axis X Axis Y
100 SC-2 108,1 cm 78,5 cm
120 SC-2 108,2 cm 79,8 cm
140 SC 98,6 cm 79 cm
Axe Y
Axe X
Axis Y
Axis X
