Manitou 120 SC-2 User Manual

3-23

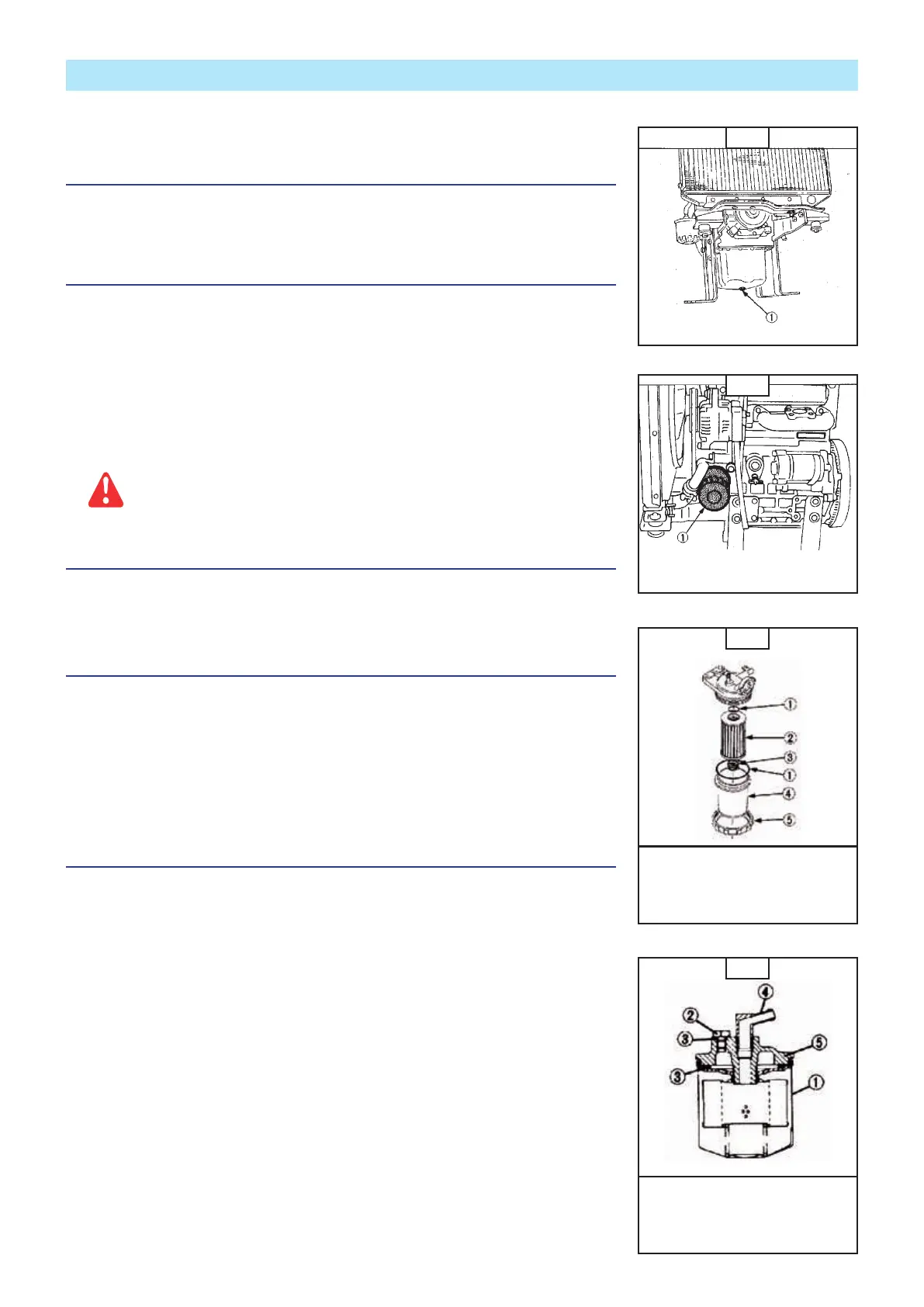

D  EVERY 500 HOURS OF OPERATION
Perform the operations described above as well as the following operations.
D1 - Air filter cartridge
REPLACE
- See the dismantling procedure § B1.
D2 - Engine oil
DRAIN  REPLACE
- Change the oil after the first 50 hours of operation and every 500 hours thereafter.
- Set the platform on a horizontal surface. Always switch off the engine before changing the
engine oil.
- Remove the drain plug located on the lower part of the engine (Fig. D2).
- Drain out all the used oil.
- Add new engine oil up to the top mark on the dipstick.
Dispose of the drained oil in an environmentally friendly manner.
T
ighten the oil filter only by hand and then lock it by turning it a quarter turn
with the filter wrench.
D3 - Engine oil filter
REPLACE
- Unscrew and replace the oil filter when draining the engine oil.
D4 - Fuel filter cartridge
REPLACE
- Replace the petrol filter cartridge with a new one.
- Apply a fine layer of fuel oil to the seal and tighten the cartridge by hand
- Vent the air.
- Periodically replacing the fuel filter cartridge prevents premature wear on the plungers for the
injection pump and the injector.
D5 - Injectors
CONTACT YOUR DEALER
*(Contact your dealer)
D2
D3
(1) Robinet de purge d’huile
(1) Oil filter
D4-1
(1) O-ring
(2) Filter element
(3) Spring
(4) Filter housing
(5) Segment screw
D4-2
(1) Fuel filter cartridge
(2) Vent plug
(3) O-ring
(4) Hose seal
(5) Cover
(1) Drain plug
647367 (01/03/2017) 100/120 SC-2 / 140 SC
