2-15
SAFETY

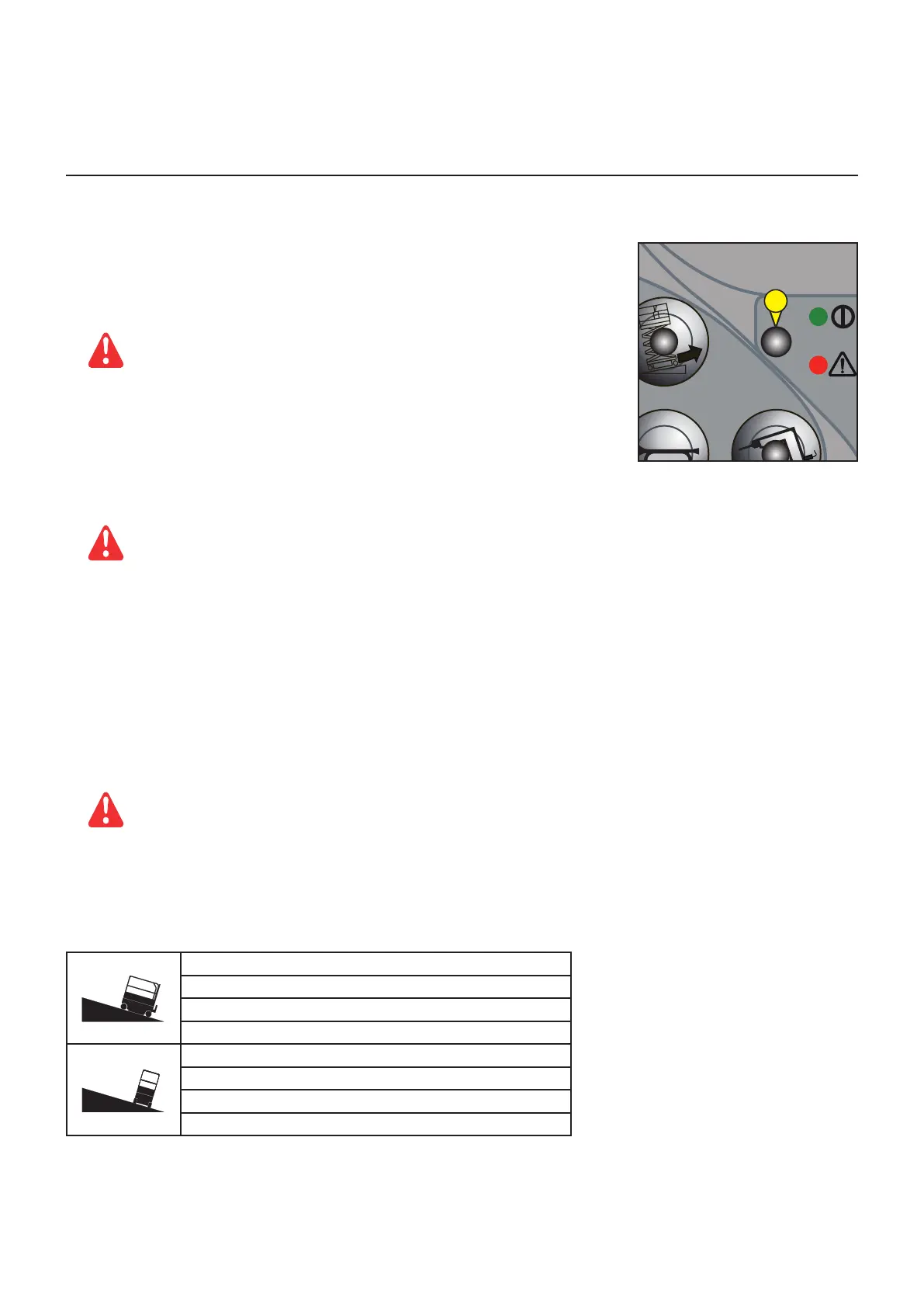

TILT
When the platform reaches the maximum authorised tilt (see the CHARACTERISTICS Section),
the led (24*) on the basket console will show red. Also, the buzzer for the platform’s controls will
sound intermittently.
Any “AGGRAVATING” lifting movements are prohibited as a safety measure.
To take command of the controls again, only make non-aggravating movements:
- r
eposition the platform on a more level surface so that you can make lifting
and extension movements.
OVERLOAD
When the platform reaches the authorised weight limit (see the CHARACTERISTICS Section) for
the basket, the led (24*) on the basket console flashes. The buzzer for the platform’s controls also
sounds. All movements are prohibited as a safety measure.
To take command of the controls again:
- relieve the weight on the basket by removing the item or items causing the overload,
- Push and then pull the yellow Emergency Stop knob to re-initialise the system.
- If the platform is still overloaded, the indicator light will continue to flash.
OR,
- ask someone on the ground to perform a manually controlled basket descent (see the end of “Rescue procedure” in that
Section, and also “Safety stickers” in Section 1 “Safety instructions and advice”).
*: the numbers indicated above also correspond to those used in the descriptions of these components over the following
pages.
OVERLOAD RECOVERY
If the ground controls LCD screen displays OVERLOAD RECOVERY, the emergency lowering system has been used while the
platform was overloaded.
For information on how to reset this message, please consult your dealer.
DRIVING ON A SLOPE
Note any longitudinal and lateral slopes permissible for the platform and determine the percentage inclination.
Do not drive the machine over a slope with an inclination higher than the maximum longitudinal and lateral inclinations permissible for
the machine. The permissible inclination applies to the platform in the folded position.
Maximum slope rating, stowed position:
100 SC-2 40% (22°)
120 SC-2 35% (19°)
140 SC 35% (19°)
Maximum side slope rating, stowed position:
100 SC-2 40% (22°)
120 SC-2 35% (19°)
140 SC 35% (19°)
Remarks: the permissible inclination is subject to the condition of the ground and there being suitable traction.
24
647367 (01/03/2017) 100/120 SC-2 / 140 SC
