Manitou A Series Operator's Manual

3 - 23
D4
D3 - DRY AIR FILTER CARTRIDGE
CHANGE
In case of use in a heavily dust laden atmosphere, there are pre-filtration
cartridges (See FILTERS CARTRIDGES AND BELTS in SECTION 3 -
MAINTENANCE). Also, checking and cleaning the cartridge must be
increased (up to 250 hours in a heavily laden dust atmosphere with pre-
filtration).
- Open the I.C. engine compartment.

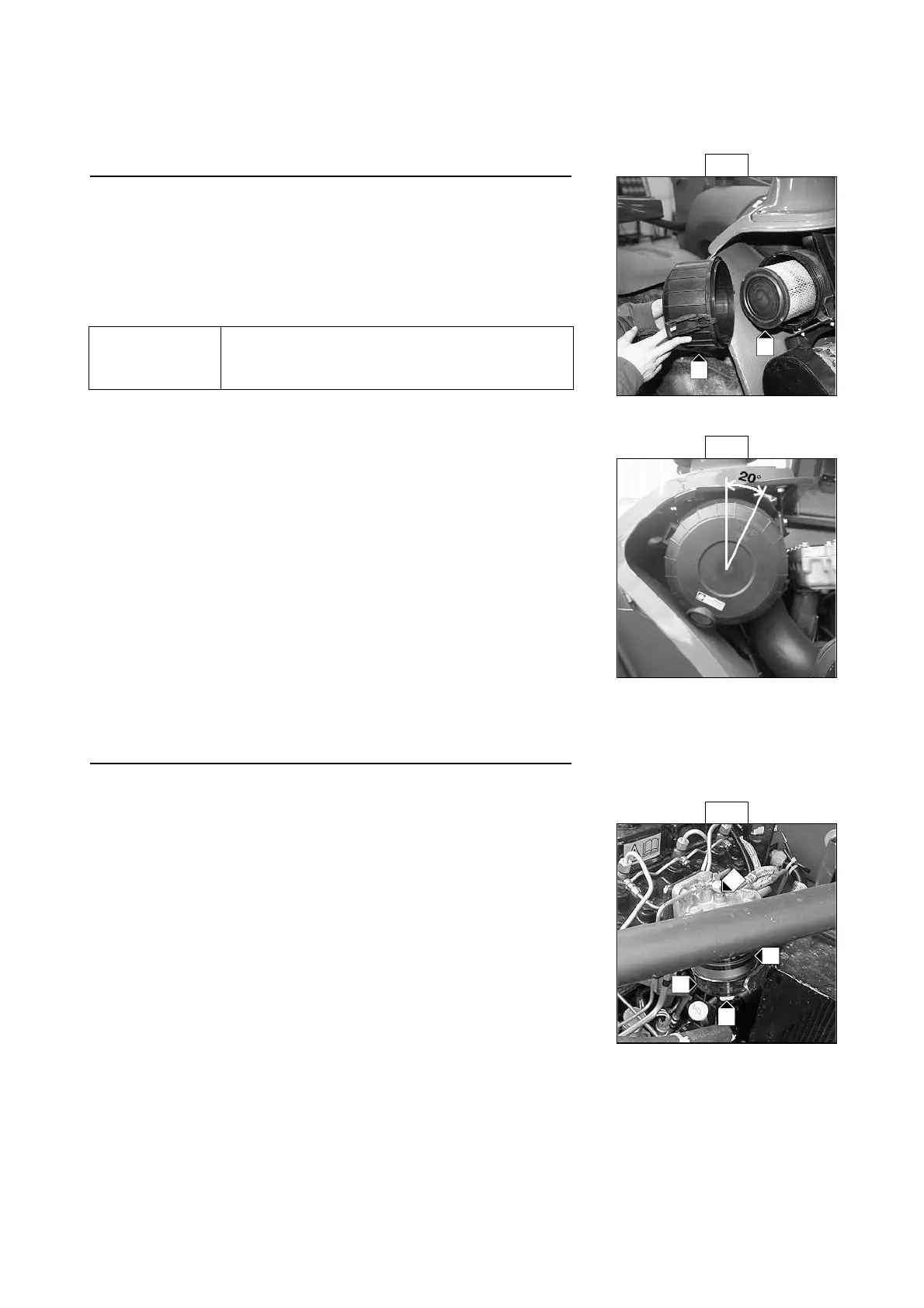

- Loosen the bolts and remove cover 1 (Fig. D3/1).
- Gently remove the cartridge 2 (Fig. D3/1), taking care to avoid spilling the
dust.
- Leave the safety cartridge in place.
- The following parts must be cleaned with a damp, clean lint-free cloth.
• The inside of the filter and cover.
• The inside of the filter inlet hose.
• The gasket surfaces in the filter and in the cover.
- Check pipes and connections between the air filter and the I.C. engine and
the connection and state of the clogging indicator on the filter.
- Before mounting check the state of the new cartridge (See FILTERS
CARTRIDGES AND BELTS in SECTION 3 - MAINTENANCE).
- Introduce the cartridge into the filter axis and push it in, pressing the edges
and not the middle.
- Reassemble the cover, guiding the valve (Fig. D3/2).
D4 - F
UEL FILTER CARTRIDGE
CHANGE
- Open the I.C. engine compartment.
- Carefully clean the exterior of the filter and bracket to prevent the dust from
entering the system.
- Place a receptacle under the tank and empty using drain plug 1 (Fig. D4).
- Unscrew locking screw 2 (Fig. D4).
- Remove housing 3 (Fig. D4) and discard cartridge 4 (Fig. D4) as well as the
seals of the cartridge.
- Clean the inside of the filter head and the housing using a brush immersed
in clean diesel oil.
- Refit the assembly with a new cartridge and new seals (See FILTERS
CARTRIDGES AND BELTS in SECTION 3 - MAINTENANCE).
- If necessary, bleed the fuel circuit (See G1 - FUEL SYSTEM in SECTION 3
- MAINTENANCE).
1
2
4
3
D3/1
D3/2
1
2
Change the cartridge in a clean location, with the I.C.
engine stopped. Never run the I.C. engine with the air
filter removed or damaged.
IMPORTANT
